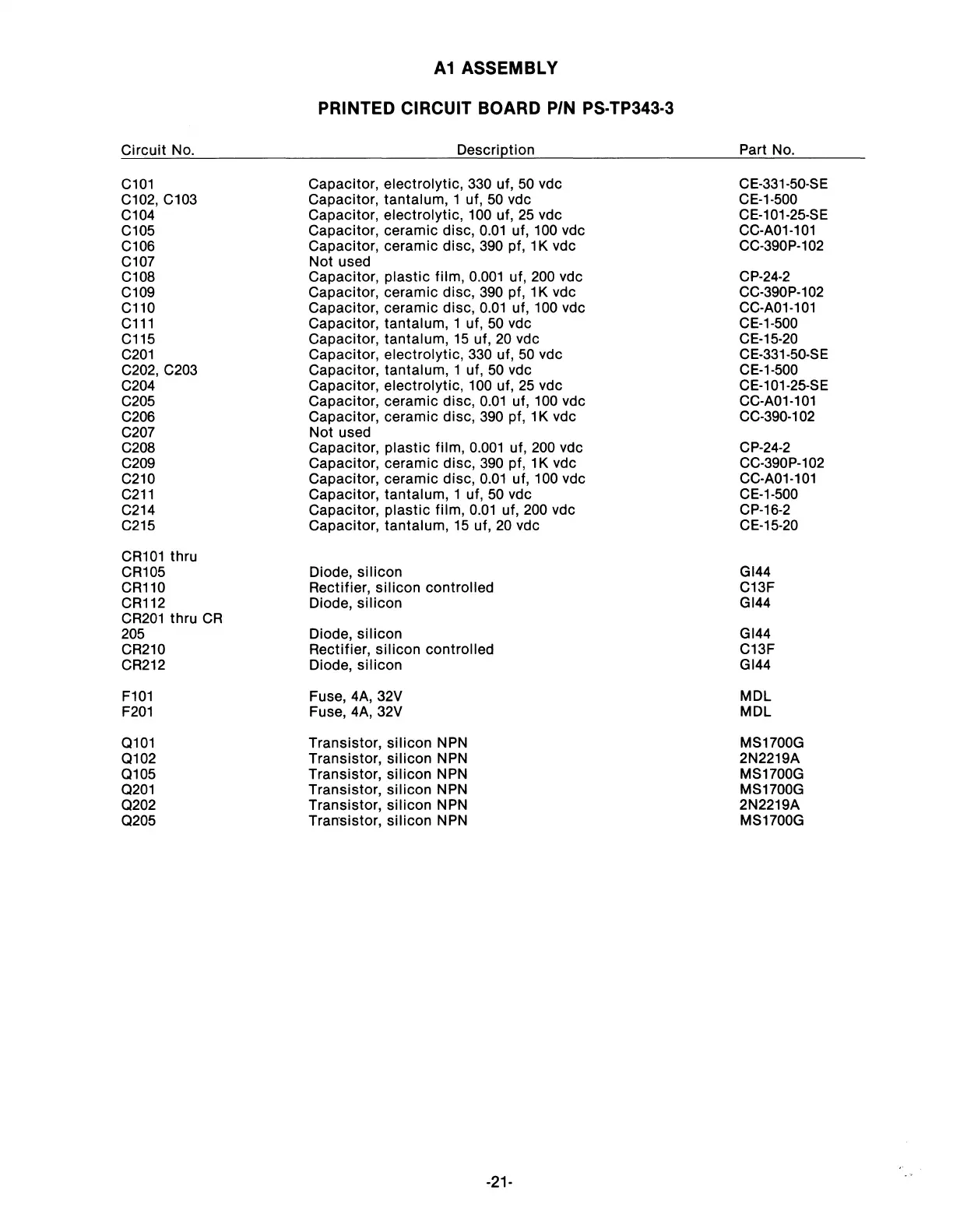

A1 ASSEMBLY
PRINTED CIRCUIT BOARD P/N PS-TP343·3
Circuit No. Description
Part No.
C101
Capacitor, electrolytic, 330 uf, 50 vdc CE-331-50-SE
C102, C103
Capacitor, tantalum, 1 uf, 50 vdc
CE-1-500
C104
Capacitor, electrolytic, 100 uf, 25 vdc CE-101-25-SE
C105
Capacitor, ceramic disc, O.Q1 uf, 100 vdc
CC-A01-101
C106
Capacitor, ceramic disc, 390 pf, 1 K vdc CC-390P-102
C107 Not used
C108
Capacitor, plastic film, 0.001 uf, 200 vdc CP-24-2
C109
Capacitor, ceramic disc, 390 pf, 1 K vdc
CC-390P-102
C110
Capacitor, ceramic disc, 0.01 uf, 100 vdc CC-A01-101
C111 Capacitor, tantalum, 1 uf, 50 vdc CE-1-500
C115 Capacitor, tantalum, 15 uf, 20 vdc
CE-15-20
C201 Capacitor, electrolytic, 330 uf, 50 vdc CE-331-50-SE
C202, C203 Capacitor, tantalum, 1 uf, 50 vdc
CE-1-500
C204
Capacitor, electrolytic, 100 uf, 25 vdc CE-101-25-SE
C205
Capacitor, ceramic disc, O.Q1 uf, 100 vdc
CC-A01-101
C206
Capacitor, ceramic disc, 390 pf, 1 K vdc CC-390-102
C207 Not used
C208
Capacitor, plastic film, 0.001 uf, 200 vdc
CP-24-2
C209
Capacitor, ceramic disc, 390 pf, 1 K vdc
CC-390P-102
C210
Capacitor, ceramic disc, 0.01 uf, 100 vdc CC-A01-101
C211
Capacitor, tantalum, 1 uf, 50 vdc CE-1-500
C214 Capacitor, plastic film, 0.01 uf, 200 vdc
CP-16-2
C215 Capacitor, tantalum, 15 uf, 20 vdc CE-15-20
CR101 thru
CR105
Diode, silicon Gl44
CR110
Rectifier, silicon controlled C13F
CR112 Diode, silicon
Gl44
CR201 thru CR
205 Diode, silicon
Gl44
CR210
Rectifier, silicon controlled C13F
CR212
Diode, silicon Gl44
F101 Fuse,4A,32V
MDL
F201 Fuse,4A,32V
MDL
0101
Transistor, silicon NPN MS1700G
0102 Transistor, silicon NPN 2N2219A
0105
Transistor, silicon NPN
MS1700G
0201 Transistor, silicon NPN
MS1700G
0202
Transistor, silicon NPN 2N2219A
0205
Tran·sistor, silicon NPN MS1700G
