C-Monster Controller Battery Replacement
(Continued)

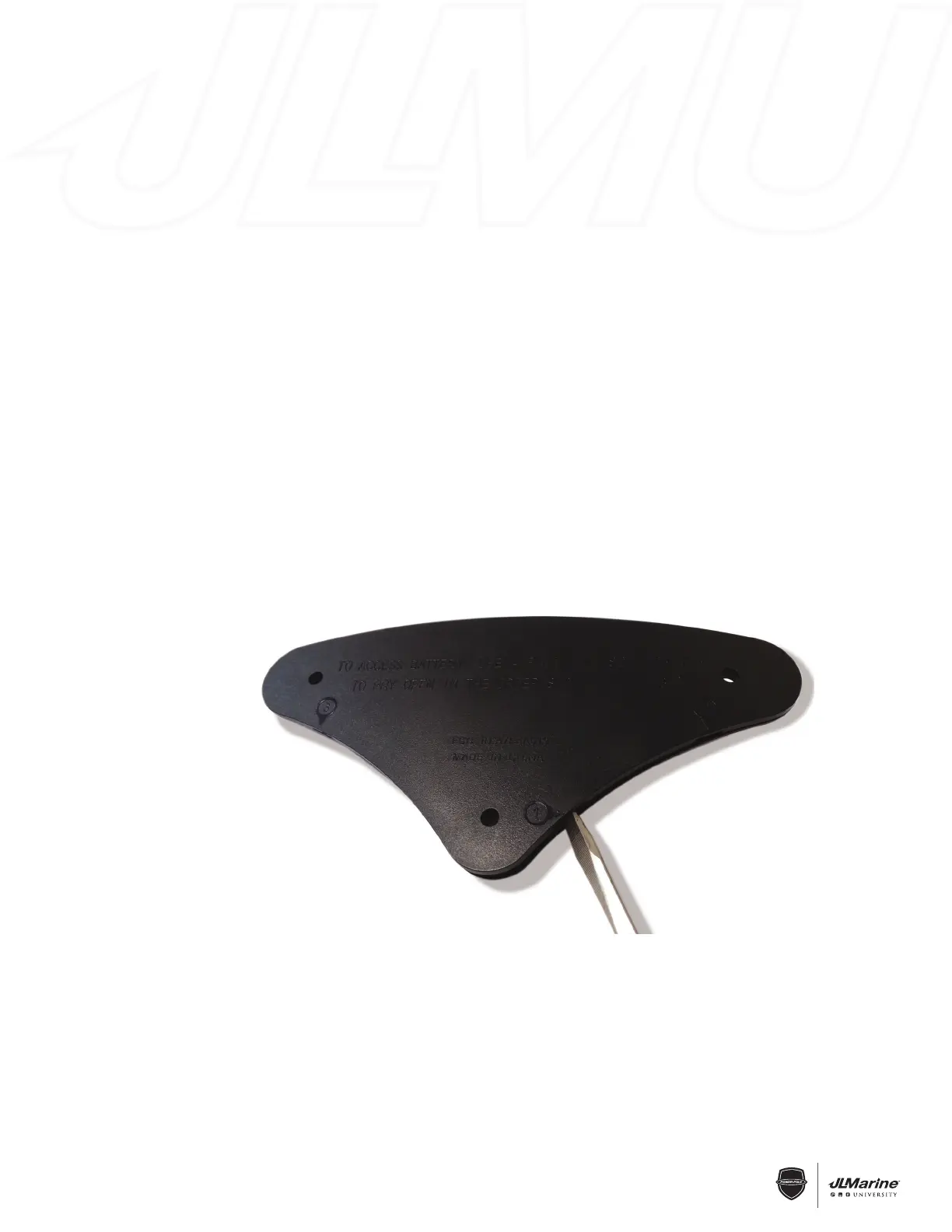

ADVANCED FOOT SWITCH:
STEP 1 Remove the three #6 x 3/4” pan head Screws with a #2 Phillips-Head Screwdriver and remove
the Foot Switch and its Rubber Base from the Vessel’s surface.
STEP 2 Take the Foot Switch and its base to a dry location and separate the Foot Switch and Rubber
Base with a flat-blade Screwdriver.
STEP 3 Thoroughly dry the Foot Switch and then remove the seven Screws on its underside with a #1
Phillips-Head Screwdriver.
STEP 4 Lift the Cover off of the Foot Switch and remove the Circuit Board.
STEP 5 Replace the battery with any CR2032 3V Lithium Coin Battery.
STEP 6 Inspect the inside of the Foot Switch Case thoroughly for signs of moisture as well as damage
to the Rubber Seals. If the Rubber Seals appear to be damaged, or of a substantial amount of
moisture is found, please contact a member of our Customer Service Team. (813-689-9932
option 2)
NOTE: If needed, a hair dryer may be used to dry residual moisture in the foot switch case.
STEP 7 Assemble and install the Foot Switch in the reverse order.
SECTION 1.10 – Electronics & Controllers
