Power-Pole CM2 HPU - 1.1 HPU Indicator Light Guide

4
WARRANTY
CENTER
C
E
R
T
I
F
I
E
D
SECTION 1.1 – Electronics & Controllers
LED
PROGRAM button

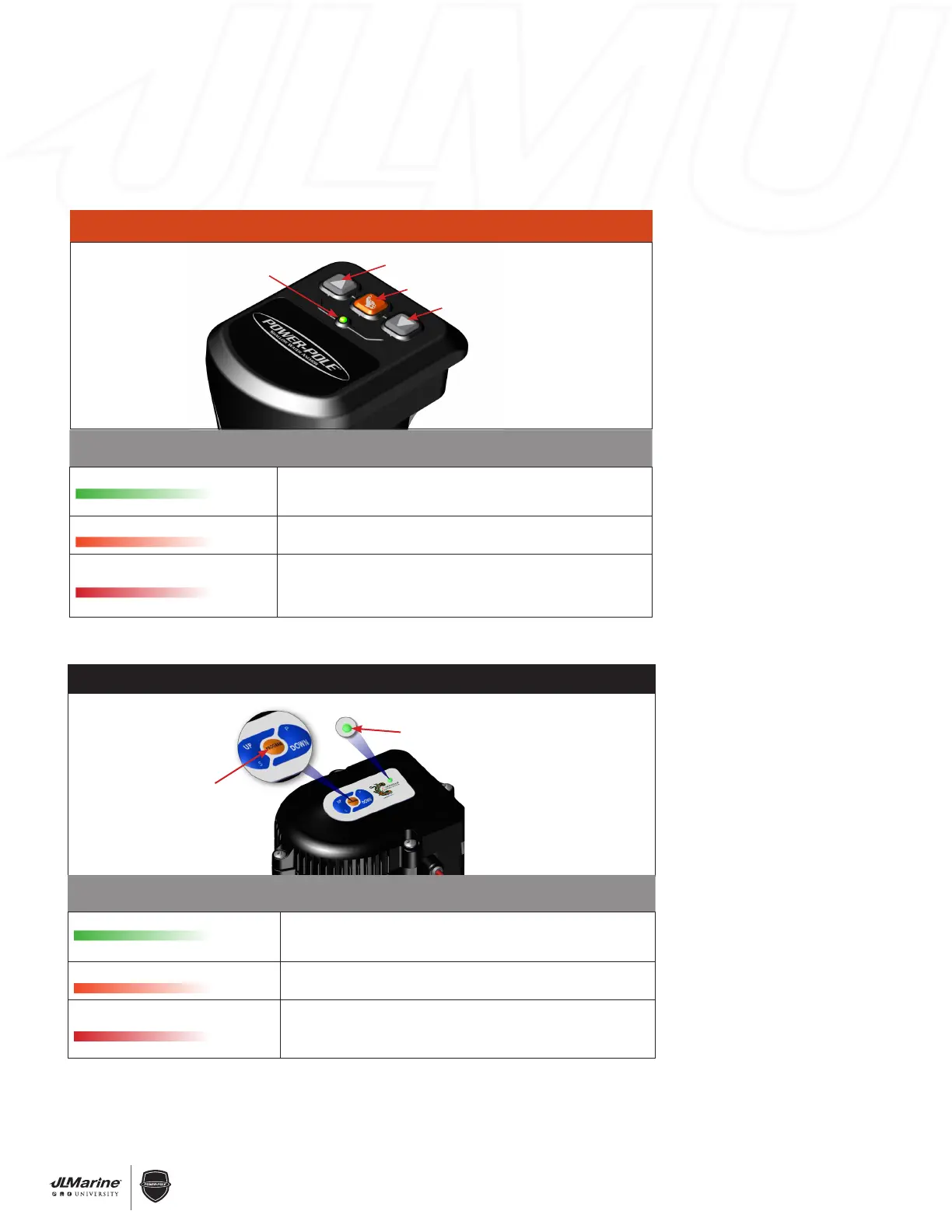

C-Monster 1.0: Indicator Light Guide
LIGHT
INDICATION
Flashing GREEN Light
NORMAL: System has proper voltage (11.3V – 16.4V).
Flashing ORANGE Light
LOW: System has low voltage (10.3V – 11.2V).
Flashing RED Light
WARNING: System has low voltage (10.2V or less).
NOTE: When voltage is below 8.2V or above 16.5V
the unit will not operate.
C-Monster 2.0: Indicator Light Guide
LIGHT
INDICATION
Flashing GREEN Light
NORMAL: System has proper voltage (11.9V – 16.4V).
Flashing ORANGE Light
LOW: System has low voltage (10.8V – 11.8V).
Flashing RED Light
WARNING: System has low voltage (10.7V or less).
NOTE: When voltage is below 6V or above 16.5V
the unit will not operate.
LED
DOWN button
PROGRAM button
UP button
HPU (Hydraulic Pump Unit) Indicator Light Guide
