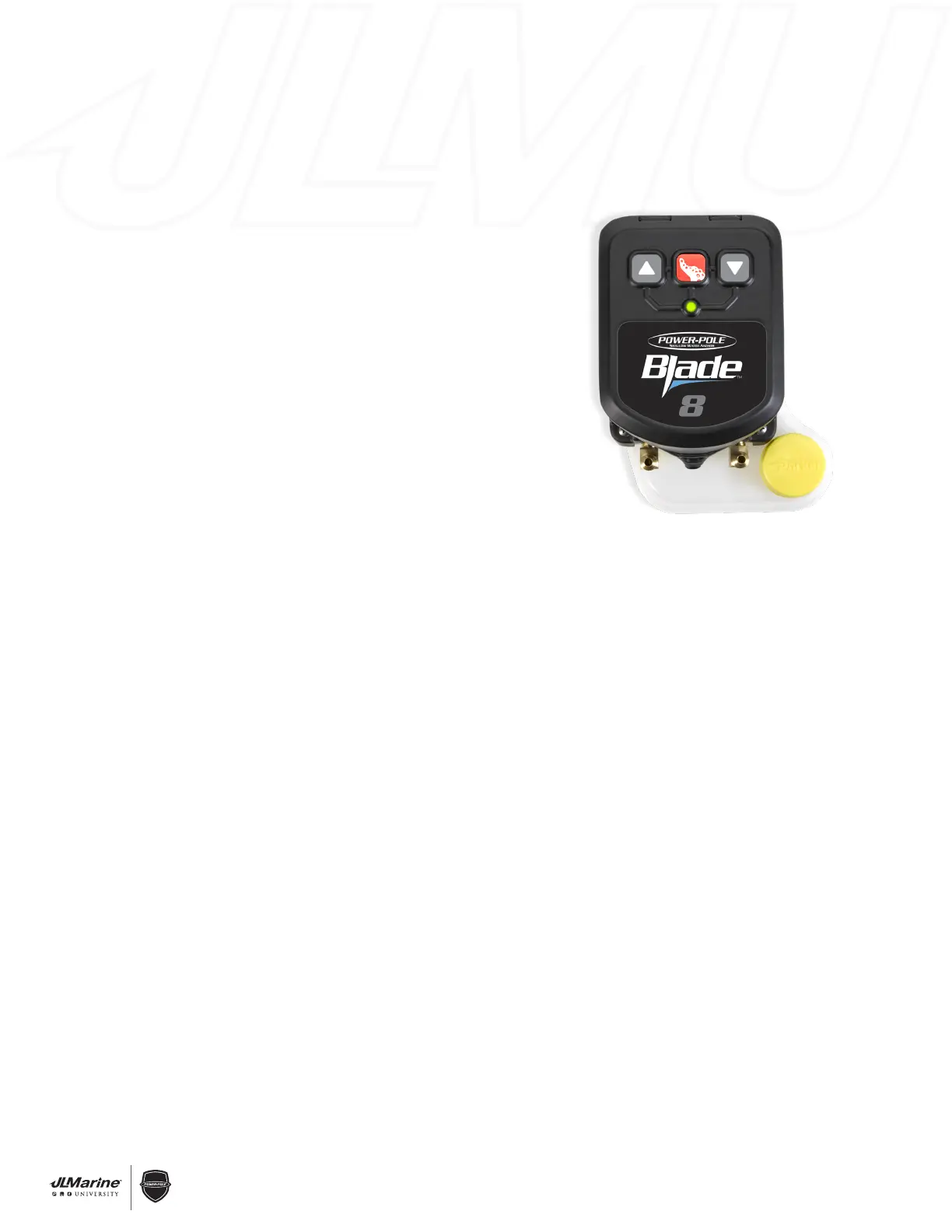

Power-Pole Priming Procedure
STEP 1 Connect the RED fuse holder ring terminal to the main battery
cut-off switch and the black ring terminal to the negative post on
the cranking battery. The HPU will make a charge audio ID tune
and the LED indicator light will begin flashing GREEN.
STEP 2 Manually place the Power-Pole anchor in the deployed position.
STEP 3 Using the Advanced Surface Mount Switch set to
SLOW speed, hold the DOWN button until the red LED on
the dash switch stops flashing and the pump stops
running. (Approximately 20 sec.) Repeat this process two
more times. See Section 1.9 C-Monster Controller
Programming & Operation
NOTE: The HPU will have a high pitch whining sound while priming until
the air has dissipated from hydraulic fluid.
STEP 4 Check the fluid level in the reservoir and add if necessary.
STEP 5 Hold the up button until the RED LED on the Dash Switch stops
flashing and the pump stops running. (Approximately 20 sec.)
Repeat this process two more times or until the Power-Pole anchor
is fully retracted.
STEP 6 With the Power-Pole anchor in the retracted state hold the DOWN button until the RED
LED on the Dash Switch stops flashing and the pump stops running. Then hold the UP
button until the RED LED on the Dash Switch stops flashing and the pump stops running.
Repeat this step once.
STEP 7 Set the dash switch to MEDIUM speed.
STEP 8 Hold the DOWN button until the RED LED on the Dash Switch stops flashing and the
pump stops running. Then hold the UP button until the RED LED on the Dash Switch stops
flashing and the pump stops running. Repeat this step once.
STEP 9 With the Power-Pole anchor in the retracted state manually apply force to attempt to
deploy the Power-Pole anchor. If the Power-Pole anchor does not stay in the retracted state
repeat STEP 8 until it does.
STEP 10 Once on the water navigate to an area that is deep enough to fully deploy your Power-
Pole anchor without it touching the bottom.
STEP 11 Using the Dash Switch set to MEDIUM speed, fully deploy and retract the Power-Pole
anchor SIX times.
STEP 12 Your Power-Pole anchor should be completely primed at this point, but if you suspect it
isn’t, repeat Step 11 until it is or contact JL Marine System’s Inc. for Customer Service at
813-689-9932 Option 2.
SECTION 2.6 – Hydraulic Systems
