Power Probe III User Manual

16
Power Probe 3 Specications
DC 0 – 70V + 1 digit
P-P 0 – 70V
Frequency response of tone pass through
10Hz to greater than 10 Khz
PP display
15Hz Square Wave
35Hz Sine Wave
Power Probe Mode – Continuity to ground
First level – display is enabled less than 20K
Second level – green LED is enabled less than 2K
– & + Peak Detector Response
Single event capture less than 200ms pulse width
Repetitive events less than 1ms pulse width
Peak to Peak Mode
0 – 70V + 1 digit
4Hz to over 500Khz Square Wave input
4Hz to over 250Khz Sine Wave input
Threshold for PPAC/Audible passthrough
Circuit Breaker
8 amp thermal response – Manual reset

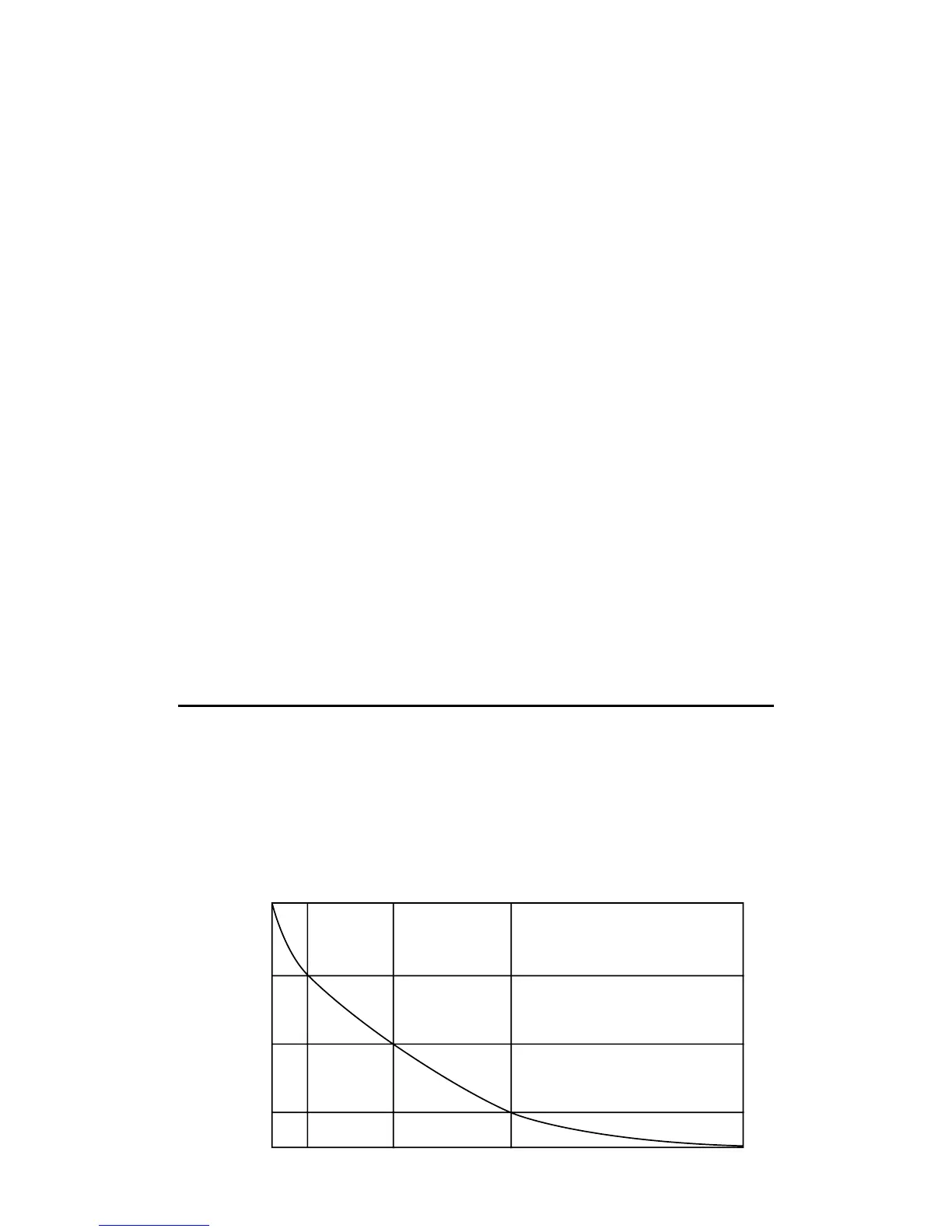

Typical Response
8 amp 10 amps 15 amps 25 amps Short Circuit
No trip 20 min. 6 sec. 2 sec. 0.3 sec.
.1 0.3 2 sec. 6 sec. 20 min.
Short
Circuit
25 amps
15 amps
10 amps
8amps

Power Probe III Specifications

General

Brand	Power Probe
Model	III
Category	Measuring Instruments
Language	English
