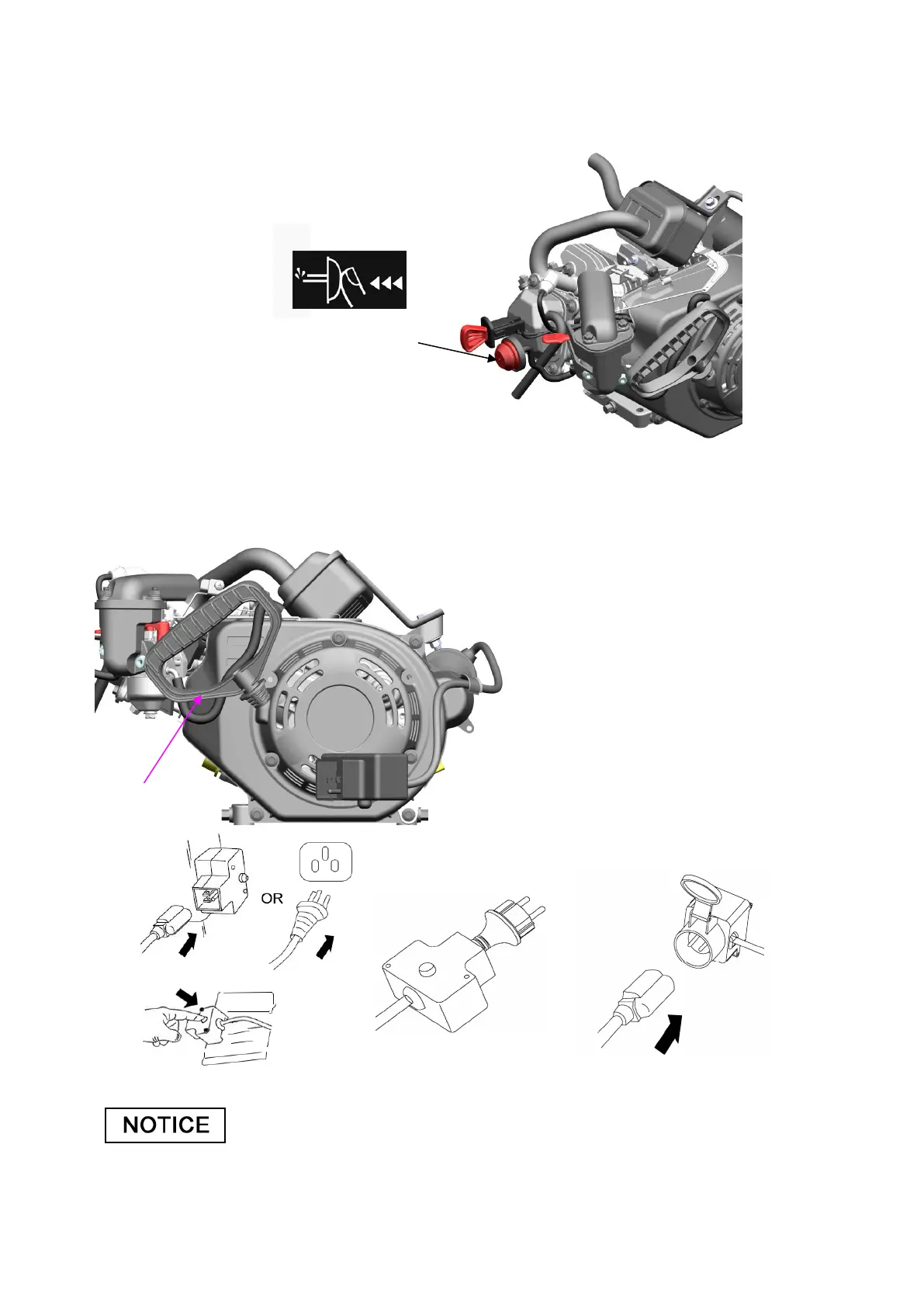

4. Operate the starter.
RECOIL STARTER (all engine types):
Pull the starter grip lightly until you feel resistance, then pull briskly.
Return the starter grip gently.
ELECTRIC STARTER (some engine types):
Plug the plug cap in electrical source carefully, then press the starter.
When the engine running, pull out the plug cap from the electric source.
To prevent damaging the electric starter, run it no ,more than 10
times at intervals of 5 seconds on, then 5 seconds off .If the engine
does not start after this series of attempts, allow the starter to cool
STARTER GRIP
120V OR 230V ELECTRIC STARTER
Priming Pump

Power smart 196cc Specifications

General

Type	Single cylinder, 4-Stroke, Forced Air Cooling, OHV
Bore×Stroke(mm)	68×54
Displacement(cc)	196
Net power(kW/3600rpm)	4.1
Net torque (N·m/rpm)	12.4/2500
Fuel consumption (g/kW·h)	≤395
Speed Fluctuating Ratio	≤10%
Compression Ratio	8.5:1
P.T.O shaft rotation	Anti-clockwise(from P.T.O. side)
Oil capacity(L)	0.6
Noise(≤)	70dBA
Lubricating mode	Splash
Starting Mode	Recoil start / Electric starting
Valve Clearance	input valve：0.10~0.15mm, output valve：0.15~0.20mm
Spark plug clearance	0.7~0.8mm
Igniting Mode	Transistorized magneto Ignition
Air cleaner	No filter

Weight and Dimensions

Dimension(L×W×H) (mm)	382×354×276
