for at least 40 minutes before trying to start it again. If the engine still does not
start, take the engine to an Authorized Service Dealer for service.
6. The choke lever has been moved to the CLOSE position to start the engine, gradually
move it to the OPEN position as the engine warms up.
starting the Engine, carefully note the following:
Due to engine work in low-temprature,engine can marm up more
than 30 s .If inconsistent engine speeds are experienced when
Choke Lever is rotated OPEN Position:
1) Move Choke Lever to Mid-Point Between OPEN and CLOSE Posintions and
allow Engine to develop additional operating heat.
2) After Engine has warmed up,move Choke Lever to OPEN Posintion
STOPPING THE ENGINE
To stop the engine in an emergency, simply pull out the engine switch. Under normal
conditions, use the following procedure.
1. Pull out the engine switch.

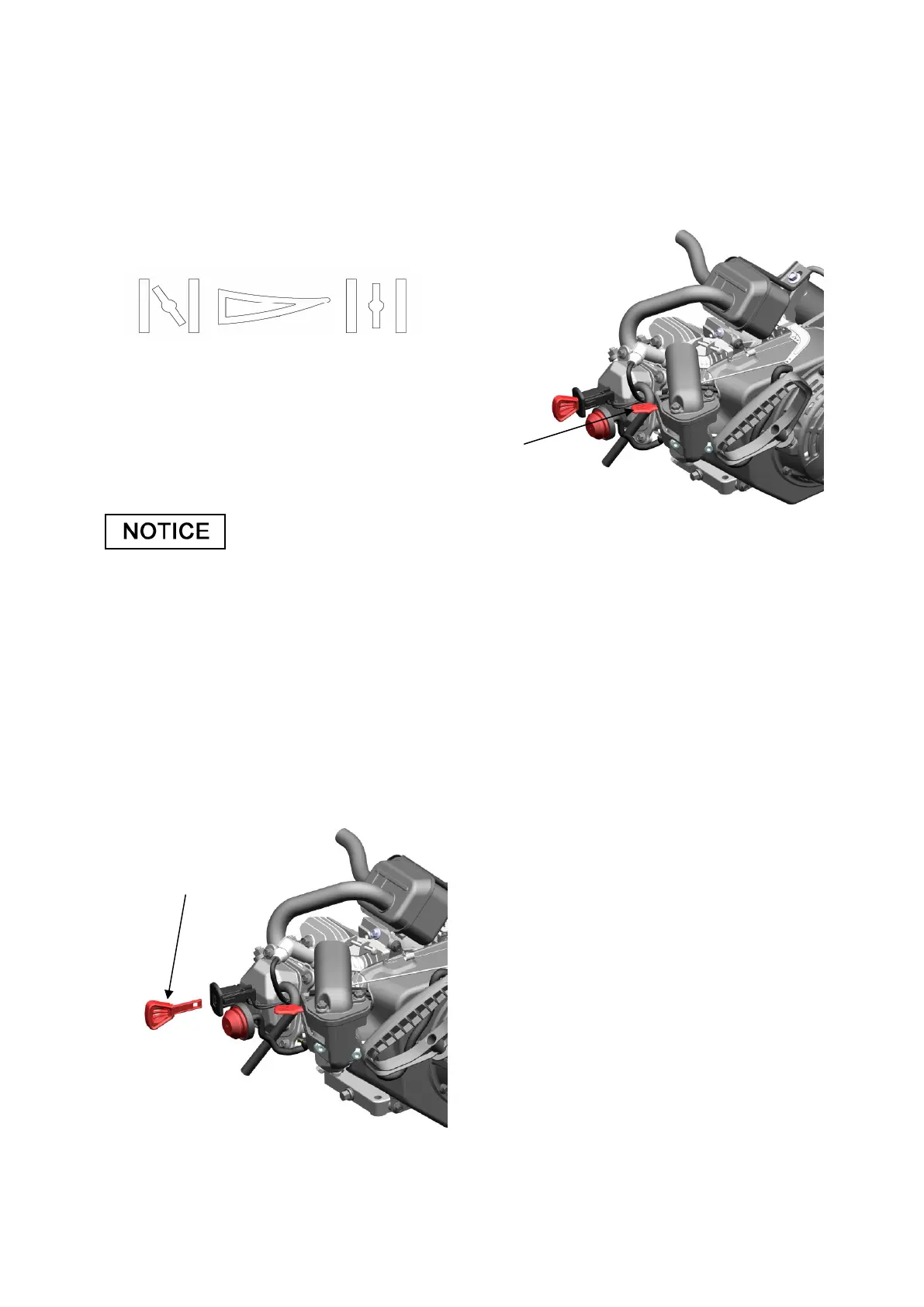

ENGINE SWITCH
CHOKE LEVER
OUT-OFF
CHOKEL VALVE POSITION SYMBOL
CLOSE
OPEN

Power smart 196cc Specifications

General

Type	Single cylinder, 4-Stroke, Forced Air Cooling, OHV
Bore×Stroke(mm)	68×54
Displacement(cc)	196
Net power(kW/3600rpm)	4.1
Net torque (N·m/rpm)	12.4/2500
Fuel consumption (g/kW·h)	≤395
Speed Fluctuating Ratio	≤10%
Compression Ratio	8.5:1
P.T.O shaft rotation	Anti-clockwise(from P.T.O. side)
Oil capacity(L)	0.6
Noise(≤)	70dBA
Lubricating mode	Splash
Starting Mode	Recoil start / Electric starting
Valve Clearance	input valve：0.10~0.15mm, output valve：0.15~0.20mm
Spark plug clearance	0.7~0.8mm
Igniting Mode	Transistorized magneto Ignition
Air cleaner	No filter

Weight and Dimensions

Dimension(L×W×H) (mm)	382×354×276
