14

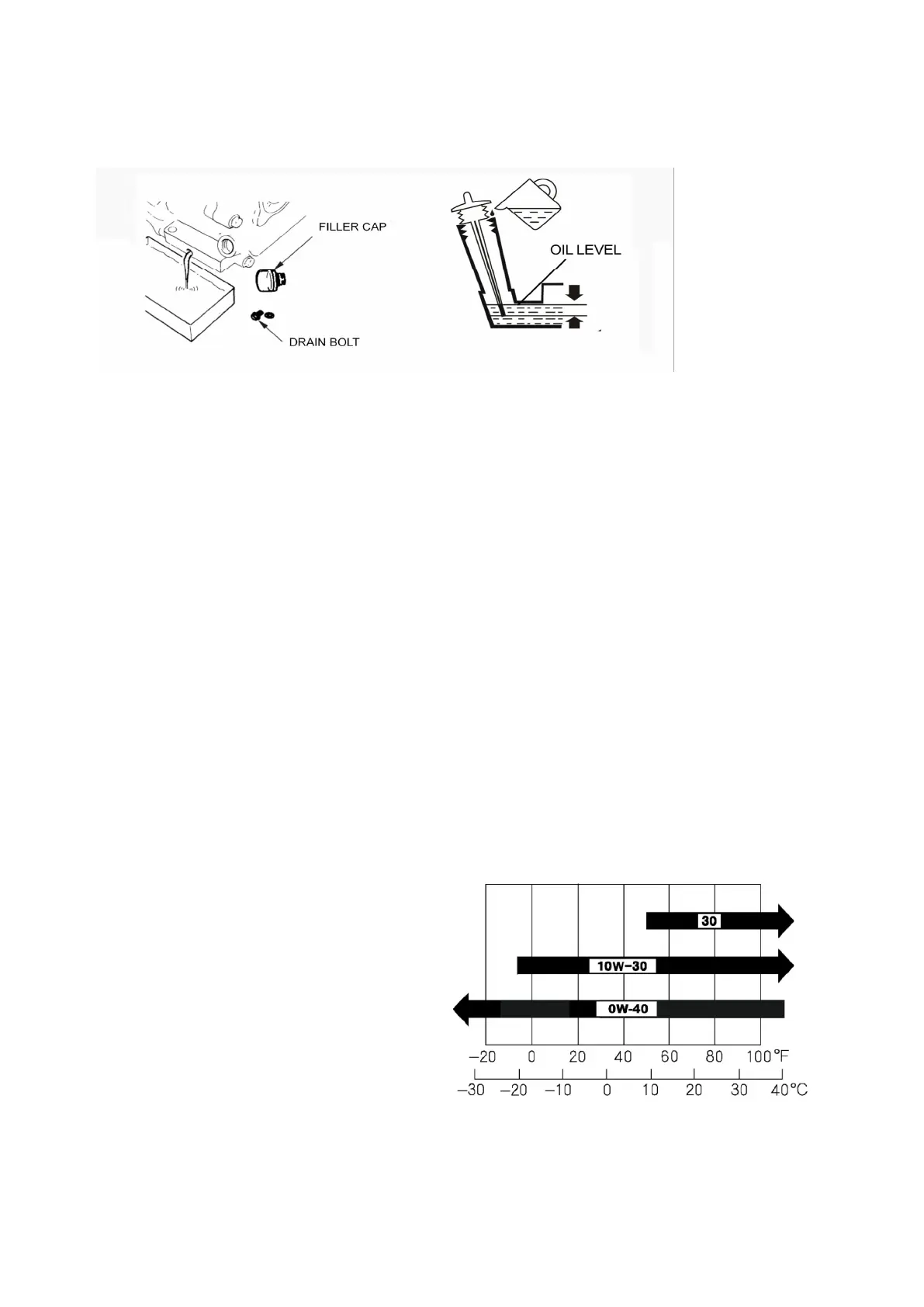

recommended oil.
Engine oil capacities:
168F(D)-2: 0.60 L
Running the engine with a low oil level can cause engine damage.
The Oil Alert system (applicable engine types) will automatically stop the engine before
the oil level falls below the safe limit.
However, to avoid the inconvenience of an unexpected shutdown, fill to the upper limit,
and check the oil level regularly.
4. Screw in the filler cap/dipstick securely.
ENGINE OIL RECOMMENDATIONS
Oil is a major factor affecting performance and service life. Use 4-stroke automotive
detergent oil.
SAE 5W-30 is recommended for general use. Other viscosities shown in the chart
may be used when the average temperature in your area is within the recommended
range.
The SA oil viscosity and service classification are in the API label on the oil container.
We recommend that you use API SERVICE Category SE or SF oil.
AMBIENT TEMPERATURE

Power smart 196cc Specifications

General

Type	Single cylinder, 4-Stroke, Forced Air Cooling, OHV
Bore×Stroke(mm)	68×54
Displacement(cc)	196
Net power(kW/3600rpm)	4.1
Net torque (N·m/rpm)	12.4/2500
Fuel consumption (g/kW·h)	≤395
Speed Fluctuating Ratio	≤10%
Compression Ratio	8.5:1
P.T.O shaft rotation	Anti-clockwise(from P.T.O. side)
Oil capacity(L)	0.6
Noise(≤)	70dBA
Lubricating mode	Splash
Starting Mode	Recoil start / Electric starting
Valve Clearance	input valve：0.10~0.15mm, output valve：0.15~0.20mm
Spark plug clearance	0.7~0.8mm
Igniting Mode	Transistorized magneto Ignition
Air cleaner	No filter

Weight and Dimensions

Dimension(L×W×H) (mm)	382×354×276
