ENGINE OIL LEVEL CHECK
Check the engine oil level with the engine stopped and in a level position.

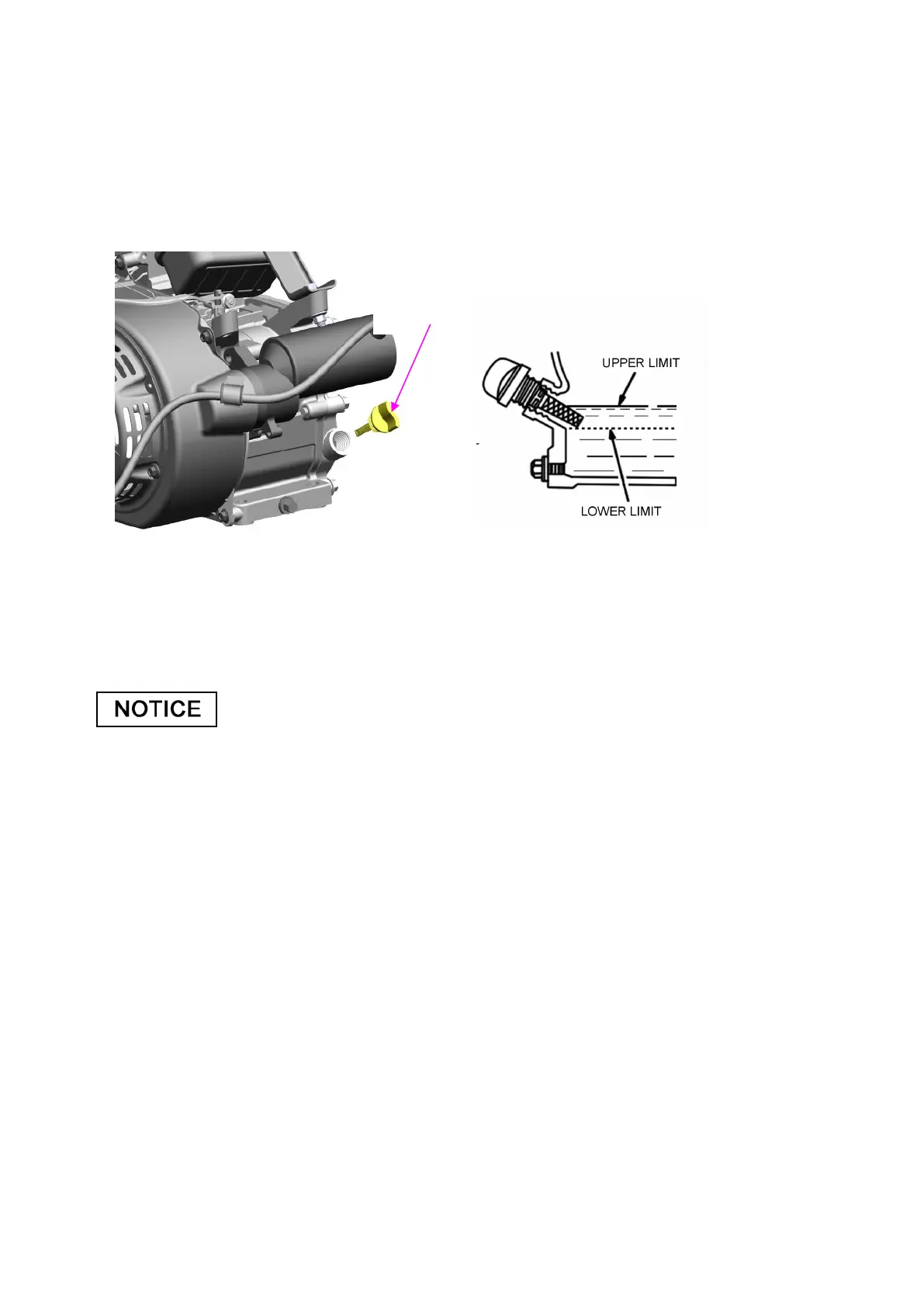

1. Remove the filler cap/dipstick and wipe it clean.
2. Insert and remove the dipstick without screwing it into the filler neck. Check the oil level
shown on the dipstick.
3. If the oil level is low, fill to the edge of the oil filler hole with the recommended oil.
4. Screw in the filler cap/dipstick securely.
Running the engine with a low oil level can cause engine
damage.
The Oil Alert system (applicable engine types) will automatically stop the engine before the
oil level falls below safe limit. However, to avoid the inconvenience of an unexpected
shutdown, always check the engine oil level before startup.
ENGINE OIL CHANGE
Drain the used oil while the engine is warm. Warm oil drains quickly and completely.
1. Place a suitable container below the engine to catch the used oil, and then remove the
filler cap and the drain plug.
2. Allow the used oil to drain completely, and then reinstall the drain plug, and tighten it
securely.
Please dispose of used motor oil in a manner that is compatible with the environment.
We suggest you take used oil in a sealed container to your local recycling center or
service station for reclamation. Do not throw it in the trash; pour it on the ground; or
down a drain.
3. With the engine in a level position, fill to the outer edge of the oil filler hole with the
FILLER CAP

Power smart 196cc Specifications

General

Type	Single cylinder, 4-Stroke, Forced Air Cooling, OHV
Bore×Stroke(mm)	68×54
Displacement(cc)	196
Net power(kW/3600rpm)	4.1
Net torque (N·m/rpm)	12.4/2500
Fuel consumption (g/kW·h)	≤395
Speed Fluctuating Ratio	≤10%
Compression Ratio	8.5:1
P.T.O shaft rotation	Anti-clockwise(from P.T.O. side)
Oil capacity(L)	0.6
Noise(≤)	70dBA
Lubricating mode	Splash
Starting Mode	Recoil start / Electric starting
Valve Clearance	input valve：0.10~0.15mm, output valve：0.15~0.20mm
Spark plug clearance	0.7~0.8mm
Igniting Mode	Transistorized magneto Ignition
Air cleaner	No filter

Weight and Dimensions

Dimension(L×W×H) (mm)	382×354×276
