11
Note: There is no neutral drive setting since
the drive control handle must be engaged for
movement. Neutral is achieved when the
drive control handle is disengaged.
Chute Discharge Direction
Adjustment
WARNING - Never direct the snow discharge
chute at the operator, bystanders, vehicles or
nearby windows. Discharged snow and foreign
objects accidentally picked up by the Snow
Thrower can cause serious damage and severe
bodily injury. Always point the discharge chute in
the opposite direction from potential hazards.

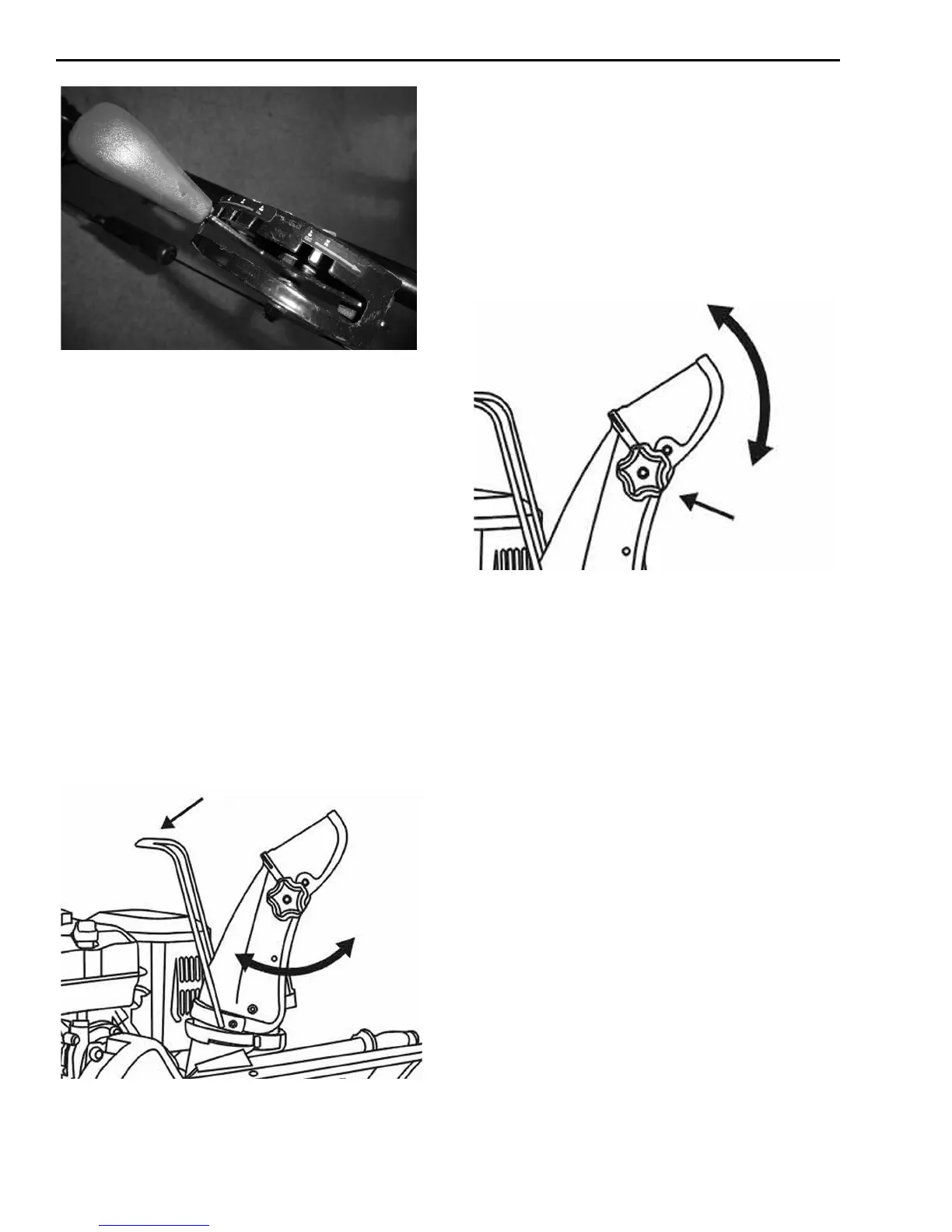

The discharge chute can be adjusted 180º by
rotating the chute handle and chute. Rotate the
chute rotation handle clockwise to move the
discharge chute to the left; counterclockwise to
move the chute to the right.
Chute Discharge Angle Adjustment
WARNING! Always disengage the drive and
auger control handles before making
adjustments. Make sure the augers are
stopped and the machine is not moving.
The angle of the chute deflector controls the
discharge distance of the snow. Raising the
angle will increase the distance. Lowering the
angle will decrease the distance.
1. Loosen the knobs on the chute deflector and
adjust the chute deflector to the desired angle.
2. Retighten the knobs. Do not over-tighten.
WARNING! An opening between the
discharge chute and the chute deflector may
allow foreign objects to be picked up by your
Snow Thrower and be thrown in the direction
of the operator causing severe bodily injury.
Do not advance the chute deflector too far
forward causing an opening to appear
between the deflector and discharge chute.
Do not over tighten the knobs on the chute
deflector.
OPERATING YOUR SNOW
THROWER
Starting
Please refer to ENGINE manual (separate
document) for engine operation instructions.
