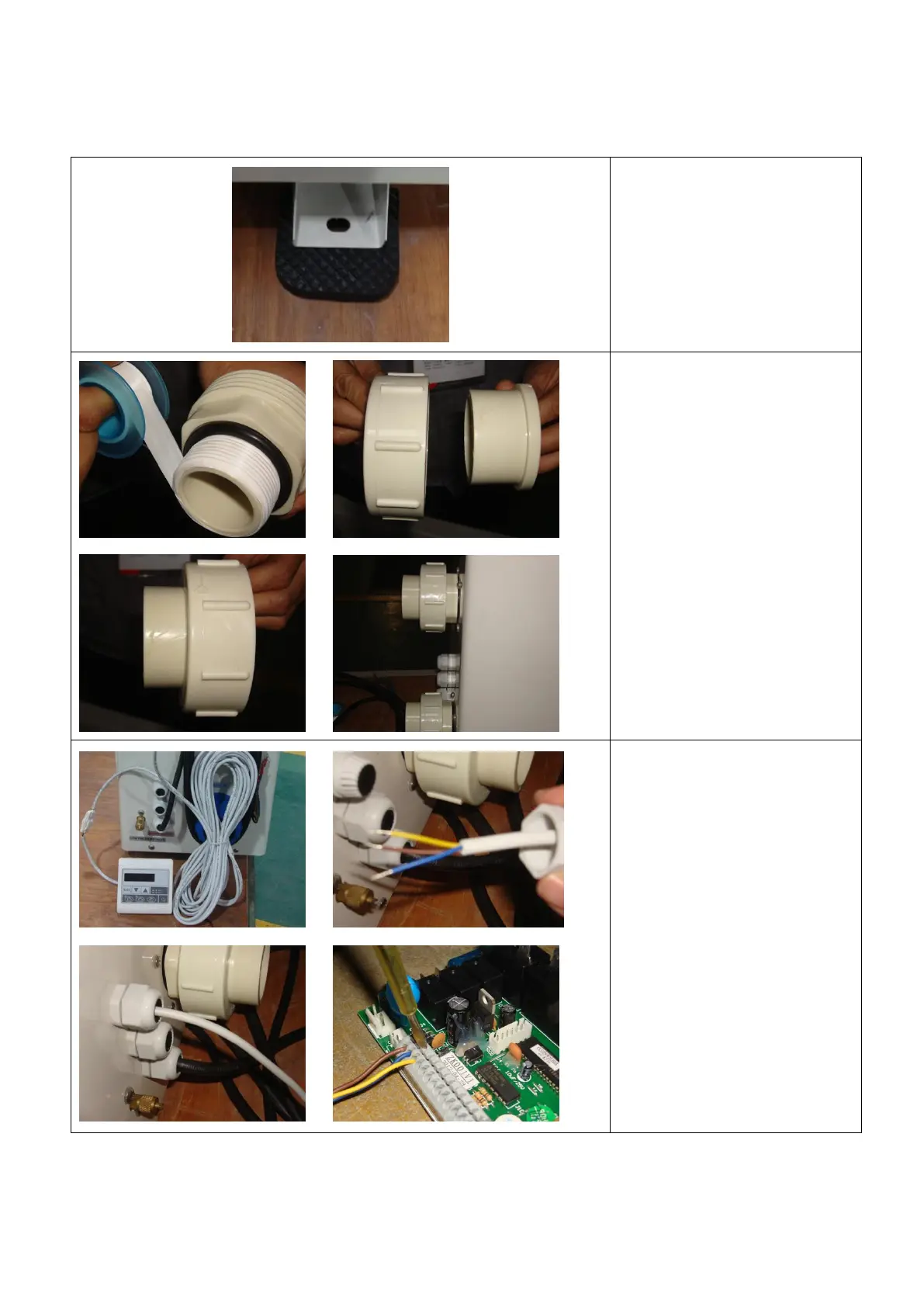

4. Accessories
Anti-vibration bases
1. Take out 4 Anti-vibration
bases
2. Put them one by one on
the bottom of the machine
like the picture.
Water Inlet & outlet
junction
1. Use the pipe tape to
connect the water Inlet &
outlet junction onto the heat
pump
2. Install the two joints like
the picture shows
3. Screw them onto the
water Inlet & outlet junction
10M Signal wiring
1. Take one side of the 10M
Signal wire, to connect with
the controller.
2. The other side needs to
be pulled through the hole,
like the third picture shows.
3. Then connect to the PC
board inside the machine :
the brown one --- first joint;
the blue one --- second joint;
the yellow one --- third joint.
