PAGE 9 OF 19

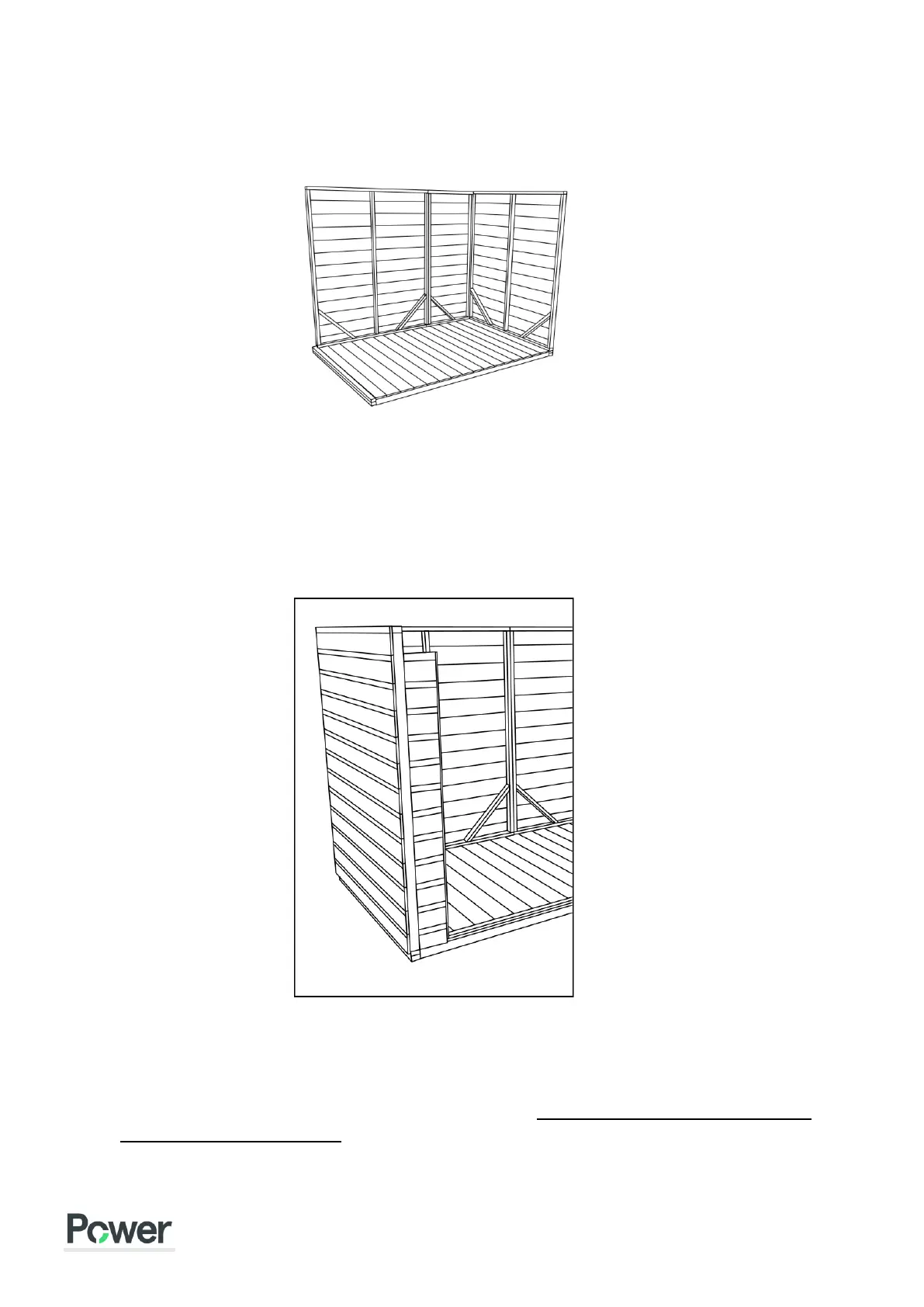

4. Place the remaining 4ft back wall panel and then the other 2ft / 3ft / 4ft end wall panels and again
secure using the 50mm screws provided.
Keep going until the back wall and both ends are secured together leaving the front section open.
5. Attach the one panel which goes at the side of doors (called the door wings). Again, continue to use
50mm screws (three screws per join).
6. Before attaching the other door wing, attach the door sill which looks like a piece of framing in half.
This will be screwed to the floor beneath with 35mm screws. We would strongly recommend to pre-
drill the holes to avoid splitting. This sill should be 147mm from each end of the floor (but not the
floor bearer) and attached to the very outside edge of the floor. (see image below)
