Poweramp PR - Component Identification

8
4111-0001 — June 2003
INTRODUCTION

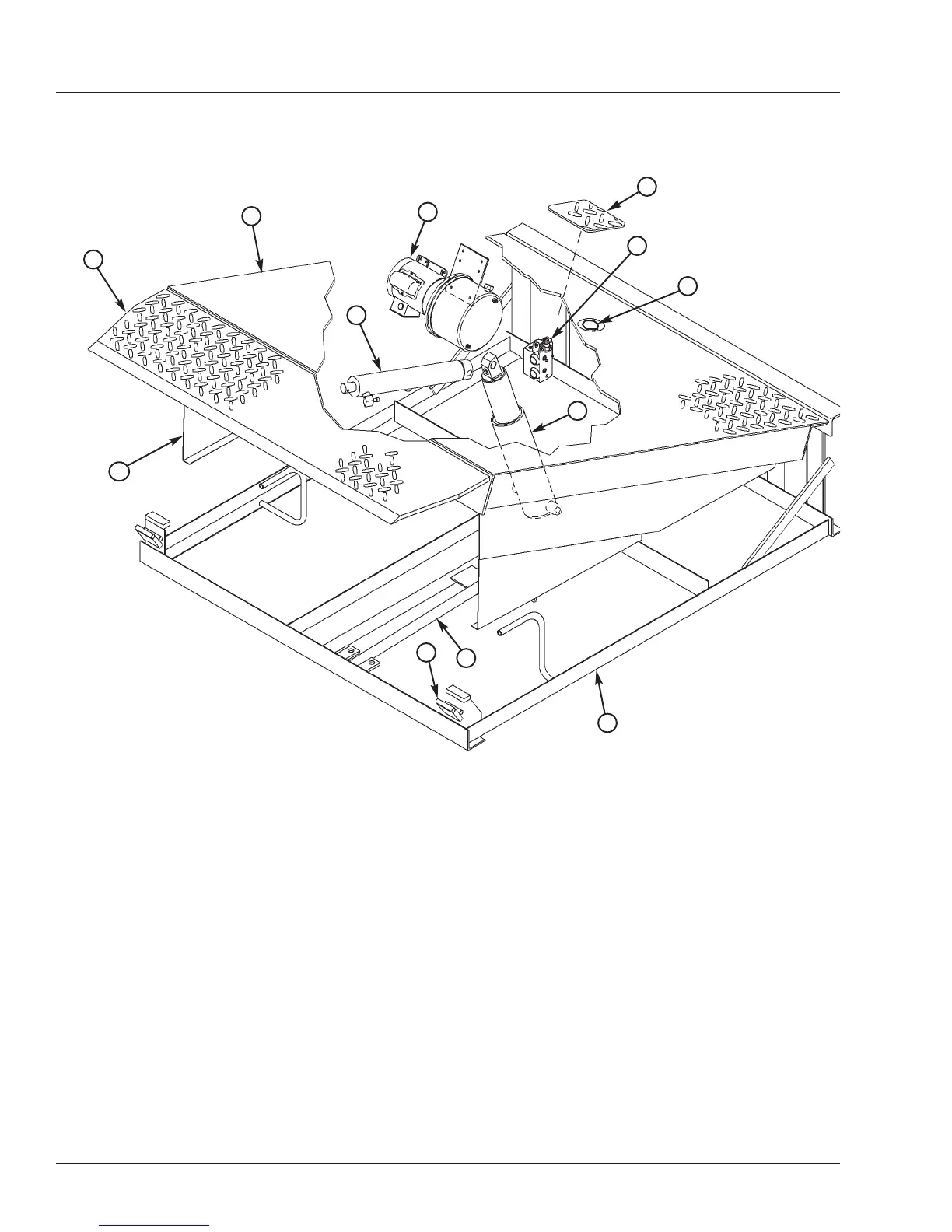

Component Identification
A—Lip
B—Platform
C—Lip Cylinder(s)*
D—Powerpack (Motor/Pump/Reservoir)
E—Inspection Plate
F—Logic Block
G—Dual-Lanyard Pull Ring
H—Platform Cylinder(s)*
J—Main Frame
K—Maintenance Prop
L—Lip Keepers (2 used)
M—Toe Guard (2 used)
*Some models are equipped with multiple cylinders.
