Poweramp PR - Install Dock Leveler

12
INSTALLATION
4111-0001 — September 2002

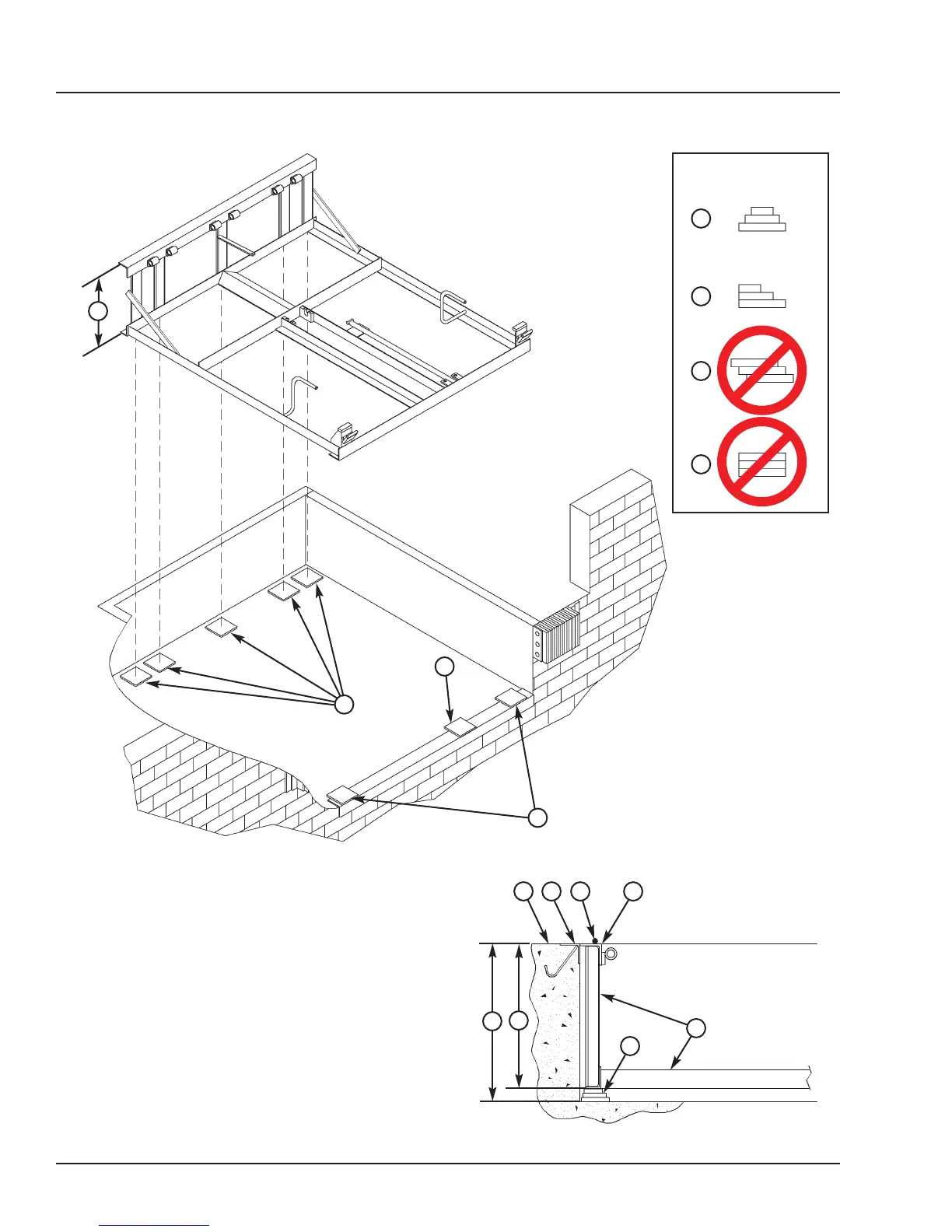

A
A—Distance (Leveler Frame
Height)
B—Shim Locations (Under
Rear Vertical Supports)
C—Shim Location (Under
Maintenance Prop)
(Standard Dock Leveler
Only)
D—Shim Locations (Under
Lip Keepers)
E—Dock Floor
F—Rear Pit Curb Angle
G—String
H—Rear Hinge Frame Angle
J—Distance (Dock Floor-to-Pit
Floor)
K—Distance (Top of Shim
Stack-to-Dock Floor)
L—Shim Stack
M—Dock Leveler Frame
N—Pyramid (Preferred)
P—Stepped (Acceptable)
Q—Offset (Not Acceptable)
R—Straight (Not Acceptable)
Install Dock Leveler
N
P
Q
R
Shim
Stacking Methods
F
E
G
L
H
M
K
J
B
C
D
A
