Poweramp PR - Lip Cylinder Repair Parts

PARTS
45
4111-0001 — June 2003
Item Quantity Part Number Description
A 1 0524-0077 Cylinder Barrel Assembly
B 1 0521-0109 Wear Ring
C 1 0521-0110 Piston Seal, 3-Piece
D 1 0524-0051 Piston Assembly
E 1 0521-0050 Spring
F 1 0522-0091 Spring Guide
G 1 2101-0085 Flat Washer, 2-1/4 in. OD x 1-3/16 in. ID x 9/64 in. Thk.
H 1 0524-0068 Cylinder Head
J 1 0521-0004 Retaining Ring
K 1
0525-0086 Lip Cylinder, 13-3/4 in. (349 mm) Barrel Length
0525-0087 Lip Cylinder, 20-1/8 in. (511 mm) Barrel Length
1 0525-0014 Seal Kit (Includes Items B, C, H, and J)
*For cylinders made before 1992
1 0525-0059 Seal Kit (Includes Items B, C, H, and J)
*For cylinders made since 1992

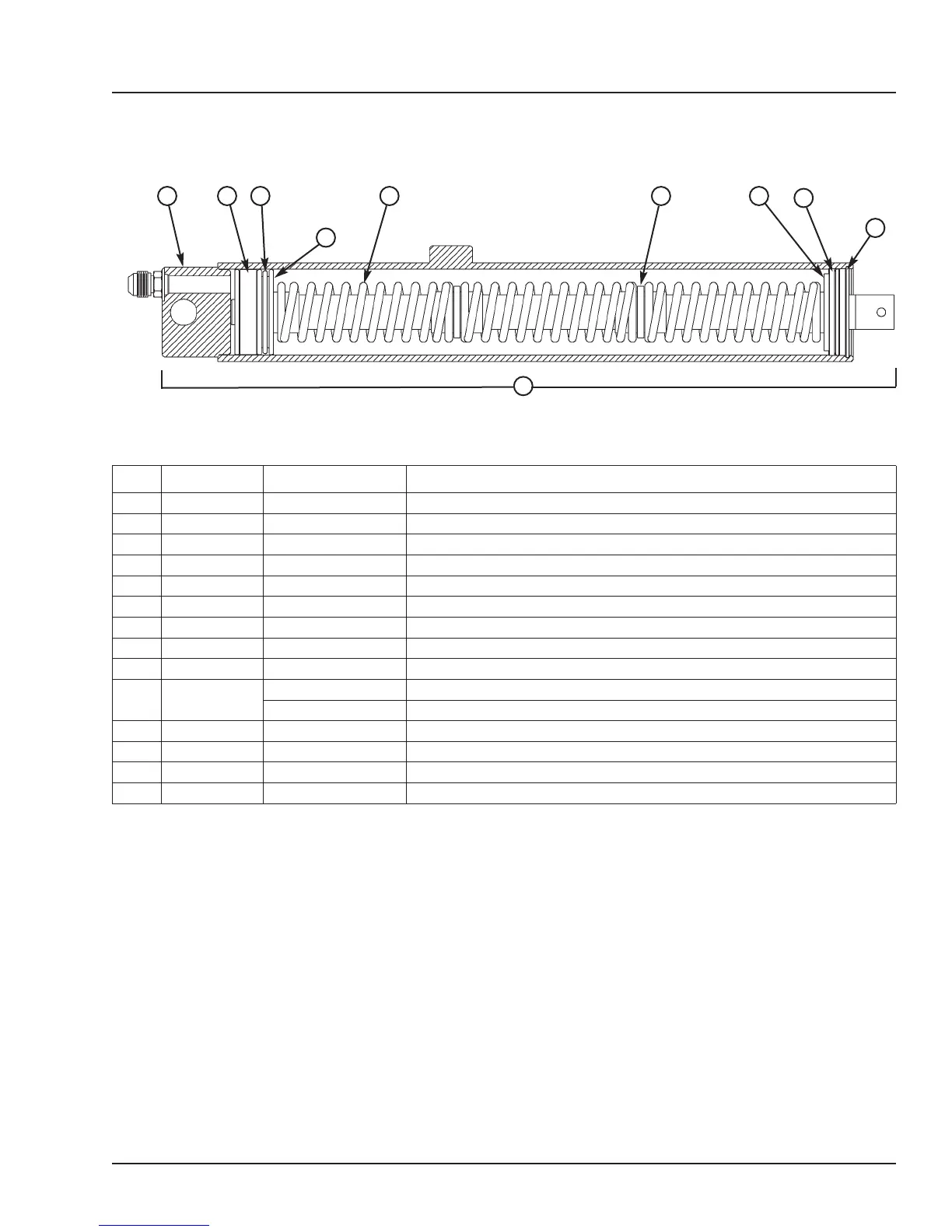

Lip Cylinder Repair Parts
*Provide dock leveler serial number when calling or faxing orders.
