Poweramp TPR - Cantilever Brackets

38
4111-0035 — Dec. 2018
© 2018 Systems, LLC

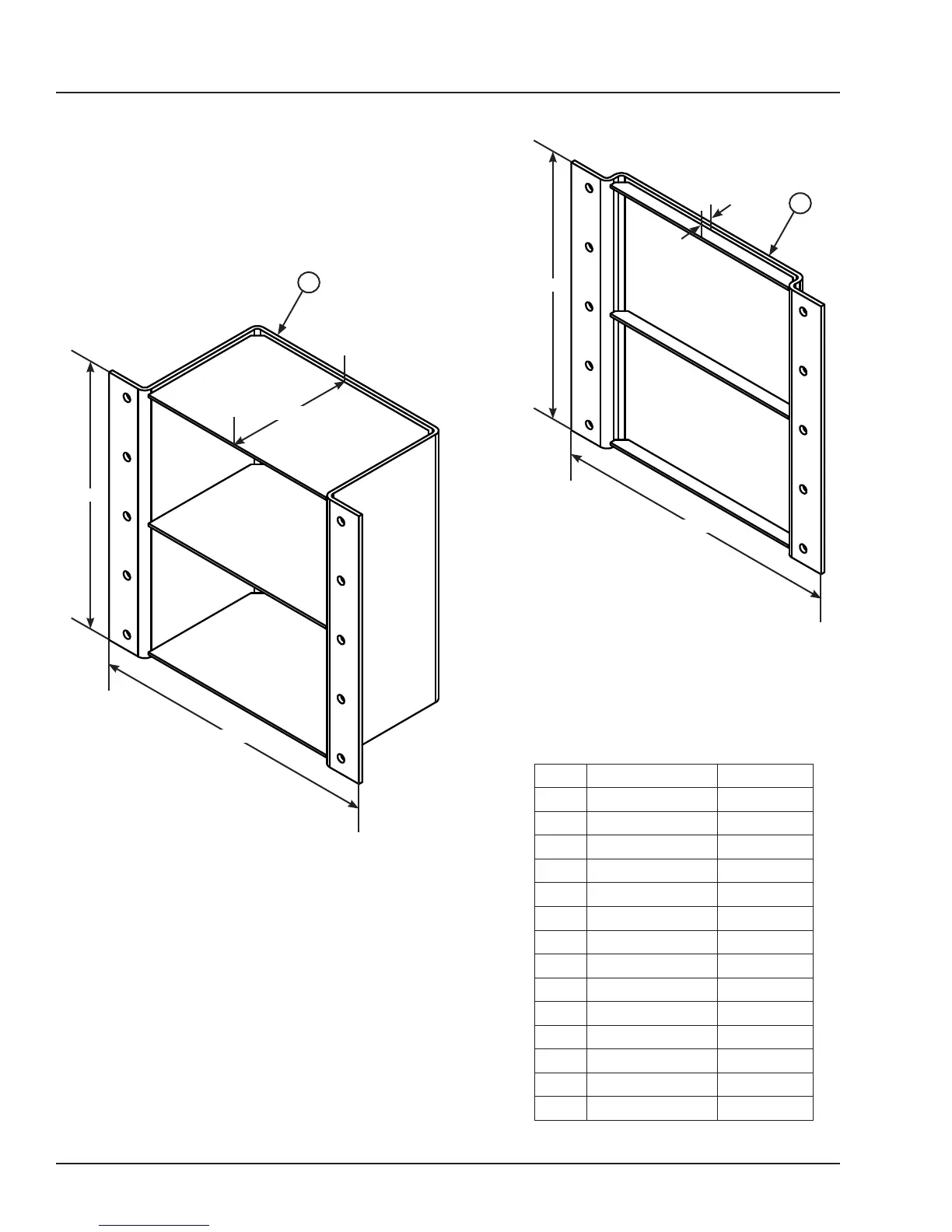

Cantilever Brackets
Item Part Number Projection
1 9703-0005 2”
9703-0009 3”
9703-0004 4”
9703-0011 5”
9703-0010 6”
9703-0012 7”
9703-0003 8”
9703-0013 9”
9703-0002 10”
9703-0014 11”
9703-0001 12”
9703-0015 13”
9703-0017 14”
2 9703-0016 15”
Note:
• 2” and 15” brackets shown for visual reference.
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL: 1/32"
DECIMAL:
.00 =
.01"
.000 =
.005"
ANGULAR:
1
MATERIAL
DRAWN BY
CHECKED BY
DRAWING NO.
DATE
ST 2/28/2012
9703-0005
FILLER WELDMENT 2" PROJECTION
P O W E R A M P
M C G U I R E
D L M
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
This print is the property of Systems, Inc. and represents a proprietary article in which Systems, Inc. retains any and all
patent and other rights, including exclusive rights of use and/or manufacture and/or sale. Possession of this print does
not convey any permission to reproduce, print or
manufacture the article or articles shown therein, such permission to be
granted only by written authorization signed by an officer or other authorized agent of Systems, Inc. thereof.
STOCK NO.
26”
28”
15”
26”
28”
2”
2
1
PARTS
