Poweramp TPR - OSLA (Outside Light Assembly)

39
4111-0035 — Dec. 2018
© 2018 Systems, LLC
PARTS
OSLA (Outside Light Assembly)
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL: 1/32"
DECIMAL:
.00 =
.01"
.000 =
.005"
ANGULAR:
1
MATERIAL
DRAWN BY
CHECKED BY
DRAWING NO.
DATE
JX 6/9/2006
3055-0007
LOADING DOCK CONTROL LIGHTS
P O W E R A M P
M C G U I R E
D L M
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
This print is the property of Systems, Inc. and represents a proprietary article in which Systems, Inc. retains any and all
patent and other rights, including exclusive rights of use and/or manufacture and/or sale. Possession of this print does
not convey any permission to reproduce, print or
manufacture the article or articles shown therein, such permission to be
granted only by written authorization signed by an officer or other authorized agent of Systems, Inc. thereof.
STOCK NO.
1
2
3
4
5
6
7

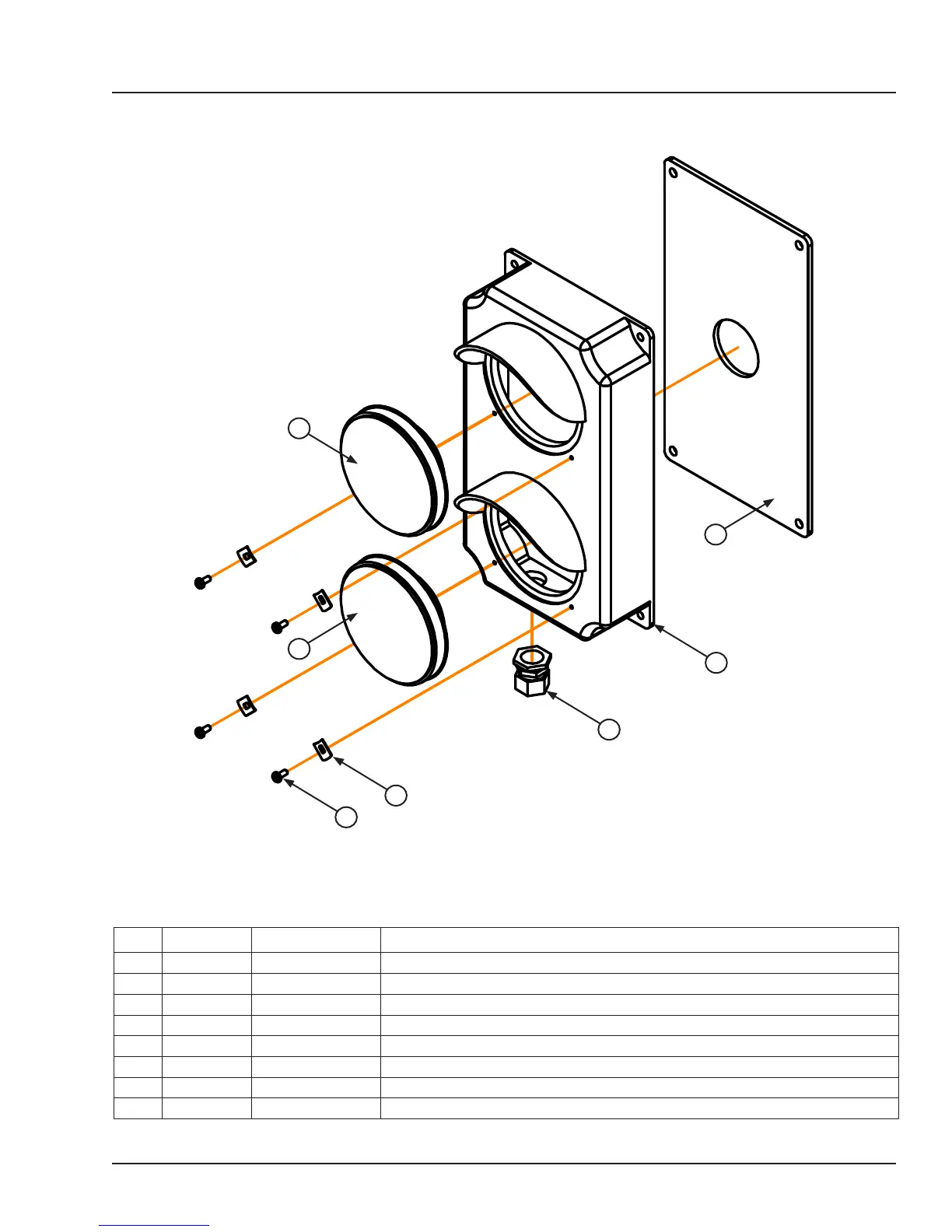

Item Quantity Part Number Description
1-7 1 3055-0011 Complete Light Housing, Yellow Plastic, With LED Lights
1 1 3051-0002 Light Housing Only, Yellow Plastic
2 1 3051-0147 Red LED Lens/Housing/Circuit Assembly, 12v
3 1 3051-0149 Green LED Lens/Housing/Circuit Assembly, 12v
4 1 3051-0068 Mounting Gasket
5 4 3051-0105 Clip, Lens Holding
6 4 3051-0104 Screw, Lens Holding
7 1 * Conduit Fastener, 3/4” x 3/8”
