PowerBase 577147 - Assembly Instructions; Unpacking Instructions; Shredder Assembly Steps

14
• Remove the shredder from the packaging.
• For compact storage and transportation, the shredder unit can be
stored in the collection box. Before assembly, pull the collection box
2
out of the chassis
12
and take out the shredder unit and accessories
(Fig. 1).
• To assemble the two transportation wheels , insert the screw provided
through the central wheel hub, washer, chassis and washer, then secure
with the bolt provided on the inside of the frame. Repeat this step for
each wheel. The two wheel covers can now be clipped onto the wheel
hub.
• Screw on the two stabilising feet
13
to the chassis
12
(Fig. 2).
• Fix the shredder unit
4
onto the top of the chassis
12
with the four
screws enclosed.
• To insert the collection box, ensure the safety switch is in the ‘OFF’
position
3
. Push the collection box into the chassis, with the safety
switch at the rear of the machine. The collection box can only be fitted
in one direction.
• To secure the collection box into position, rotate the safety switch
clockwise to the ‘ON’ position
3
. This is a safety device: ensure the
collection box is firmly connected in position; otherwise, the shredder
motor will not function.
Step 1 - Unpacking
Step 2 - Assembling the shredder
Assemble

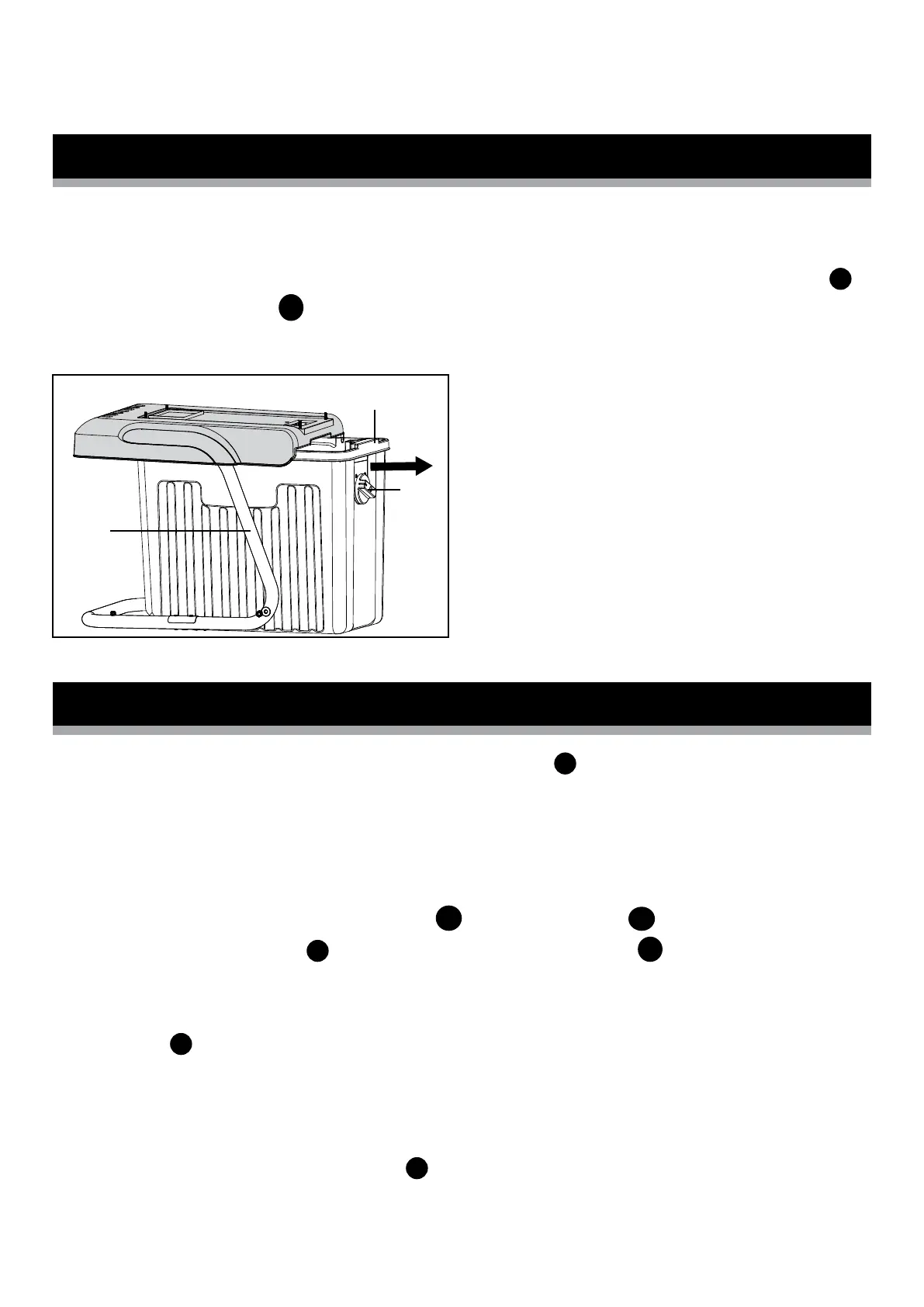

Fig. 1
1
12
2
3
