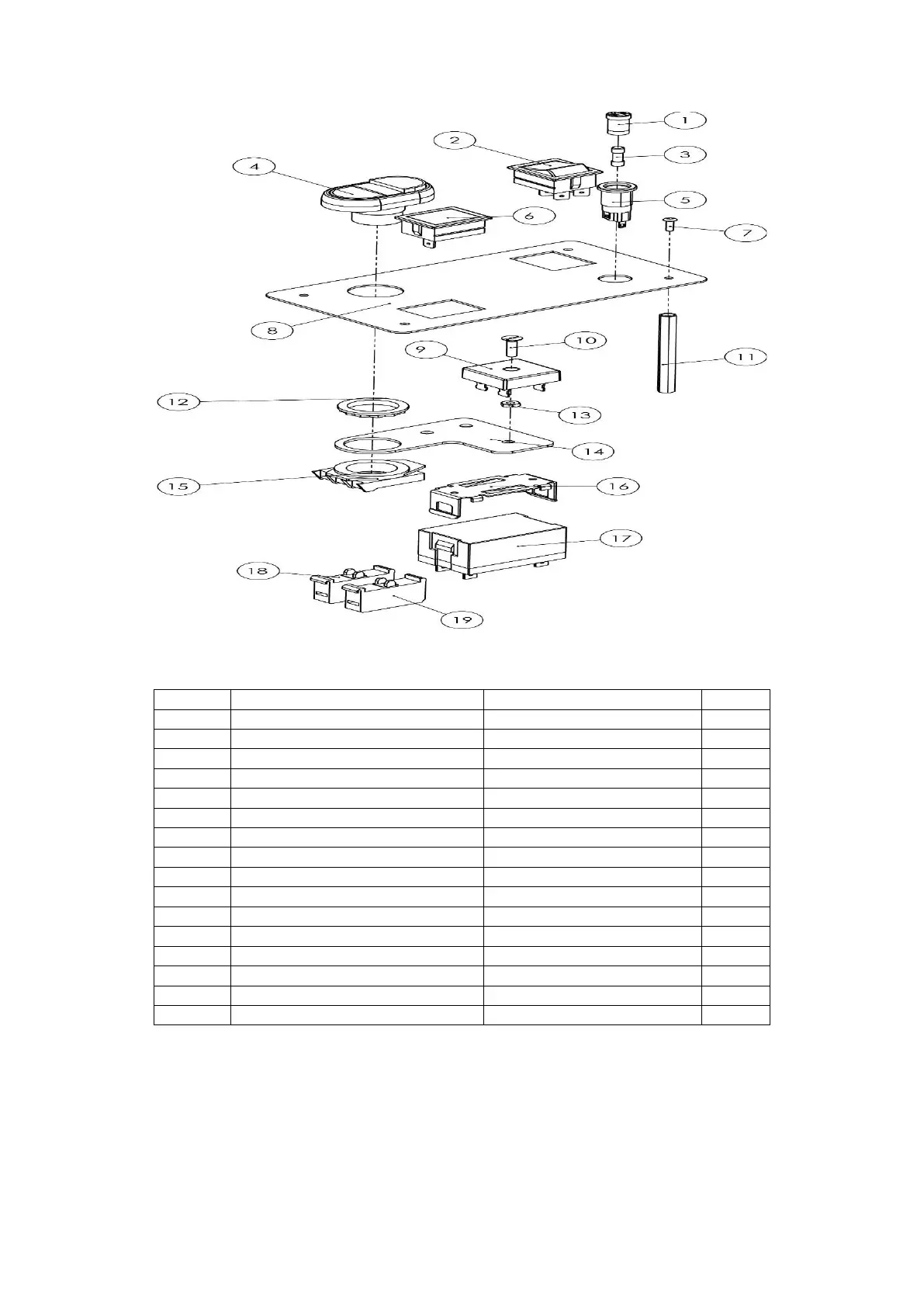

POWERBOR PB70/2 - Page 15

PB70 Manual Original instructions May 2019
15
1 + 5
W18XC511
FUSE HOLDER
1
2
W18XC510
MAGNET SWITCH
3
W18XC512
2A FUSE
1
4 +12+15
W18XC509/E
ON/OFF SWITCH
1
6
W18XC624
MOTOR INDICATOR LIGHT
1
7
W18XC1024
M4 X 8 ALUMINIUM RIVETS
2
8
W18XC1022
FRONT PANEL
1
9
W18XC515
BRIDGE RECTIFIER
1
10
W18XC568
M5 X 20 C/SNK SCREW
1
11
W18XC1084
BRASS SPACER
4
13
W18XC219
M5 STEEL NUT
1
14
18Y3010
RELAY BRACKET
1
16
W18XC523
CLIP
1
17
W18XC513
RELAY 110V
1
17
W18XC514
RELAY 230V
1
18
W18XC509/G
BACK PANEL COMPOSITE N/C
1
19
W18XC509/F
BACK PANEL COMPOSITE N/O
1
