POWERBOR PB70/2 - Control Panel and Parts List

PB70 Manual Original instructions May 2019
14

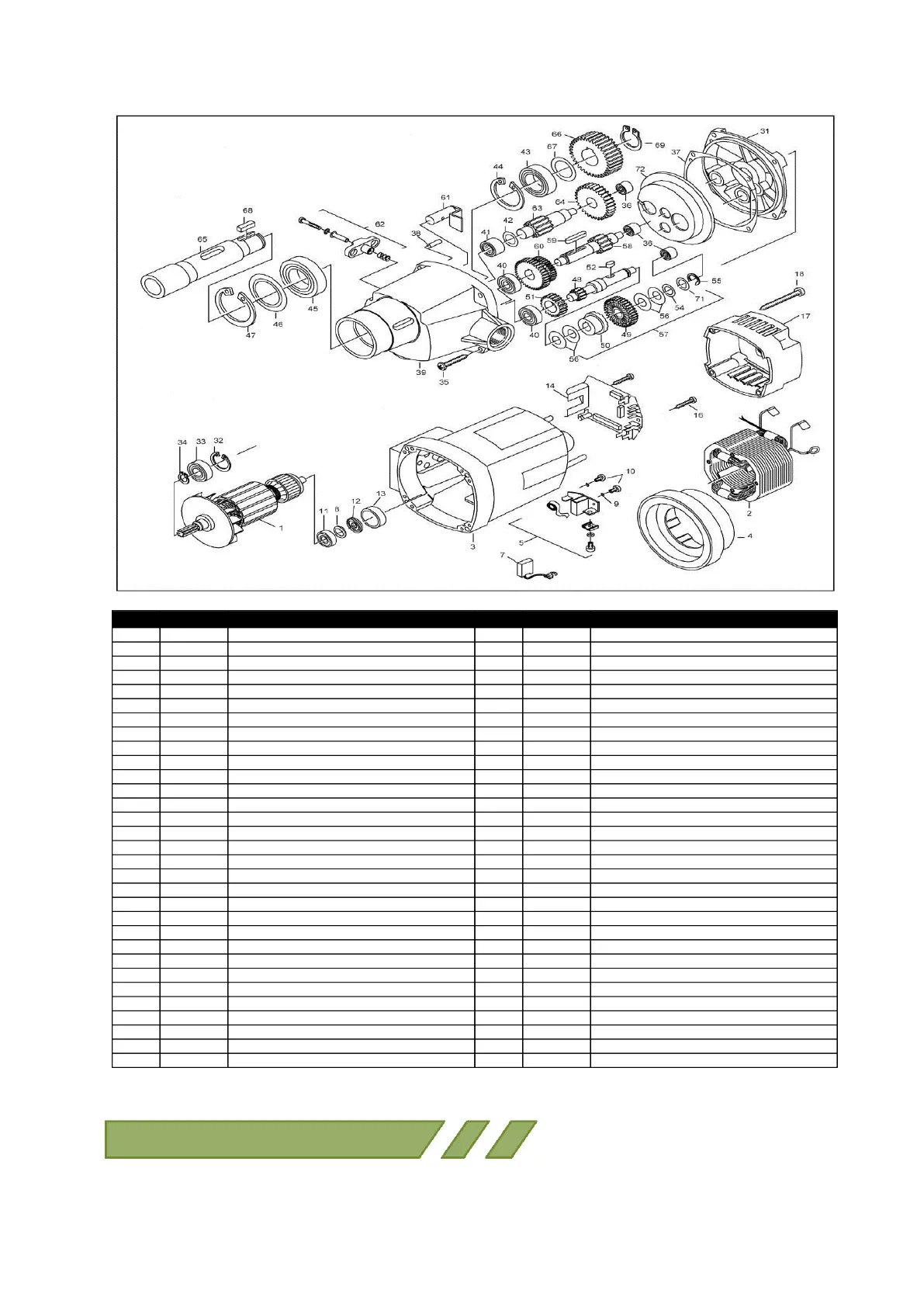

14)CONTROL PANEL AND PARTS LIST
Item N o . P art Number Descriptio n Item N o. P art Number Descriptio n
1 18ZD01 ARMATURE - 110V - EIB 7152H100 42 18ZD42 WASHER - EIB 71740717
1a 18ZD01A ARMATURE - 230V - EIB 7152H100/A 43 18ZD43 DEEP GROOVE BEARING 6205-2RS
2 18ZD02 FIELD COIL - 110V - EIB 7142B150 44 18ZD44 INT CIRCLIP 47x1.75
2a 18ZD02A FIELD COIL - 230V - EIB 7142B150/A 45 18ZD45 DEEP GROOVE BEARING 6006-2RS
3 18ZD03 MOTOR HOUSING - EIB 7742A200 46 18ZD46 WASHER - EIB 71540426
4 18ZD04 AIR GUIDE RING - EIB 71540140 47 18ZD47 INT CIRCLIP 55x2
5 18ZD05 BRUSH HOLDER - EIB 80201199 48 18ZD48 INTERMEDIATE SHAFT 1 - EIB 71521490
6 18ZD06 CONTACT WASHER - EIB 73320210 49 18ZD49 COUPLING WHEEL - EIB 74326550
7 18ZD07 SET CONTACT BRUSHES - EIB 80700021 50 18ZD50 COUPLING HALF - EIB 71540560
8 18ZD08 WASHER - EIB 73320999 51 18ZD51 INTERMEDIATE GEAR 1 - EIB 71521470
9 18ZD09 SPRING WASHER - EIB 80201385 52 18ZD52 KEY - EIB 71540495
10 18ZD10 SCREW - EIB 80201180 53 18ZD53 WASHER - EIB 80200502
11 18ZD11 DEEP GROOVE BEARING 6000-2Z 54 18ZD54 WASHER - EIB 71540607
12 18ZD12 RING MAGNET - EIB 80701002 55 18ZD55 WASHER - EIB 80201361
13 18ZD13 BEARING CAP - EIB 73320315 56 18ZD56 WASHER - EIB 80200713
14 18ZD14 CIRCUIT BOARD - 110V - EIB 714B280 57 18ZD57 GEAR COUPLING ASSY - EIB 74326493
14a 18ZD14A CIRCUIT BOARD - 230V - EIB 714B280/A 58 18ZD58 INTERMEDIATE SHAFT 2 - EIB 71521500
16 18ZD16 CIRCUIT BOARD SCREW - EIB 80201260 59 18ZD59 KEY - EIB 80200602
17 18ZD17 MOTOR HOUSING CAP - EIB 7152B240 60 18ZD60 GEAR CLUSTER - EIB 71521440
18 18ZD18 MOTOR CAP SCREW - EIB 80201267 61 18ZD61 GEAR SELECTOR - EIB 71521520
31 18ZD31 GEAR CAP - EIB 7152B610 62 18ZD62 GEAR SELECTOR ASSY - EIB 71540545
32 18ZD32 INT CIRCLIP - EIB 80201333 63 18ZD63 INTERMEDIATE SHAFT 3 - EIB 71521510
33 18ZD33 DEEP GROOVE BEARING 6001-2RS 64 18ZD64 INTERMEDIATE GEAR 2 - EIB 71521480
34 18ZD34 EXT CIRCLIP 11x1 65 18ZD65 INTERNAL SPINDLE - EIB 71540420
35 18ZD35 GEAR HOUSING SCREW - EIB 80201292 66 18ZD66 SPINDLE WHEEL - EIB 71540430
36 18ZD36 NEEDLE BEARING HK0810 67 18ZD67 WASHER - EIB 80200509
37 18ZD37 GEAR BOX SEAL - EIB 74429620 68 18ZD68 KEY - EIB 80200604
38 18ZD38 PIN - EIB 80200280 69 18ZD69 SAFETY RING - EIB 80201324
39 18ZD39 GEAR BOX HOUSING - EIB 71521400 71 18ZD71 EXT CIRCLIP 20x1.2
40 18ZD40 DEEP GROOVE BEARING 6000 72 18ZD72 GEARBOX COVER - EIB 7152B625
41 18ZD41 NEEDLE BEARING RNA 4900
