POWERBOR PB70 - Page 30

30 PB70 - W18XC1052 - Revised 040113
POWERBOR PB70

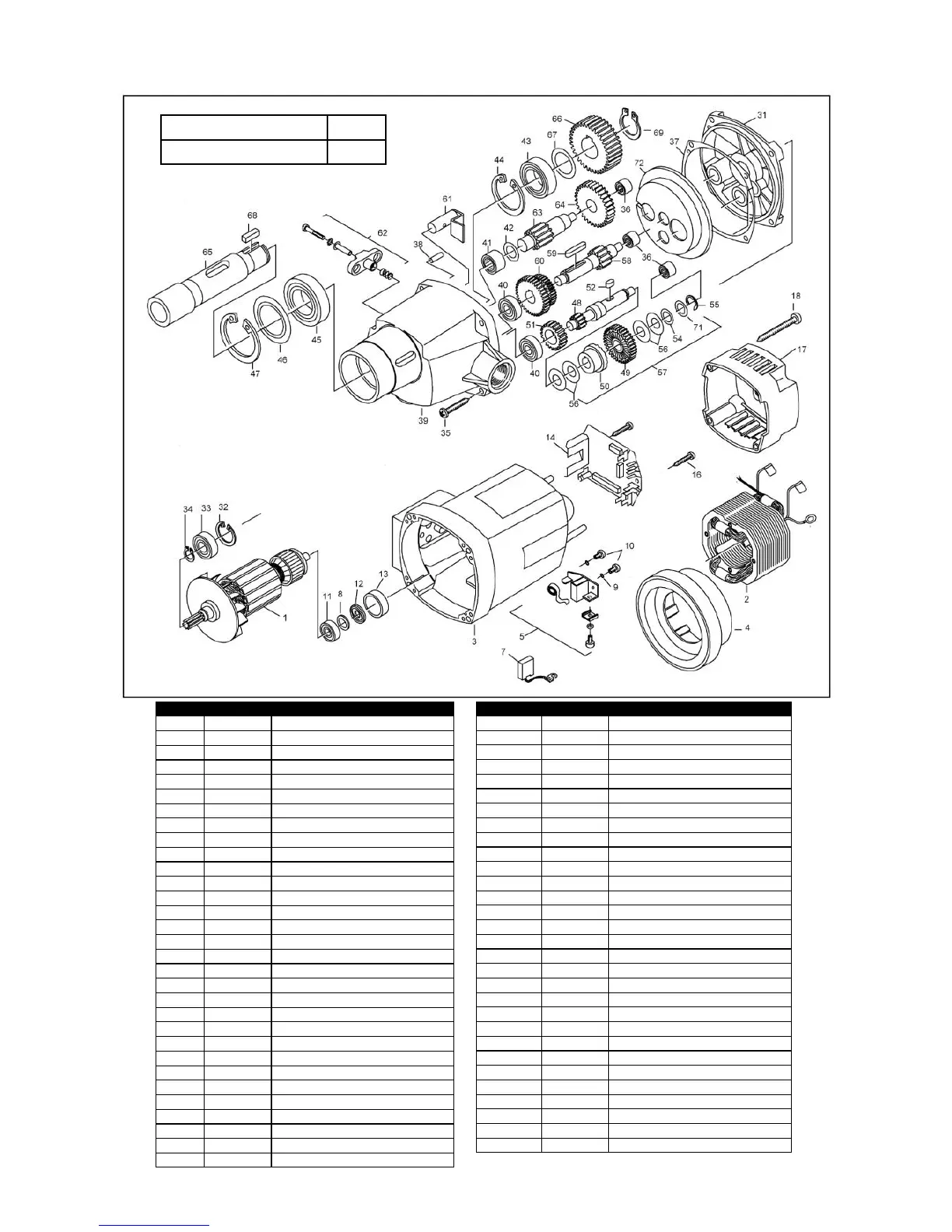

DRILL UNIT PARTS
Complete PB70 Drill Unit 110V 18X713
Complete PB70 Drill Unit 230V 18X714/A
Item No. Part Number Description
1
18ZD01 ARMATURE - 110V - EIB 7152H100
1a
18ZD01A ARMATURE - 230V - EIB 7152H100/A
2
18ZD02 FIELD COIL - 110V - EIB 7142B150
2a
18ZD02A FIELD COIL - 230V - EIB 7142B150/A
3
18ZD03 MOTOR HOUSING - EIB 7742A200
4
18ZD04 AIR GUIDE RING - EIB 71540140
5
18ZD05 BRUSH HOLDER - EIB 80201199
6
18ZD06 CONTACT WASHER - EIB 73320210
7
18ZD07 SET CONTACT BRUSHES - EIB 80700021
8
18ZD08 WASHER - EIB 73320999
9
18ZD09 SPRING WASHER - EIB 80201385
10
18ZD10 SCREW - EIB 80201180
11
18ZD11 DEEP GROOVE BEARING 6000-2Z
12
18ZD12 RING MAGNET - EIB 80701002
13
18ZD13 BEARING CAP - EIB 73320315
14
18ZD14 CIRCUIT BOARD - 110V - EIB 714B280
14a
18ZD14A CIRCUIT BOARD - 230V - EIB 714B280/A
16
18ZD16 CIRCUIT BOARD SCREW - EIB 80201260
17
18ZD17 MOTOR HOUSING CAP - EIB 7152B240
18
18ZD18 MOTOR CAP SCREW - EIB 80201267
31
18ZD31 GEAR CAP - EIB 7152B610
32
18ZD32 INT CIRCLIP - EIB 80201333
33
18ZD33 DEEP GROOVE BEARING 6001-2RS
34
18ZD34 EXT CIRCLIP 11x1
35
18ZD35 GEAR HOUSING SCREW - EIB 80201292
36
18ZD36 NEEDLE BEARING HK0810
37
18ZD37 GEAR BOX SEAL - EIB 74429620
38
18ZD38 PIN - EIB 80200280
39
18ZD39 GEAR BOX HOUSING - EIB 71521400
40
18ZD40 DEEP GROOVE BEARING 6000
41
18ZD41 NEEDLE BEARING RNA 4900
Item No. Part Number Description
42
18ZD42 WASHER - EIB 71740717
43
18ZD43 DEEP GROOVE BEARING 6205-2RS
44
18ZD44 INT CIRCLIP 47x1.75
45
18ZD45 DEEP GROOVE BEARING 6006-2RS
46
18ZD46 WASHER - EIB 71540426
47
18ZD47 INT CIRCLIP 55x2
48
18ZD48 INTERMEDIATE SHAFT 1 - EIB 71521490
49
18ZD49 COUPLING WHEEL - EIB 74326550
50
18ZD50 COUPLING HALF - EIB 71540560
51
18ZD51 INTERMEDIATE GEAR 1 - EIB 71521470
52
18ZD52 KEY - EIB 71540495
53
18ZD53 WASHER - EIB 80200502
54
18ZD54 WASHER - EIB 71540607
55
18ZD55 WASHER - EIB 80201361
56
18ZD56 WASHER - EIB 80200713
57
18ZD57 GEAR COUPLING ASSY - EIB 74326493
58
18ZD58 INTERMEDIATE SHAFT 2 - EIB 71521500
59
18ZD59 KEY - EIB 80200602
60
18ZD60 GEAR CLUSTER - EIB 71521440
61
18ZD61 GEAR SELECTOR - EIB 71521520
62
18ZD62 GEAR SELECTOR ASSY - EIB 71540545
63
18ZD63 INTERMEDIATE SHAFT 3 - EIB 71521510
64
18ZD64 INTERMEDIATE GEAR 2 - EIB 71521480
65
18ZD65 INTERNAL SPINDLE - EIB 71540420
66
18ZD66 SPINDLE WHEEL - EIB 71540430
67
18ZD67 WASHER - EIB 80200509
68
18ZD68 KEY - EIB 80200604
69
18ZD69 SAFETY RING - EIB 80201324
71
18ZD71 EXT CIRCLIP 20x1.2
72 18ZD72
GEARBOX COVER - EIB 7152B625
