29 PB70 - W18XC1052 - Revised 040113

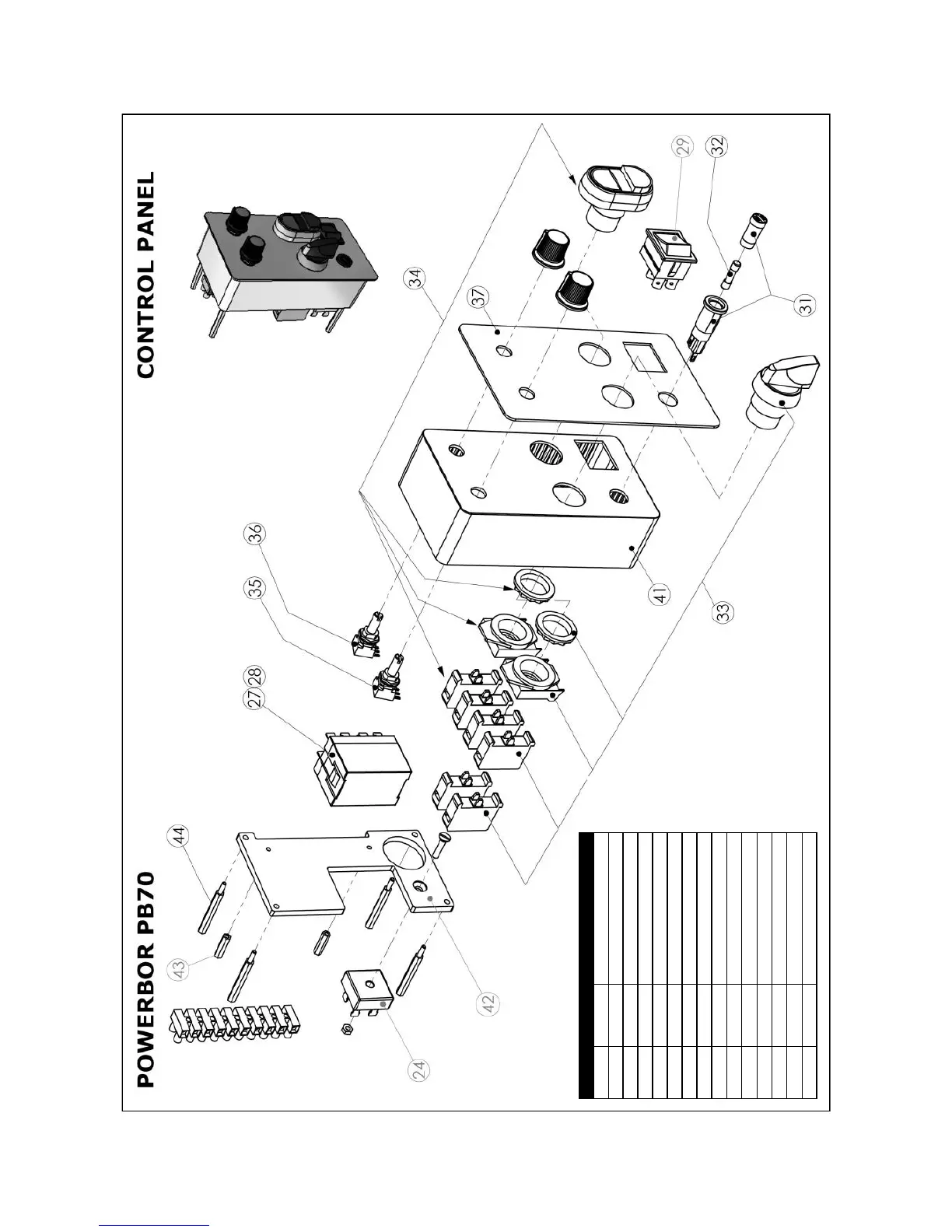

PB70 CONTROL PANEL PARTS DIAGRAM
ITEM Part No. Description
24 18X515 BRIDGE RECTIFIER
27 18X513 RELAY—110V
28 18X514 RELAY—230V
29 18X510 MAGNET SWITCH
31 18X511 FUSE HOLDER
32 18X512 2A FUSE
33 18Y183 FORWARD/REVERSE SWITCH ASSY.
34 18Y182 SATRT/STOP SWITCH ASSY.
35 18X721 TORQUE MODULE (INC KNOB)
36 18X722 SPEED MODULE (INC. KNOB)
37 18X1021 CONTROL PANEL PLATE
41 18X725 PANEL ENCLOSURE BOX
42 18X723/A PANEL PROFILE (PB70)
43 18X251 M3 X 20 HEXAGON SPACER
44 18X250 M3 X 40 HEXAGON SPACER
CONTROL PANEL COMPLETE 110V = 18Y178
CONTROL PANEL COMPLETE 230V = 18Y179
