POWERBOR PB70 - Page 28

28 PB70 - W18XC1052 - Revised 040113

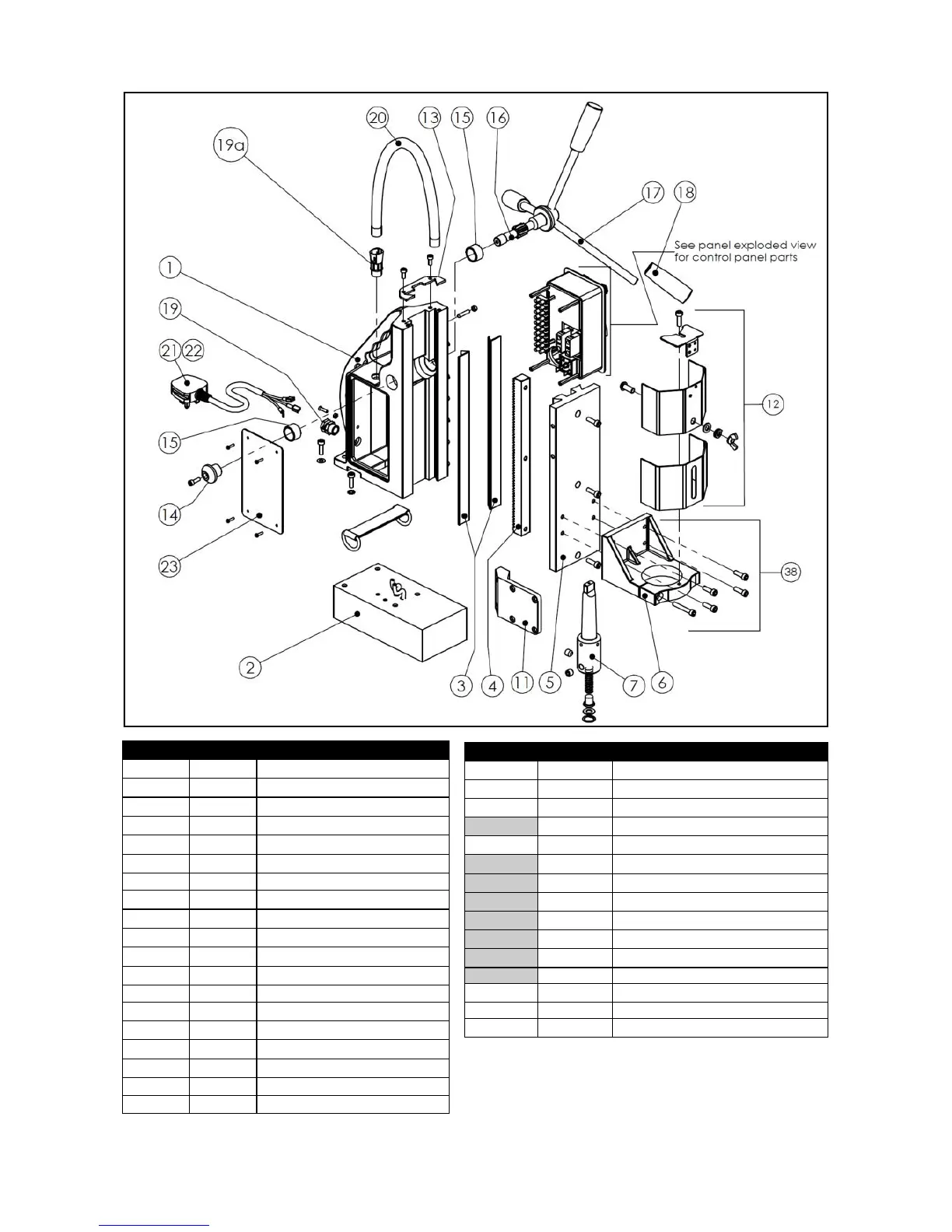

POWERBOR PB70 STAND PARTS
ITEM Part No. Description
1 18Y172 MAIN BODY CASTING
2 18Y173 ELECTRO-MAGNET BASE
3 18X716 BRASS GUIDES (PAIR)
4 18Y142 MACHINE RACK
5 18X717 DOVETAIL SLIDE
6 18X6051 LOWER SUPPORT BRACKET
7 18Y102 MT3 ARBOR ASSEMBLY
11 18Y176 SIDE BRACKET
12 18Y153 DRILL GUARD
13 18X612 RETAINING BRACKET
14 18X524 PINION END CAP
15 18X502 PINION BUSH
16 18Y174 PINION SHAFT
17 18X718 12MM HANDLE
17&18 18Y175 HANDLE & KNOB
18 18X520 KNOB
19 18X430 CABLE STRAIN RELIEF GLAND
19A 18X723 M16 GLAND
20 18Y177 CONDUIT ASSEMBLY
ITEM Part No. Description
21 18Y181 MAINS CABLE 110V (EU)
22 18X503 MAINS CABLE 230V (BS - UK)
23 18X1026 REAR PLATE
24 18X515 SILICON BRIDGE RECTIFIER
26 18X714 LASER PROFILE
27 18X513 RELAY—110V
28 18X514 RELAY—230V
29 18X510 MAGNET SWITCH
31 18X511 FUSE HOLDER
32 18X512 2A FUSE
34 18Y182 START/STOP SWITCH ASSEMBLY
37 18X1021 CONTROL PANEL PLATE
38 18Y192 LOWER SUPPORT BRACKET
39 18Y178 PB70 CONTROL PANEL COMPLETE—110V
40 18Y179 PB70 CONTROL PANEL COMPLETE —230V
SHADED PARTS IN THE TABLE ABOVE ARE
SHOWN ON THE CONTROL PANEL EXPLODED
VIEW.
