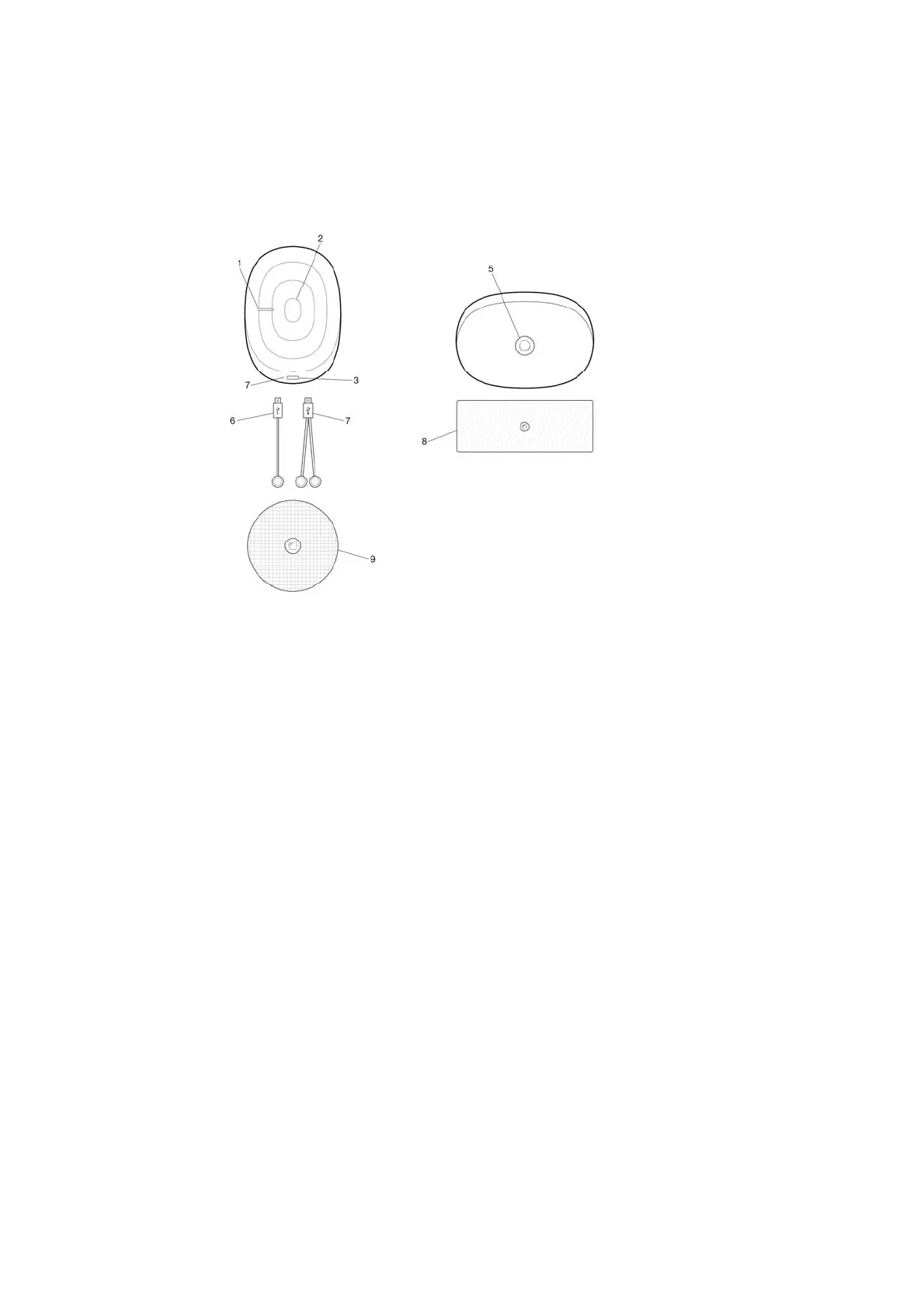

POWERDOTDEVICE&ACCESSORIES

1–Power/StimulationLED
2‐TactileMulti‐FunctionalButton
3‐MicroUSBconnector(dualfunction:connectseitherleadsorthechargingcable)
4–ChargingLED
5 – Female snap on connector (connects device to a rectangular pad, holds the device at tached to a
body)
6–Leadcablewith
two3.5mmsnaponconnectors
7‐Padwith2.2mmsnapmaleconnector(rectangular)
8‐Padwith3.5mmsnapmaleconnector(round)
Power/StimulationLED(1):
Power/StimulationLED(1)cangoeitherBLUEorORANGE.
WhenPowerDotisswitchedOFF–Power/StimulationLEDisOFFtoo.
Power/StimulationLEDisBLUE
‐PowerDotisinONstateandreadyforstimulation.
