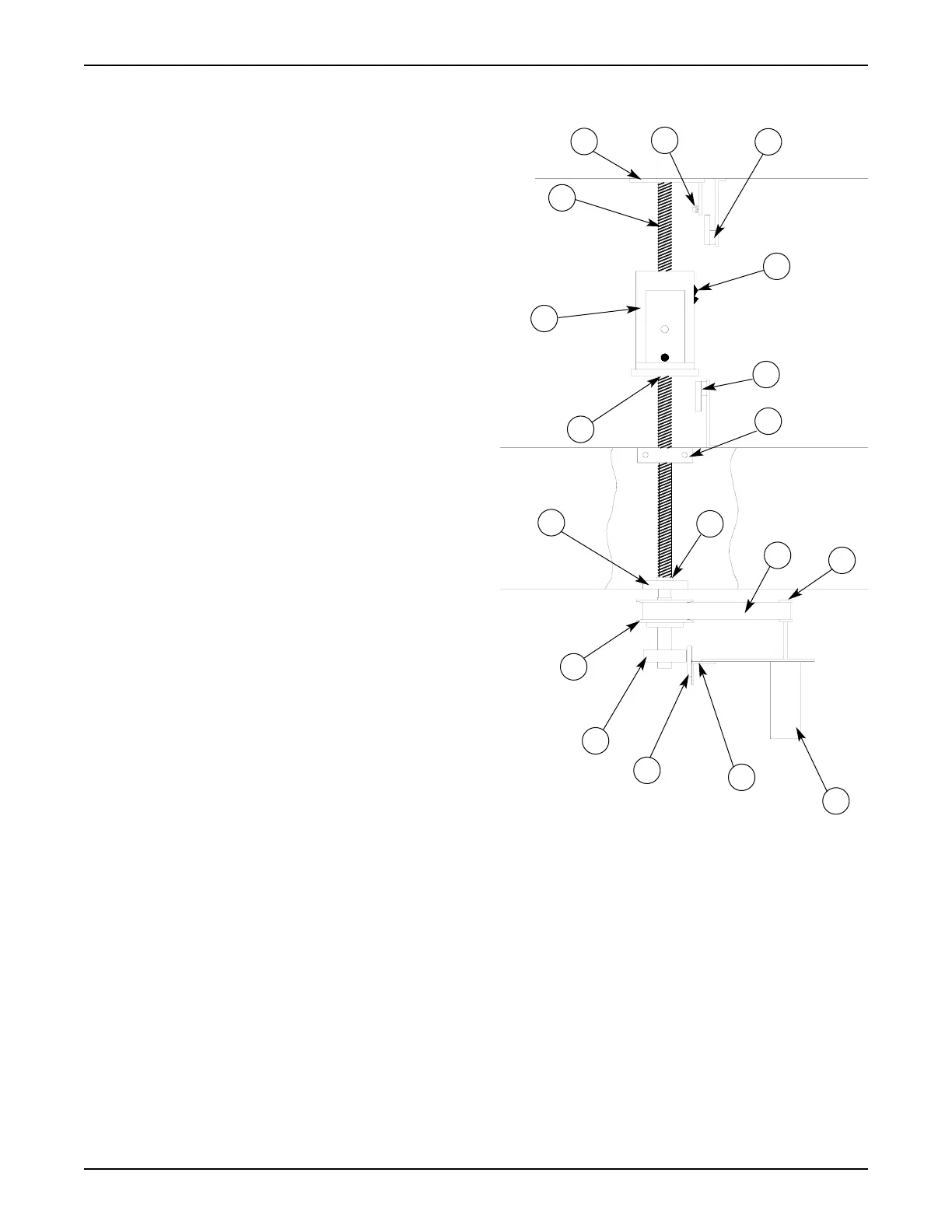

Back Gauge Drive Assembly, Top View
Item Part Number Qty. Description
1. W-O210111 1 Acme Drive Screw (21" EC)
W-O260111 1 Acme Drive Screw (26" EC)
2. M-O260120 1 Shock Mount Bushing
3. WRA260962 1 BG Home Sensor
4. M-S033007 2 Microswitch
5. W-O260108 1 Flag
6. W-O260106 1 Front Mounting Plate
7. M-S020002 1 Bearing
8. M-S025055 1 140T 3mm HTD Belt
9. M-S022138 1 12T 3mm HTD Pulley
10. W-A260960 1 DC BG Motor Assy
11. W-O260308 1 BG Encoder Bracket
12. M-O260301 1 Magnetic Encoder Board
13. M-S045255 1 Magnetic Encoder Wheel
14. M-S022148 1 72T 3mm HTD Pulley
15. W-O260113 1 Bearing Hub
16. M-S007027 1 5/8-10, 2 Start Acme Nut
W-O013019 2 Slider Block Bushing
17. W-O260104 1 Slider Block
W-O260107 1 Slider Block Nut Plate
W-O260105 1 Rear Plate
Not Illustrated
M-O260300 1 Main Logic Bd PL
M-O260176 1 Display Cable
M-O260177 1 Control Cable
W-A260141 1 Keypad Assy
M-O260148 1 Keypad overlay
W-O210100 1 Back gauge Guide Shaft (21" EC)
W-O260100 1 Back gauge Guide Shaft (26" EC)
8
2
1
4
5
4
6
7
9
10
11
12
13
14
17
3
16
15
