Powerline PL2650 - Cutter Assembly Overview

PowerLine
TM
Operating Instructions
18

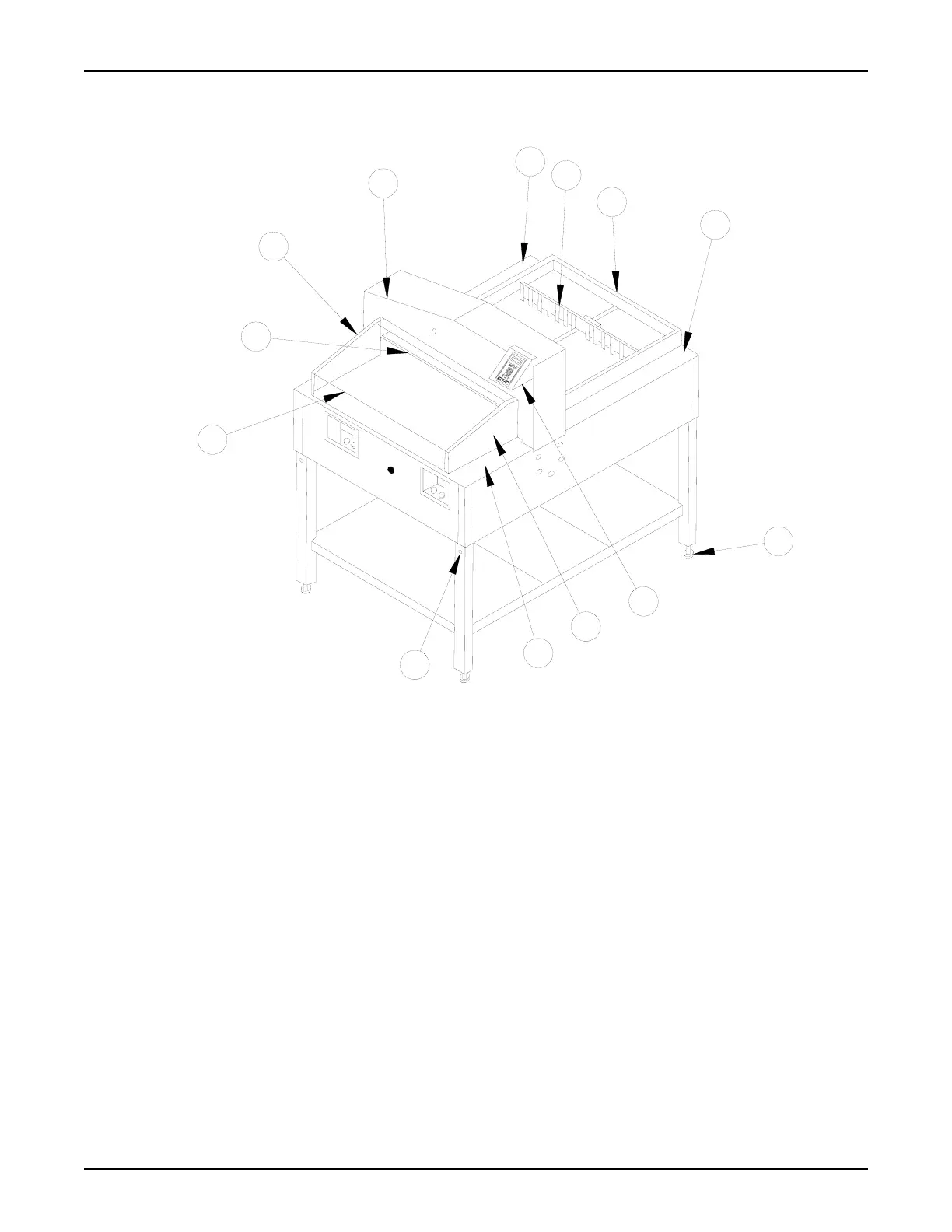

Cutter Assembly
Item Part Number Qty. Description
1. M-O210084 1 Cutting Stick (21" EC)
M-O260084 1 Cutting Stick (26" EC)
2. W-O210160 1 Housing (21" EC)
W-O260160 1 Housing (26" EC)
3. W-O210086 1 Left Rear Deck (21" EC)
W-O260086 1 Left Rear Deck (26" EC)
4. W-O210101 1 Back gauge (21" EC)
W-O260101 1 Back gauge (26" EC)
5. W-O210164 1 Rear Safety Cover Assy
(21" EC)
W-O260164 1 Rear Safety Cover
Assy (26" EC)
6. W-O210087 1 Right Rear Deck (21" EC)
W-O260087 1 Right Rear Deck (26" EC)
7. W-O260155 1 Control Box
8. M-S037048 4 Leg Leveler
9. M-S006003 4 5/16-181 3/4" Carriage Bolt
M-S007002 4 Acorn Nut
10. W-O210085 1 Front Deck (21" EC)
W-O260085 1 Front Deck (26" EC)
Item Part Number Qty. Description
11. M-O210247 1 Front Safety Cover Panel
M-O260247 1 Front Safety Cover Panel
12. W-O260245 1 Left End Cover
13. W-O260246 1 Right End Cover
Not Illustrated:
M-S033009 1 Front Safety Cover
Interlock Switch
M-S030046 2 Bumper
W-O260251 2 Bumper Bracket
W-O260244 1 Switch Cover Guard
W-O260243 1 Brake Cover Guard
13
9
10
7
11
1
12
2
3
4
5
6
8
