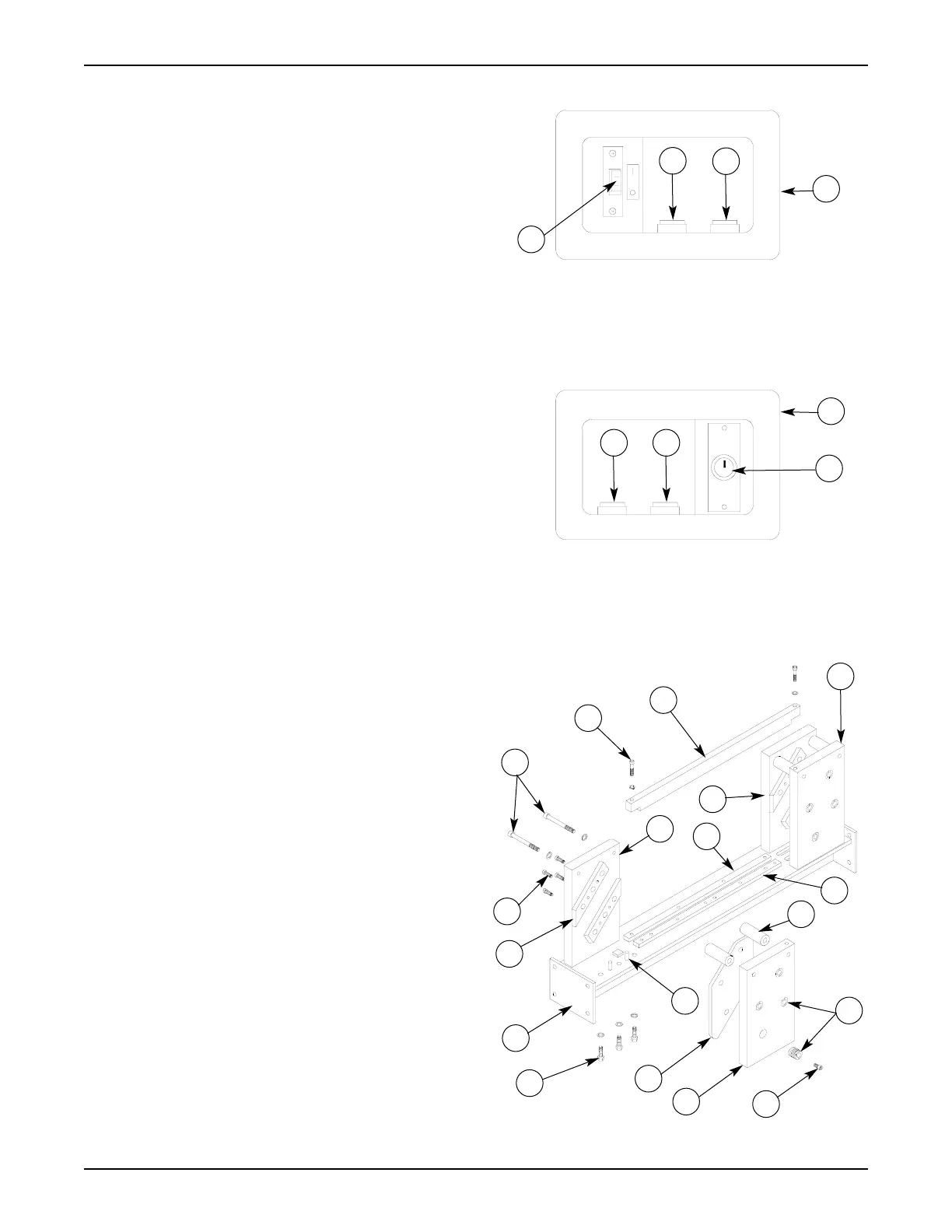

Item Part Number Qty. Description
1. M-S033006 1 On/Off Toggle Switch,
220VAC
2. M-S033002 3 Pushbutton Switch
3. M-S033022 1 Pushbutton Switch
4. M-O260090 1 Left Control Panel Housing
5. M-O260091 1 Right Control Panel Housing
6. WRA260963 1 Keyswitch Assy
T-Frame Assembly
Item Part Number Qty. Description
1. M-S006011 4 3/8"-16x3 1/2” Bolt
2. M-S003034 2 1/4"-20x1 1/4" Hex Hd Bolt
M-S008010 2 1/4"ID Split Lock Washer
3. W-O210014 1 Tower Tie Bar (21" EC)
W-O260014 1 Tower Tie Bar (26" EC)
4. W-O260020 1 Right Front Tower
5. W-A260022 1 Right Rear Tower Ass’y
6. W-O210092 1 Rear Deck Spacer (21")
W-O260092 1 Rear Deck Spacer (26")
7. W-O210093 1 Front Deck Spacer (21")
W-O260093 1 Front Deck Spacer (26")
8. W-O260043 4 1” OD X 1.937” Spacer
9. W-O260257 8 Gib Adjuster
10. W-O260019 1 Left Front Tower
11. W-G260256 2 Gib Plate
12. M-S018031 8 1/4"x1" Dowel Pin
13. M-S006009 12 3/8"-16x1" Hex Hd Bolt
M-S008003 16 3/8" USS Split Lock Washer
14. W-A210015 1 T-Frame Base (21")
W-A260015 1 T-Frame base (26")
15. W-O260258 4 Tower Rail
16. M-S003015 16 5/16-18 X 3/4 Socket
H.D.Screw
17. W-A260021 1 Left Rear Tower Ass’y
