Powerline PL2650 - Page 20

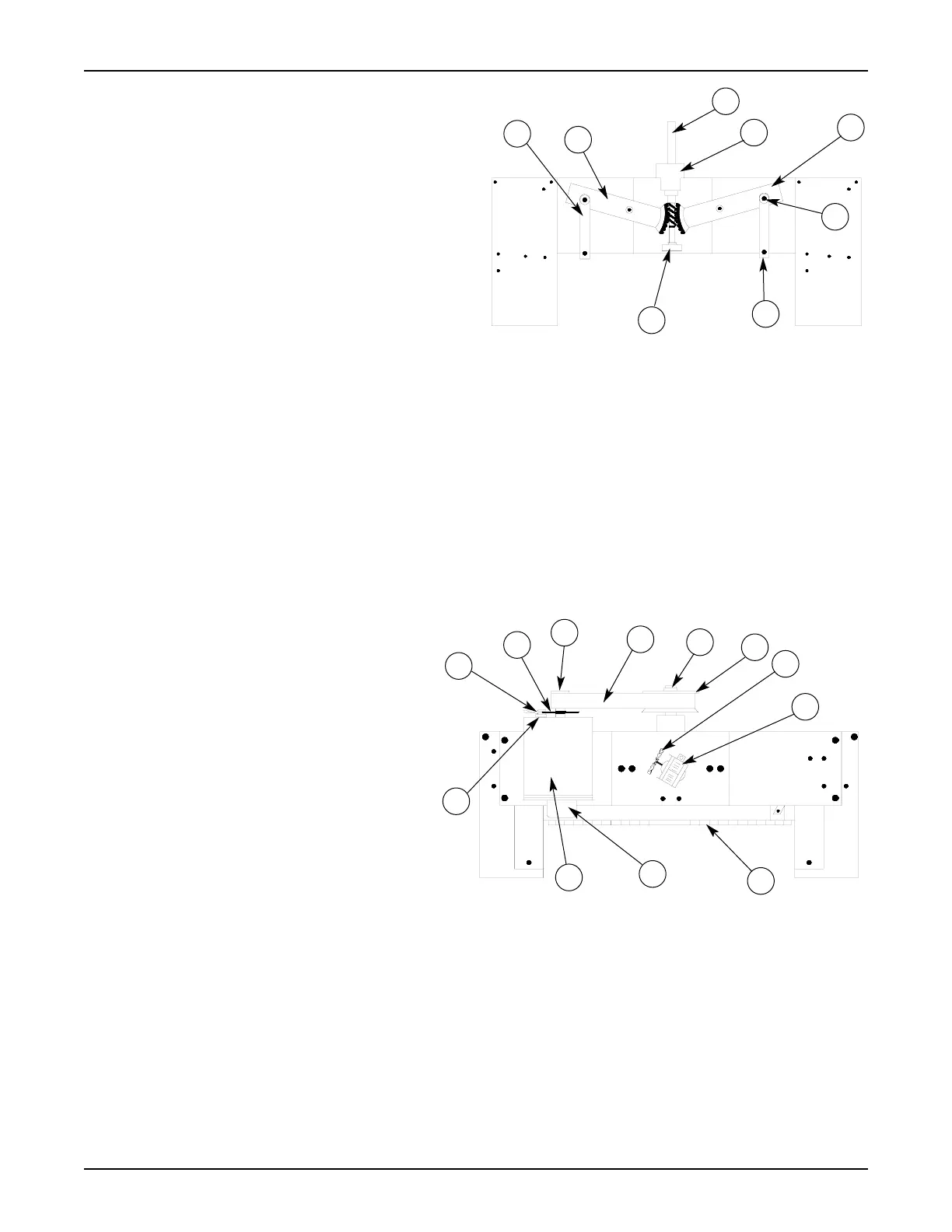

Clamp Drive, Front View
Item Part Number Qty. Description
1. W-O260050 1 Right Clamp Lever Link Arm
2. W-A260175 1 Left Clamp Lever Assy
3. W-O260057 1 Clamp Drive Shaft
4. M-S020001 1 30mm Ball Thrust Bearing
M-S048010 1 Grease Fitting
M-S010002 2 5100-37 Retaining Ring
M-S011001 1 3/16"x1 1/2" Key
M-S010035 1 Internal Retaining Ring
M-S001084 1 4-40x5/16 Phil Pan Head Screw
W-O260056 1 Thrust Washer
5. W-A260255 1 Right Clamp Lever Ass’y
6. W-O260253 1 Eccentric Bushing
7. W-O260254 1 Right Link Arm
8. W-A260058 1 Lower Bearing Block
M-S013021 1 Oilite Bearing
W-O260058 1 Lower Bearing Mount
Not Illustrated
W-O260066 2 Clamp Lever Bushing
Clamp Drive, Rear View
Item Part Number Qty. Description
1. WRA021018 1 Clamp Drive Motor
M-S011004 1 1/8" x 1" Key
2. W-O260076 1 12L Clamp Motor Pulley
3. M-S025003 1 300XL100 Timing Belt
4. M-S019030 1 Drive Screw Collar
M-S002007 2 10-32x3/16 Set Screw
5. W-A260071 1 Clamp Pulley Assy
M-S003004 2 1/4"-20x1/2" Hex Hd Screw
M-S008029 2 1/4"ID Internal Lock
Washer
M-S63751051 2 1/4"-20x1/2" Button Hd
Screw
W-O260068 1 Lower Pulley Hub Assy
W-O260074 1 Upper Pulley Flange
W-O260075 2 Bumper
6. M-S037061 1 Fan Blade
7. M-S021014 1 Cooling Fan Motor, 230VAC
8. W-A210061 1 Clamp Assy (21" EC)
W-A260061 1 Clamp Assy (26" EC)
9. WRA045252 2 15lb, 24VDC Brake
10. W-O260305 1 Clamp Encoder Bracket
11. WRA260961 1 Clamp Mtr Encoder Assy
12. W-O260304 1 Clamp Motor Encoder
Not Illustrated
W-O260252 1 Clamp Fan Motor Bracket
M-O850421 1 25 MFD 440V Cap
PowerLine
TM
Operating Instructions
20
6
7
8
5
4
3
2
1
5
4
11
10
12
6
8
7
9
1
2
3
