2.

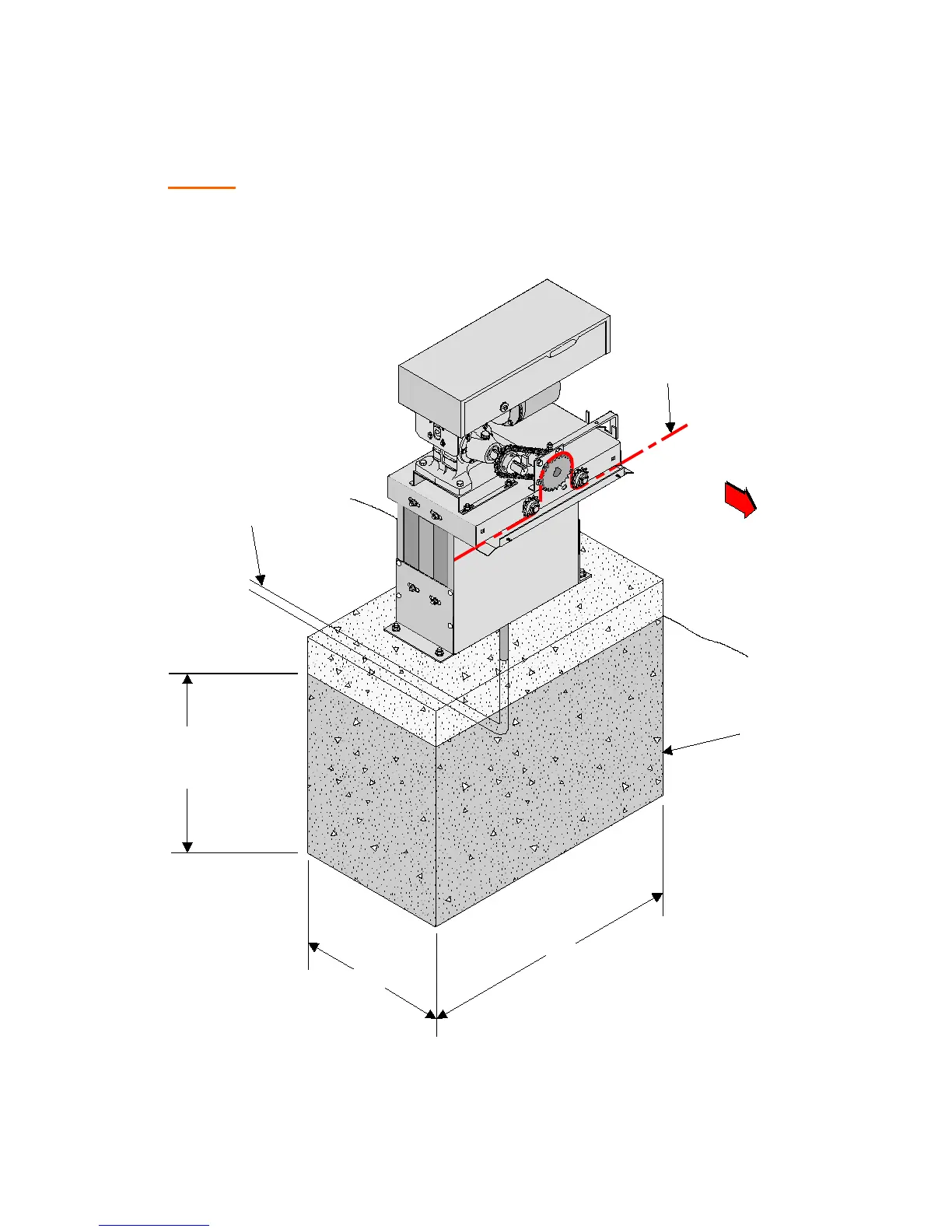

Using ½” hardware (Not Supplied) bolt as
sembled unit to the pad,
being sure to alig
n operator parallel to the fence.
NOTE:
Sprockets must face
the fence.
In
Gr
ound
De
pth As
R
equi
red
By
Loc
al C
ode
Con
dui
t D
ept
h
As
Re
quir
ed
By
Loc
al C
ode
Cem
ent
Pad
Drive
Cha
in
14
"
30
"
FE
N
CE
15
17
Table of Contents
U/L Installation and Safety Considerations
4
System Designer Safety Instructions
5
Installer Safety Instructions
6
During Installation
7
After Installation
8
End-User Safety Warnings
9
Installation Instructions
14
Installation of Cement Pad
15
Attaching Drive Chain
17
Master/Slave Installation
23
Control Board
24
Audible Pre - Move Warning
27
Control Connections
34
Loop Installation
39
Safety Device Connections
42
Inherent Obstruction Sensing Device
42
Secondary Obstruction Sensing Devices
43
Registration Information
51
