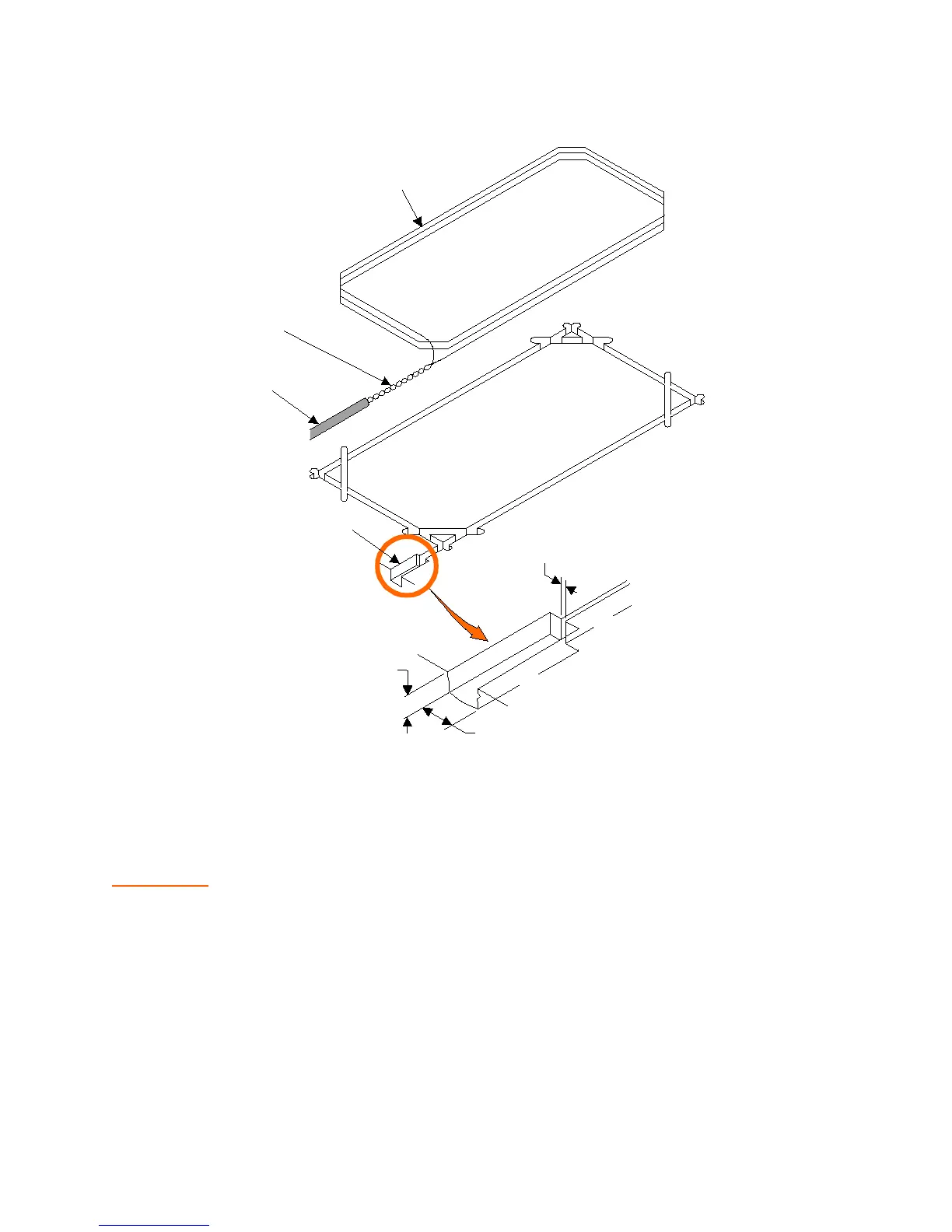

2. Cut the required groove as shown in the diagram below at the locations
laid out in Step #1.
3
. Leaving enough wire for the LEAD IN, insert the specified number of
turns of wire in the cut grooves. (See chart).
CAUTION: Be careful not to damage the wire insulation during
installation.
4. After completing the required number of loop turns, twist the ends
together at the rate of 6 turns per foot to form the LEAD-IN.
5. Seal the LEAD-IN wire in the conduit to prevent moisture seepage into
the conduit.
6. Fill over the loop wires in the groove with a recommended loop sealant.
Contact your distributor for available sealants.
3/16" To 1/4"
1" To 2"
1" To 2"
Loop Wire
(See Chart)
Lead In Wire
(Twisted At 6
Turns Per Foot)
1/2" Conduit
Conduit Cut
