Assembly (Continued)

• Save all instructions

If you need assistance or find any parts missing, CALL

TOLL FREE: 1-800-737-2112.

INSTALL THE TINES (See Figure 5)

1. Slide the tines onto the tine axle. Install the internal tines

first. Sharp edge of the front and top tines should face

down and forward to till the ground. Tighten the M10 x 50

bolt with lock nut provided to secure the inside tines.

2. For wide 21” tilling, install the outside tines in the way

that the long half of the tine tube faces towards the

inside tines. For narrow 16” tilling, install the outside

tines in a way that the short half tine tube faces towards

the inside tines.

3. Tighten the M8 x 50 bolt with the locknut provided to

secure the outside tines.

INSTALL THE OUTSIDE TINE SHIELDS (See Figure 5)

1. Each outside tine shield can be installed on either side

of the main tine shield.

2. Place the outside tine shield underneath the main tine

shield and align the holes.

3. Secure the outside tine shield to the main tine shield

with (3) M6 x 16 bolts washers and lock nuts.

Sharp edge of tine should face down to the ground.

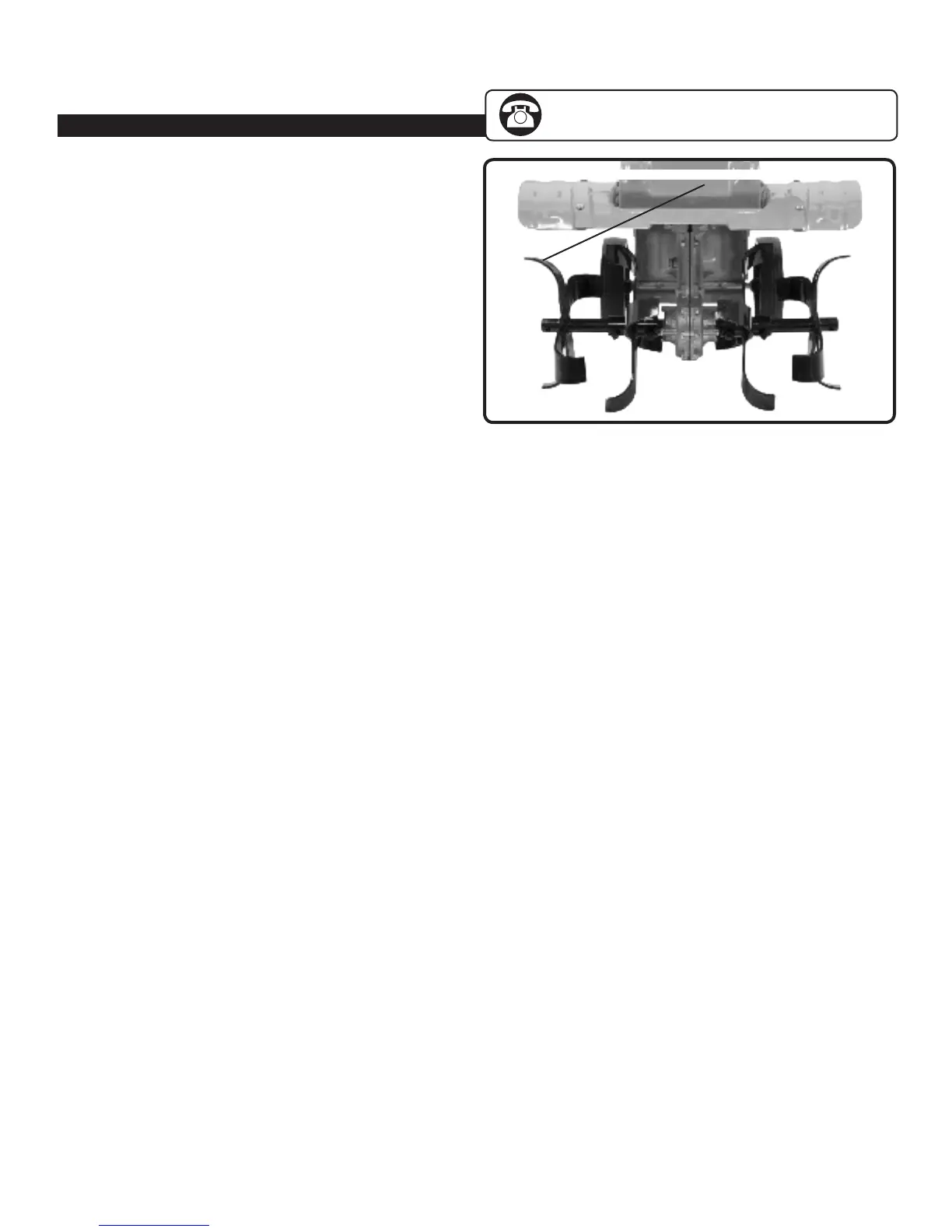

Figure 5
