21
GENERATOR ASSEMBLY AND MOUNTING
Generator is supplied with a wheel kit. If you want to install the wheel kit on your unit,
please follow the instructions below. If you will not be using the wheel kit, skip this section.
1. Place the bottom of the generator cradle on a flat, even surface. Temporarily place
unit on blocks to ease assembly.
2. Secure the support leg to the cradle with cap screws (M8 x 16) and lock nuts (M8)
(see figure 22 ).
3. Secure the axle to the cradle with cap screws (M8 x 16) and lock nuts (M8) (see figure
23).
4. Slide a wheel (with the inflation valve facing out) and a flat washer over the axle, then
secure the wheel with a retaining pin (see figure 24
、
Figure 25
、
Figure 26).
5. Position the handles on the cradle and attach with plastic flat washer, cap screws(M8
X 16) and lock nuts(M8)( Figure 27
、
Figure 28).
5. Check that all fasteners are tight and tires are inflated between 15-40 PSI.

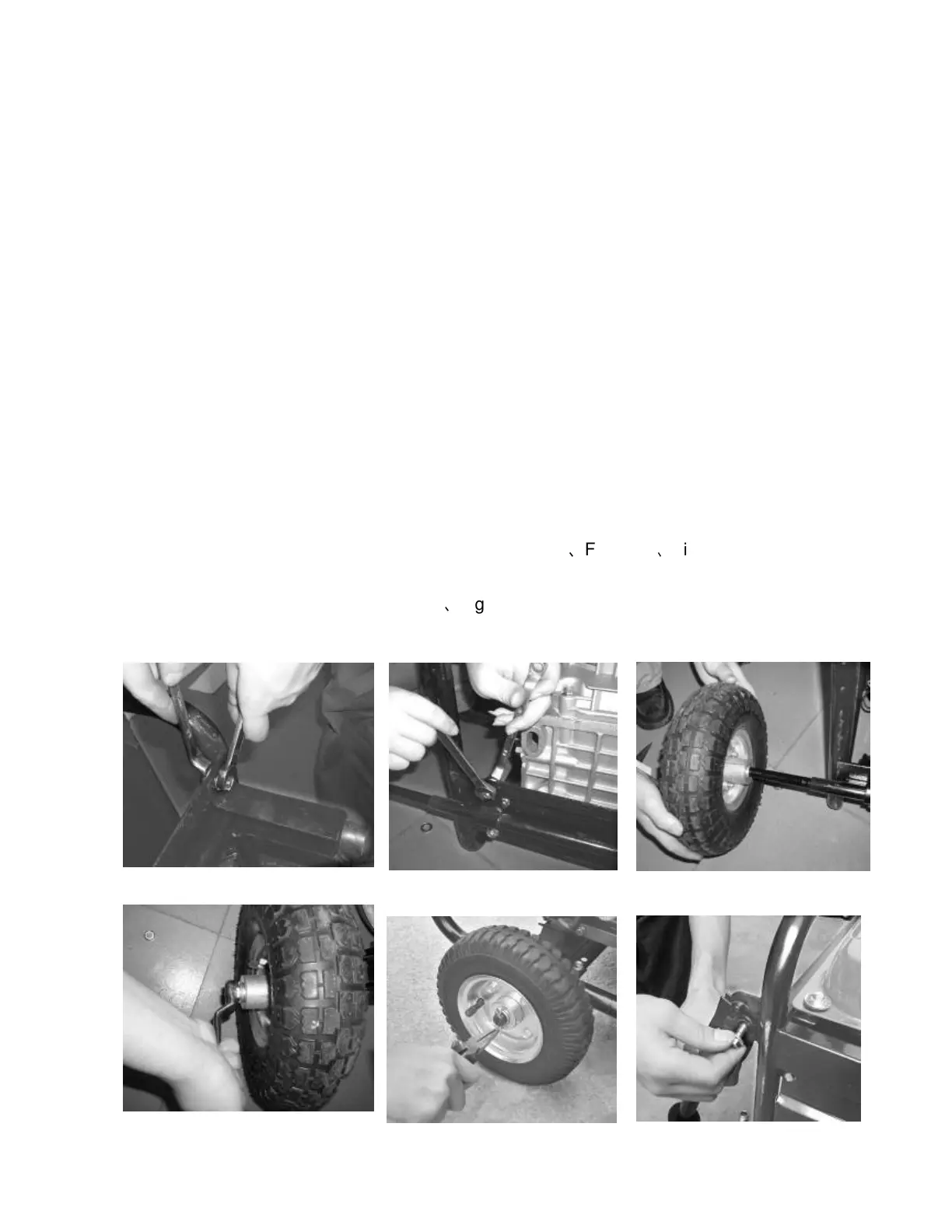

Figure 22 Figure 23 Figure 24
Figure 25 Figure 26 Figure 27
