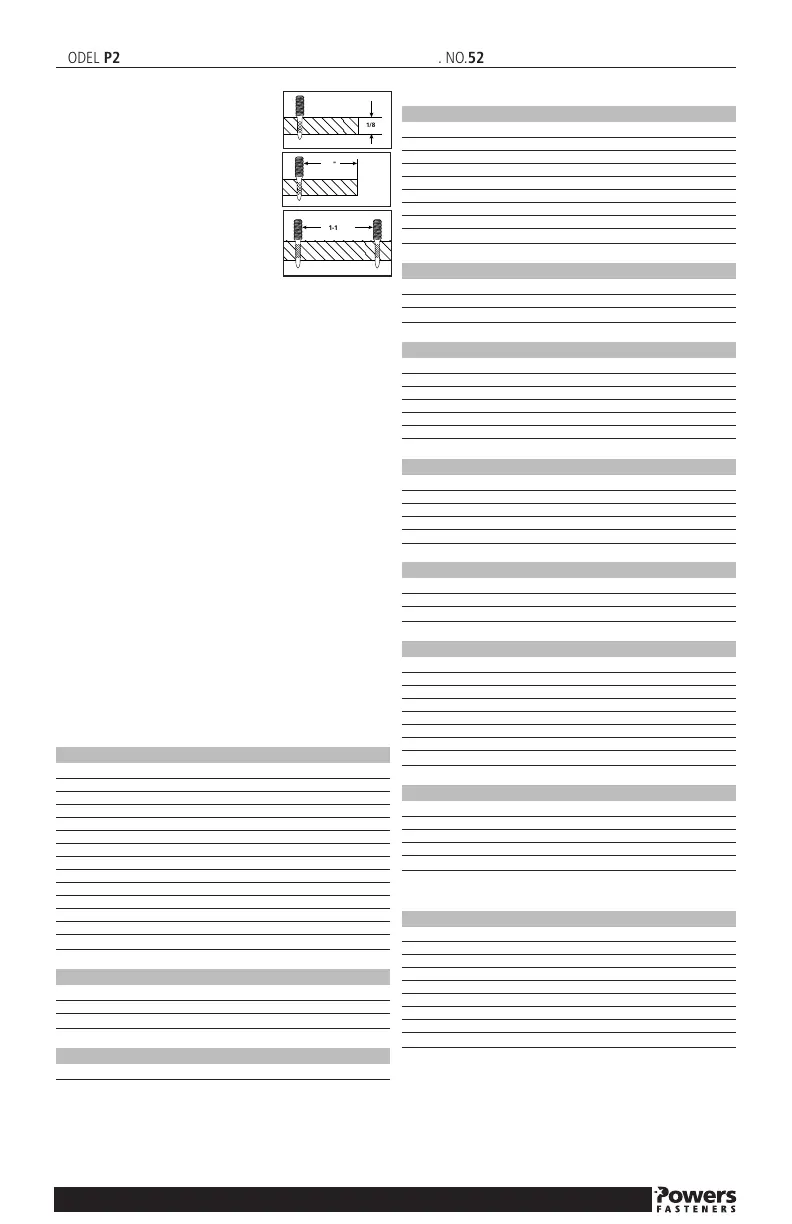

BASE MATERIAL THICKNESS
Steel base materials should be a
minimum of 1/8" in thickness.
EDGE DISTANCE
For installations in A 36 steel,
1/2" is the recommended minimum
edge distance.
SPACING
The recommended minimum
distance between fastenings is 1-1/2"
center to center for installations
in ASTM A 36 steel.
FASTENER LENGTH SELECTION IN STEEL
For permanent applications when using pins in steel, first
determine the thickness of the fixture to be fastened. To this, add
the thickness of the steel base material plus a minimum of 1/4"
to allow for proper point penetration. This will be the minimum
fastener shank length required. Do not select a fastener length
longer than that required for the application. An excessively long
shank can burnish or polish the hole created in the steel resulting
in a reduction in load capacity.
For removable applications with threaded studs, the shank
length required is equal to the thickness of the steel base
material plus a minimum of 1/4" to allow for proper point
penetration. This will be the minimum fastener shank length
required. Do not select a shank length longer than that required
for the application. An excessively long shank can burnish or
polish the hole created in the steel resulting in a reduction in load
capacity. To determine the minimum threaded length, add the
thickness of the fixture and the nut / washer thickness. The nut
and washer thickness is equal to the nominal thread diameter.
Do not over tighten threaded studs, the maximum tight-ening
torque is listed in the table below. Use of a nut setter is
recommended to reduce the possibility of over tightening the
fasteners. For critical applications, perform a job site test.
Fastener Selection Guide
.300 HEAD DIAMETER DRIVE PINS
CAT. SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH BOX CTN. DIA. DIA. 100
50012 1/2" K 100 5000 .300 .143 .5
50016 5/8" K 100 5000 .300 .143 .5
50022 3/4" 100 5000 .300 .143 .5
50026 1" 100 5000 .300 .143 .6
50030 1-1/8" 100 1000 .300 .143 .7
50032 1-1/4" 100 1000 .300 .143 .8
50034 1-1/2" 100 1000 .300 .143 .9
50036 1-3/4" 100 1000 .300 .143 1.1
50038 2" 100 1000 .300 .143 1.2
50040 2-1/4" 100 1000 .300 .143 1.2
50042 2-3/8" 100 1000 .300 .143 1.3
50044 2-1/2" 100 1000 .300 .143 1.4
50046 2-3/4" 100 1000 .300 .143 1.6
50048 3" 100 1000 .300 .143 1.9
.300 HEAD DIAMETER DRIVE PINS WITH TOP HAT
CAT. SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH BOX CTN. DIA. DIA. 100
50136 1/2" K 100 5000 .300 .143 .5
50138 5/8" K 100 5000 .300 .143 .5
50144 1" 100 5000 .300 .143 .6
.300 HEAD DIAMETER STEP SHANK PINS
CAT. SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH BOX CTN. DIA. DIA. 100
50158 3/4" Step Shank 100 1000 .300 .143/130 .5
50159 1" Step Shank 100 1000 .300 .143/130 .6
.
300 HEAD DIAMETER DRIVE PINS -MASTER PACK
CAT. SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH BOX CTN. DIA. DIA. 100
50980 1/2" K 1000 5000 .300 .143 .5
53300 5/8" K 1000 5000 .300 .143 .5
5
1040 3/4" 1000 5000 .300 .143 .5
51100 1" 1000 5000 .300 .143 .6
51160 1-1/4" 1000 5000 .300 .143 .8
5
1340 1/2" K TH 1000 5000 .300 .143 .5
53400 5/8" K TH 1000 5000 .300 .143 .5
51400 3/4" TH 1000 5000 .300 .143 .5
5
1520 1" TH 1000 5000 .300 .143 .6
.300 HEAD DIAMETER DRIVE PINS WITH 3/4" WASHER
CAT. SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH BOX CTN. DIA. DIA. 100
50070 3/4" 100 1000 .300 .143 1.6
5
0080 2-1/2" 100 1000 .300 .143 2.5
50082 3" 100 1000 .300 .143 2.8
.300 HEAD DIAMETER DRIVE PINS WITH 7/8" WASHER
CAT. SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH BOX CTN. DIA. DIA. 100
5
0090 1" 100 1000 .300 .143 1.9
50092 1-1/4" 100 1000 .300 .143 2.0
50094 1-1/2" 100 1000 .300 .143 2.1
5
0096 2" 100 1000 .300 .143 2.4
50098 2-1/2" 100 1000 .300 .143 2.7
50100 3" 100 1000 .300 .143 3.0
.300 HEAD DIAMETER DRIVE PINS WITH 1" WASHER
CAT. SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH BOX CTN. DIA. DIA. 100
50108 1-1/4" 100 1000 .300 .143 2.2
50110 1-1/2" 100 1000 .300 .143 2.3
50112 2" 100 1000 .300 .143 2.6
50114 2-1/2" 100 1000 .300 .143 2.9
50116 3" 100 1000 .300 .143 3.2
.300 HEAD DIAMETER DRIVE PINS WITH 1-7/16" INSULATION WASHER
CAT. SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH BOX CTN. DIA. DIA. 100
50122 1-1/2" 100 1000 .300 .143 2.1
50126 2-1/2" 50 500 .300 .143 2.7
50132 3" 50 500 .300 .143 3.0
1/4"-20 THREADED STUDS
CAT. THREAD SHANK STD. STD. HEAD SHANK WT./
NO. LENGTH LENGTH BOX CTN. DIA. DIA. 100
50320 1/2" 1/2"K 100 5000 1/4" .143 .8
50322 3/4" 1/2"K 100 1000 1/4" .143 1.1
50326 3/4" 3/4" 100 1000 1/4" .143 1.2
50328 1/2" 1" 100 1000 1/4" .143 1.2
50330 3/4" 1" 100 1000 1/4" .143 1.4
50334 1/2" 1-1/4" 100 1000 1/4" .143 1.4
50336 3/4" 1-1/4" 100 1000 1/4" .143 1.5
50338 1-1/4" 1-1/4" 100 1000 1/4" .143 1.7
.300 HEAD DIAMETER PINS WITH CEILING CLIPS
CAT. SHANK STD. STD. HEAD SHANK WIRE WT./
NO. LENGTH BOX CTN. DIA. DIA. HOLE 100
50363 1" 100 1000 .300 .143 0.278" 3.4
50364 1" 100 1000 .300 .143 0.278" 3.5
50368 1" 100 1000 .300 .143 0.278" 3.0
50370 1-1/4" 100 1000 .300 .143 0.278" 3.7
50374 1-1/4" 100 1000 .300 .143 0.278" 3.2
.300 DIAMETER HEAD DRIVE PINS WITH
BX CABLE STRAPS AND CONDUIT CLIPS
CAT. STD. STD. HEAD SHANK WT./
NO. DESCRIPTION BOX CTN. DIA. DIA. 100
50150 1" 100 1000 .300 .143 3.5
50152 1-1/4" 100 1000 .300 .143 3.7
50380 1/2" EMT 1-1/4" pin 100 1000 .300 .143 3.4
50381 1/2" EMT 1" pin TH 100 1000 .300 .143 3.3
50382 1/2" EMT 1" pin 100 1000 .300 .143 3.3
50384 3/4" EMT 1-1/4"pin 100 1000 .300 .143 3.5
50385 3/4" EMT 1" pin TH 100 500 .300 .143 3.4
50386 3/4" EMT 1" pin 100 1000 .300 .143 3.3
50388 1" EMT 1" pin TH 25 250 .300 .143 3.2
.

1/8"


1/2"



1-1/2"





MODEL P2201 CAT. NO.52006/Deluxe Kit 52007/Blister Pack
4 P2201
®
K=Knurled TH=Top Hat
