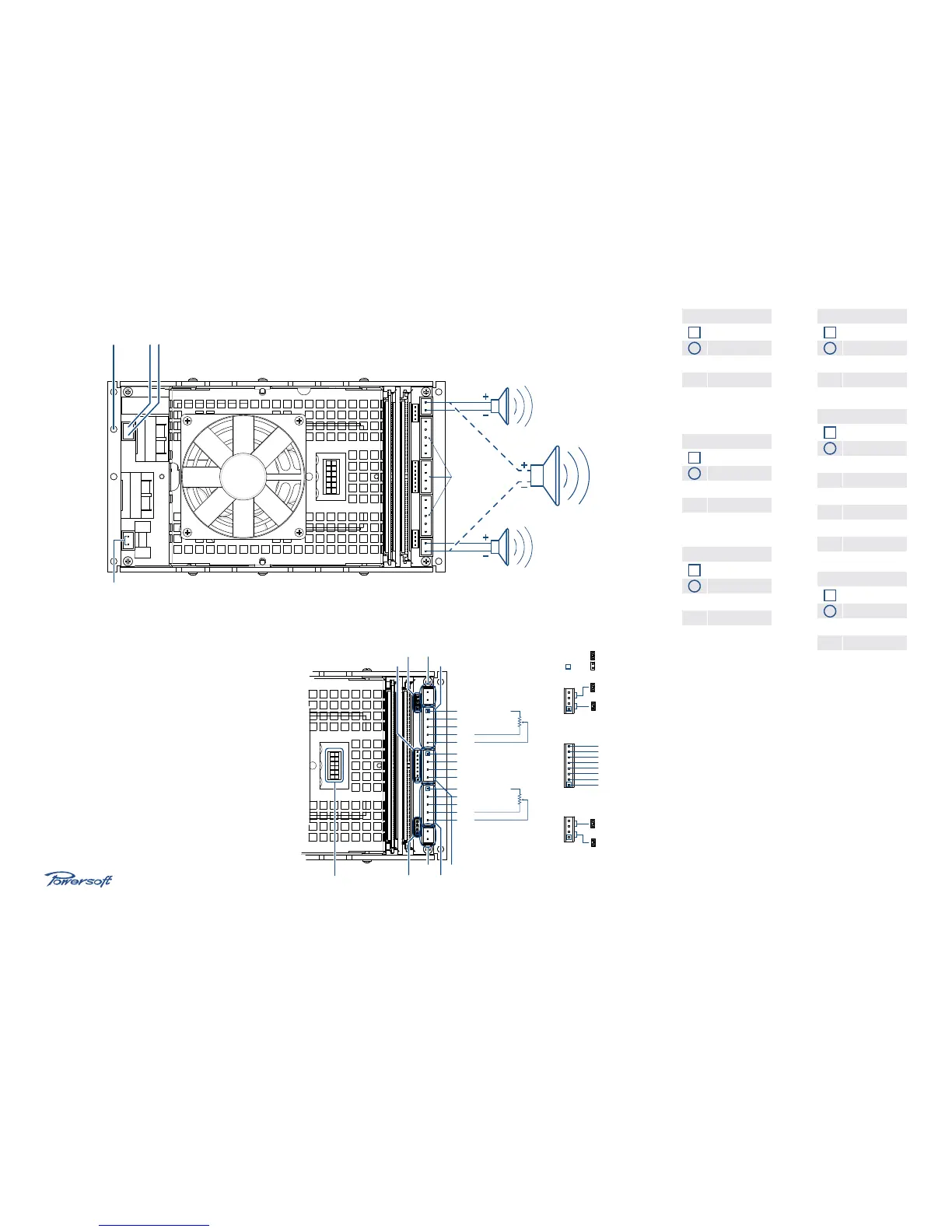

powersoft DigiMod 500 Quick Guide

OUT 1
OUT 2
AC MAINSGROUND
Place jumper to set
operating voltage to
115 V
AC
Phoenix
pitch: 5.08
SIGN. GROUND 1
BAL. INPUT 1 +
BAL. INPUT 1 –
BY11
BY21
SIGN. GROUND 2
AUX SUPPLY GND
MUTE
+12 VDC OUT
–12 VDC OUT
BAL. INPUT 2 +
BAL. INPUT 2 –
BY12
BY22
EARECT1
PROTECT1
TEMP
MUTE
+12VDC OUT
GND
PROTECT2
EARECT2
Remove jumper
to enable DSP
Remove jumper to
insert external circuit
Remove jumper to
insert external circuit
Remove jumper
to enable DSP
jumper not in place
jumper in place
DEFAULT SETTINGS
CN16
CN16
CN17
CN17 CN3
CN11
CN18
CN18
CN7
CN15 CN12
CN14
pin 1
Via Enrico Conti, 5
50018 Scandicci (FI)
www.powersoft-audio.com
CN16
1 EARECT2
2 PROTECT2
3 GND
4 +12VDC OUT
5 MUTE
6 TEMP
7 PROTECT1
8 EARECT1
CN12
1 SIGN. GND 2
2 BAL. INPUT 2 +
3 BAL . INPUT 2 –
4 BY12
5 BY22
CN11
1 SIGN. GND 1
2 BAL. INPUT 1 +
3 BAL . INPUT 1 –
4 BY12
5 BY22
CN17
1 BY31
2 BY21
3 BY21
4 BY11
CN18
1 BY12
2 BY22
3 BY22
4 BY32
CN14
1 AUX SUP. GND
2 MUTE
3 +12VDV
4 –12VDC
DigiMod 1000
powersoft_DM1000_quickguide_en_v2.0
