M SERIES | SERVICE MANUAL
Disconnect the amplier from the mains. If the amplier
has been connected to the mains in the last few minutes,
please proceed with attention as the internal capacitors
bank could be charged and harmful!
2. Opening the amplifier cover:
Remove the side support steel bars by unscrewing the
four bigger screws with a Phillips PH1 screwdriver. Then
remove the screw in the centre using a smaller Phillips
PH 0 screwdriver as portrayed in (Fig. 1).
(Fig. 1)

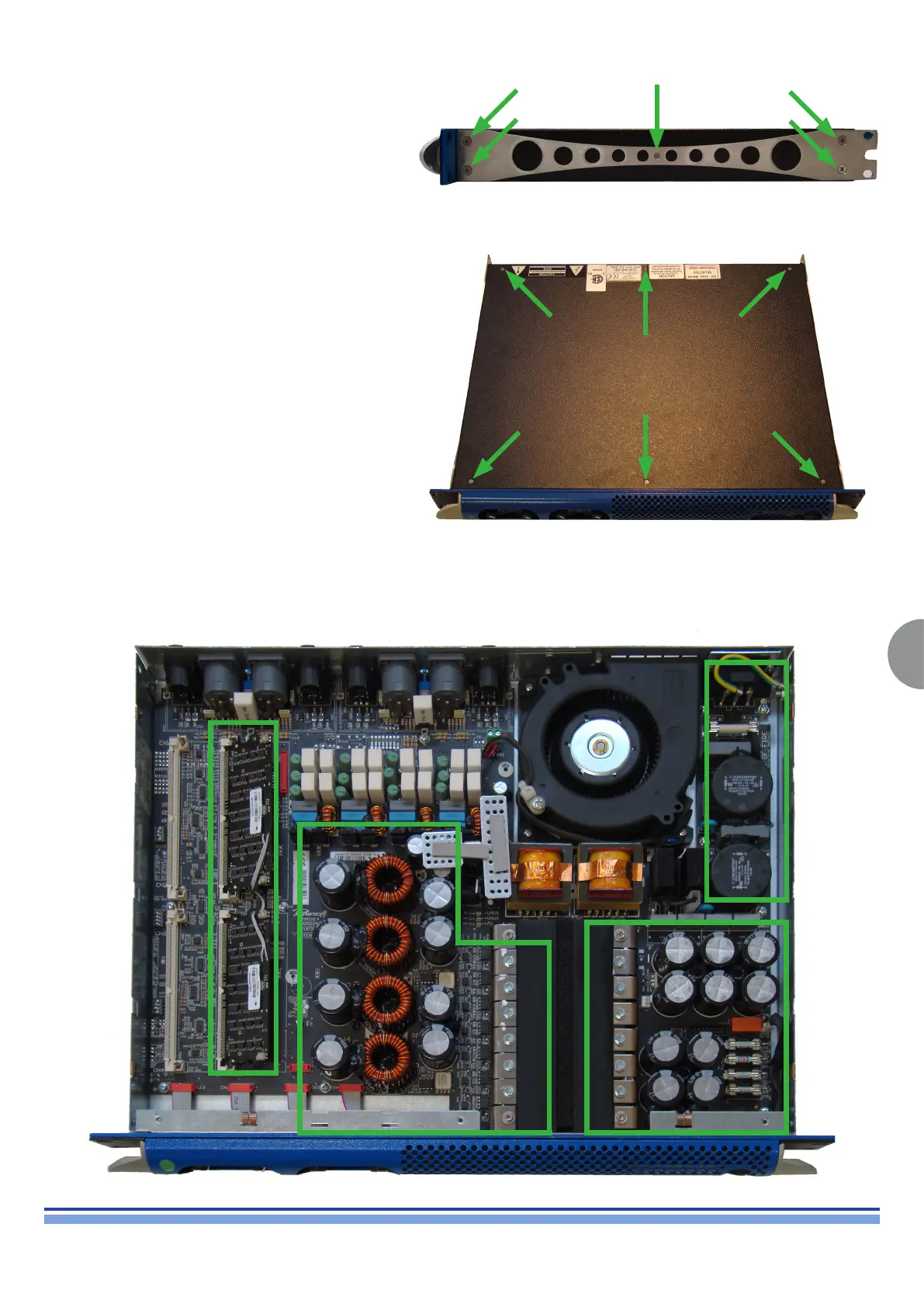

Remove the amplier’s cover by unscrewing the 6 screws
highlighted in (Fig. 2).
(Fig. 2)
PSU SectionPSU Section
AMP SectionAMP Section
CNTRL BoardCNTRL Board
Mains FilterMains Filter
