INSTRUCTIONS PL600/PL1000
8

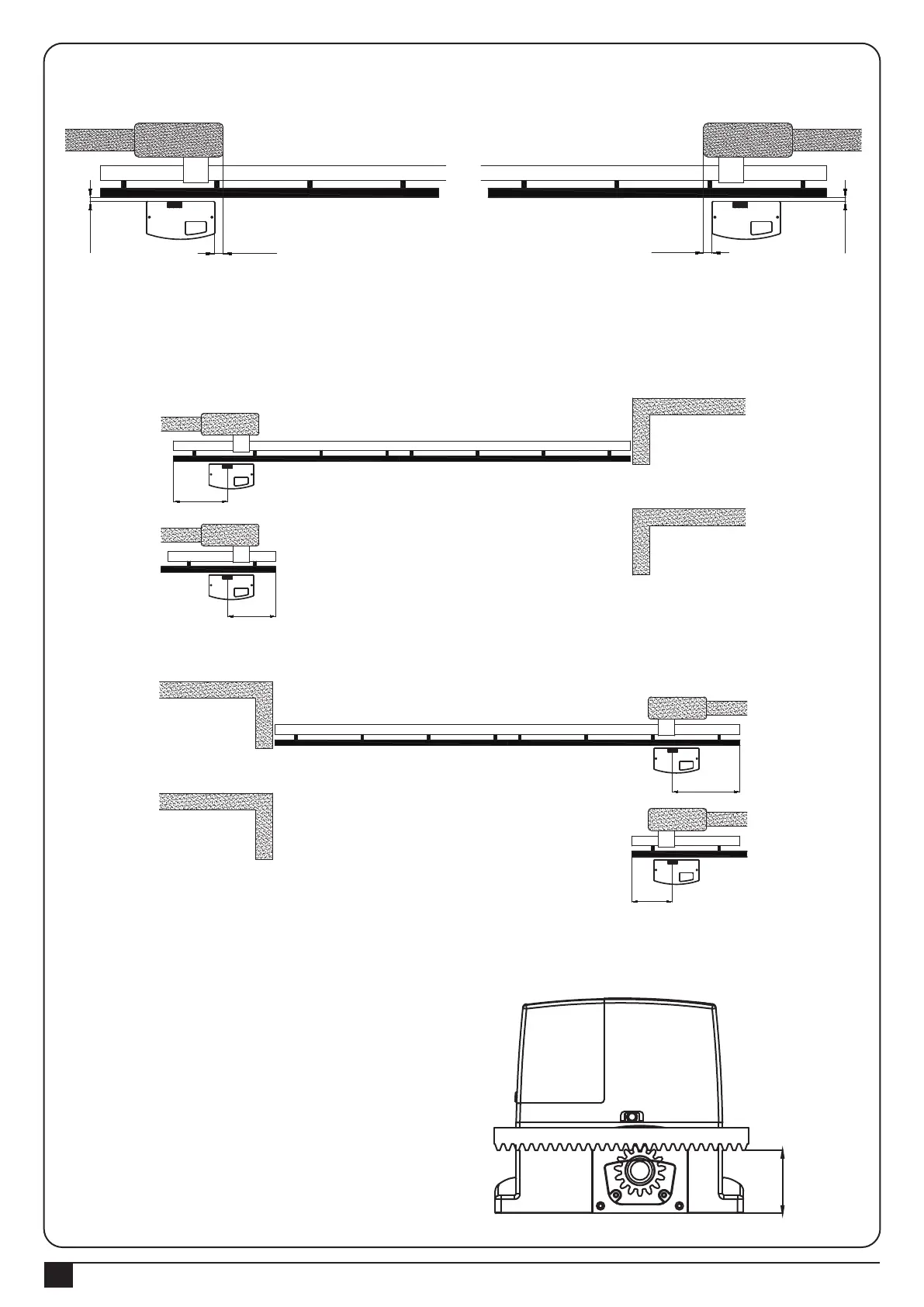

Figure 13
Figure 14 (Left opening)
Figure 15 (Right opening).
Figure 16
Gate with rack: the distances indicated in Figure 13.
10) To install the limit switch brackets, the rack must project from the axis of the pinion by distances indicated in
Figure 14 (Left opening) and Figure 15 (Right opening).
11) If the rack is already installed on the gate, make sure the position of the rack is fitted for the size limits indicated in
Figure16.
DX
SX
50mm50mm
10mm
10mm
170mm
200mm
170mm
200mm
86-88mm
