ARTICULATED ARM OPENERS USER MANUAL
11

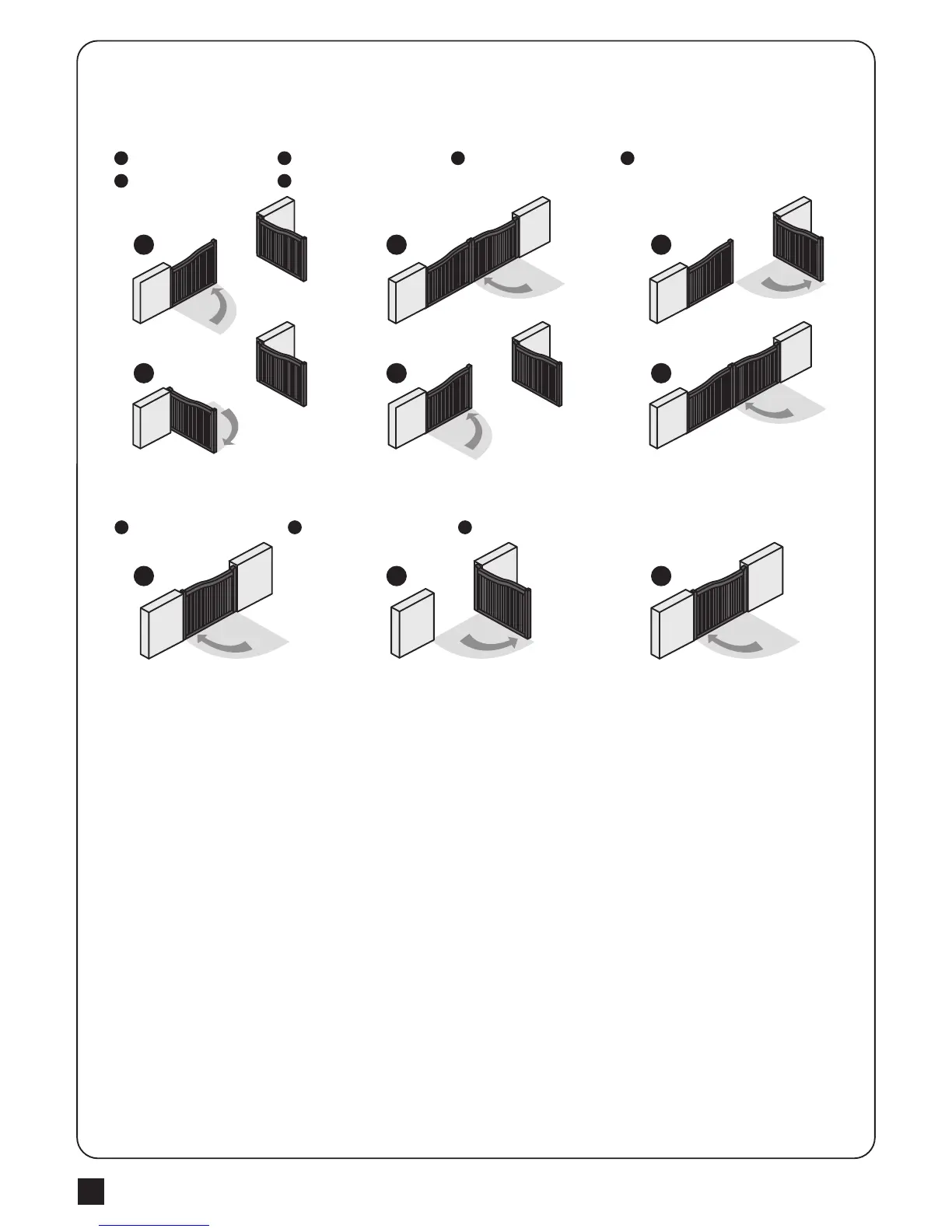

A. Dual Gate:
Slave Gate Close → Master Gate Close → Master Gate Open → Slave Gate Open →
Slave Gate Close → Master Gate Close
B. Single Gate :
Master Gate Close → Master Gate Open → Master Gate Close
1
1
5
2 3
1 2 3
4
6
2 3
1 2 3
4 5 6
Notes:
(A) System learning fails and needs to be learned again when an unpredictable interruption occurs.
(B) Once the system learning is completed, there is no need to proceed with the learning process again when there isa
power failure.
(C) The slave gate opens 3 seconds after the master gate opens and the master gate closes 3 seconds after the slave
gate closes.
(D) While using limit switch mode, please make sure the motor hit limit switch when it’s in deceleration speed.
figure 2(8)
