ARTICULATED ARM OPENERS USER MANUAL
10
2.4 System Learning Process
2.3 Transmitter Memorizing and Erasing Process
(A) Transmitter Memorizing: Press and hold the “RF-LEARN” button on the PCB for 1 second and then the blue LED
indicator on the RF board will be “ON”. Press A button for dual-gate installation ; press B button for single-gate
installation on the transmitter within 5 seconds. The transmitter learning is completed
when the blue indicator is “OFF”.
(B) Transmitter Memory Erasing: Press and hold the “RF-LEARN” button on the PCB for 10 seconds until blue LED off.
(C) One radio receiver can be memorized with 200pcs of transmitters.
Blue LED on receiver board: Blinks three times when remote learning is completed.

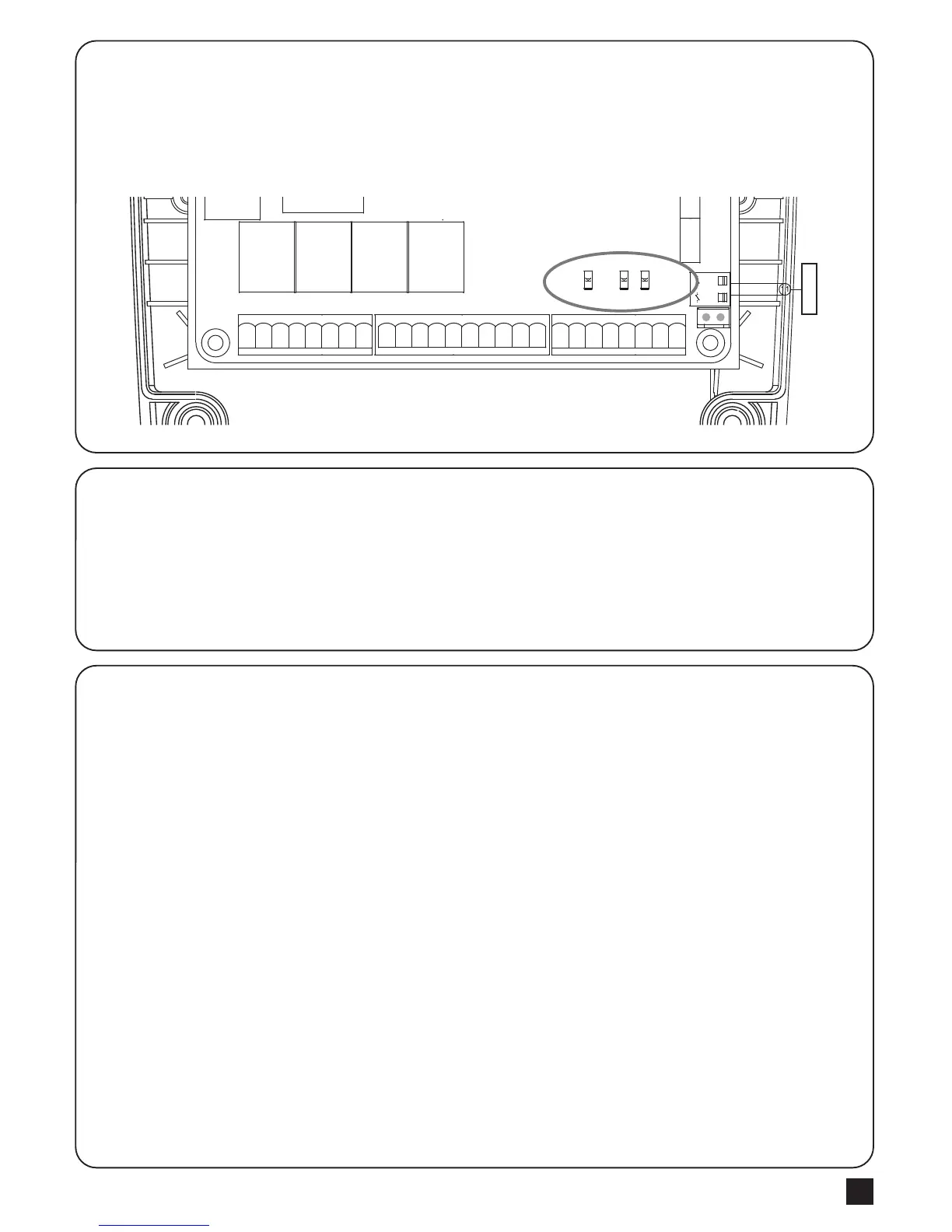

LED2 External device : If the switch of the key selector, or the push button is activated, LED2 will be on.
LED3 Photocells 1 : LED3 will be on when the first pair of the photocells are activated.
LED4 Photocells 2 : LED4 will be on when the second pair of the photocells are activated.
2.2 LED Indication
Step1: Connect the master motor wires to M1 terminals and the slave motor wires to M2 terminals correctly.
If only one gate is installed, the motor wires have to be connected to M1 terminals.
Step2: Set the function F2-1 for dual gate learning; or set the function F2-2 for single gate learning.
Step3: To start dual gate system learning.
To start dual gate system learning.
Press and hold the “UP+SET+DOWN” button on the PCB for 3 seconds. The LED display will show “LEA” and
“D-G”. Press the button (A) on the transmitter within 10 seconds to activate the system learning automatically.
LED display will show “ARN”, do not interrupt this procedure by pressing the transmitter or stop the gate. In
system learning mode, the gates will proceed with the following procedures figure 2(8). LED display will show
“RUN” once system learning completed.
To start single gate system learning.
Press and hold the “UP+SET+DOWN” button on the PCB for 3 seconds. The LED display will show “LEA” and
“S-G”. Press the button (B) on the transmitter within 10 seconds to activate the system learning automatically.
LED display will show “ARN”, do not interrupt this procedure by pressing the transmitter or stop the gate. In
system learning mode, the gates will proceed with the following procedures figure 2(8). LED display will show
“RUN” once system learning completed.
