2. Product description
2.1 Applications
Operation buttons: Remote Function key (RF),
Setting key (Set), UP key (Up), DOWN key (Down).
Connection terminal of Optional accessories
Radio receiver board
Fuse
The power indicator is on the bottom right of the display. When the power
is connected, the LED dot indicator is alight.
When entering to the power-saving mode, the LED power indicator is
flashing ( light for 0.5 second and then no light for 5 seconds )
Garage door opener is applied for residential automation of up and over doors and sectional doors and has to beoperated with
electricity and it’s forbidden to be operated by back-up batteries for normal use. Back-up batteries areonly allowed for emergent
operation when there is a power failure, and the carriage can be released by pulling the cord to move the door manually.
2). The indication of control panel
3). The LED indication
1
1
2
2
2
3
4
4
5
5
6
6
Garage Door Opener
Photocells (Optional accessories)
External Flashing Light (Optional accessories)
Key selector switch (Optional accessories)
Push Button (Optional accessories)
Transmitter
2.2 Description of the automation

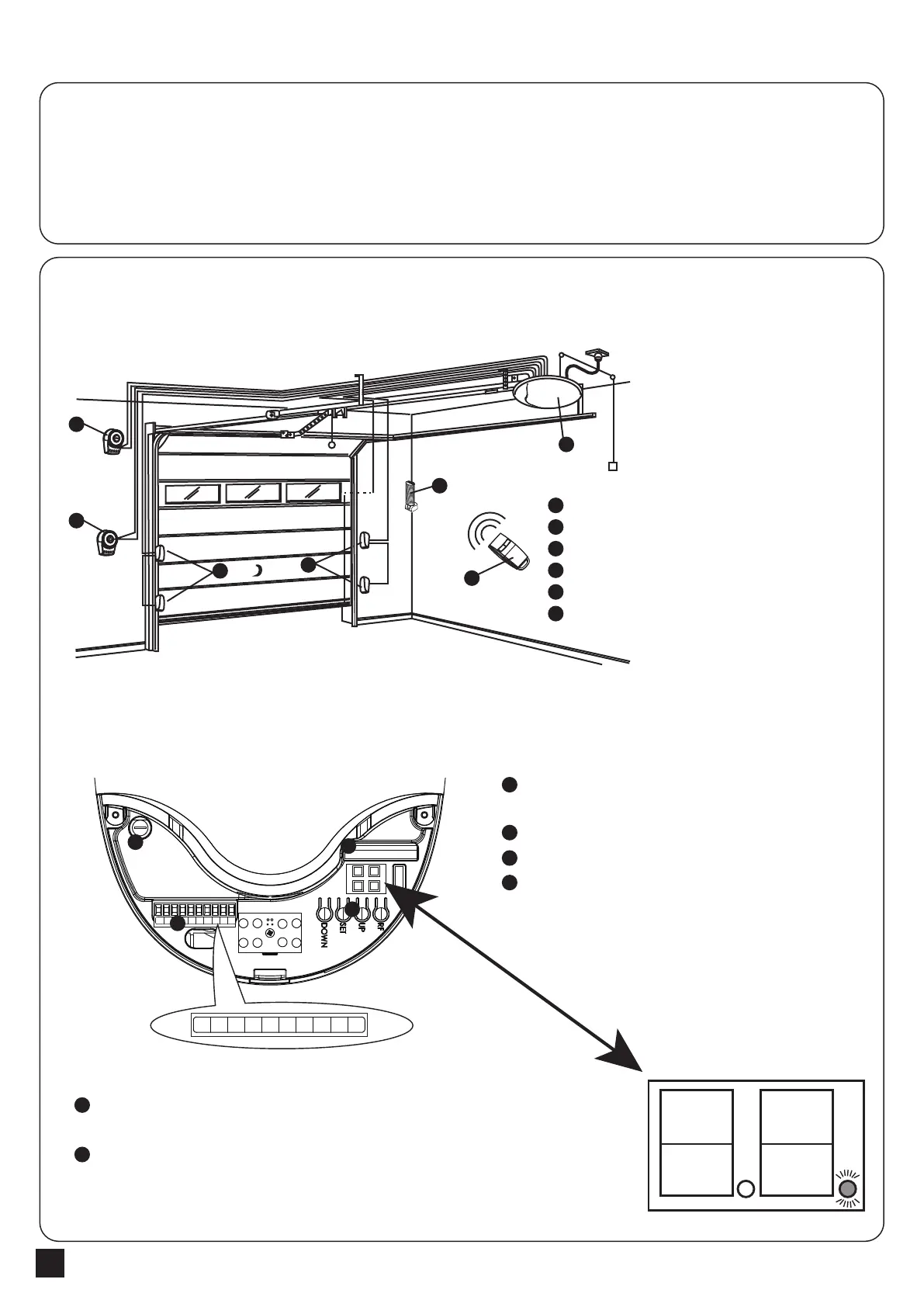

1). The following diagram of typical installation describes some terms and accessories of thedoor automation system:
1
1
2
2
3
4
3
Fuse
Receiver
Please set stopper in the open limit position of the rack and after the setup is completed, then garage door opener can
start the system learning process.
1
4
3
EXT- EXT+ LIT- LIT+ PB GND PH +24V GND +BATT
EXT- EXT+ LIT- LIT+ PB GND PH +24V GND +BATT
2
To Next Page
