PowerTech PG 120 User Manual

GARAGE DOOR OPENERS USER MANUAL
7

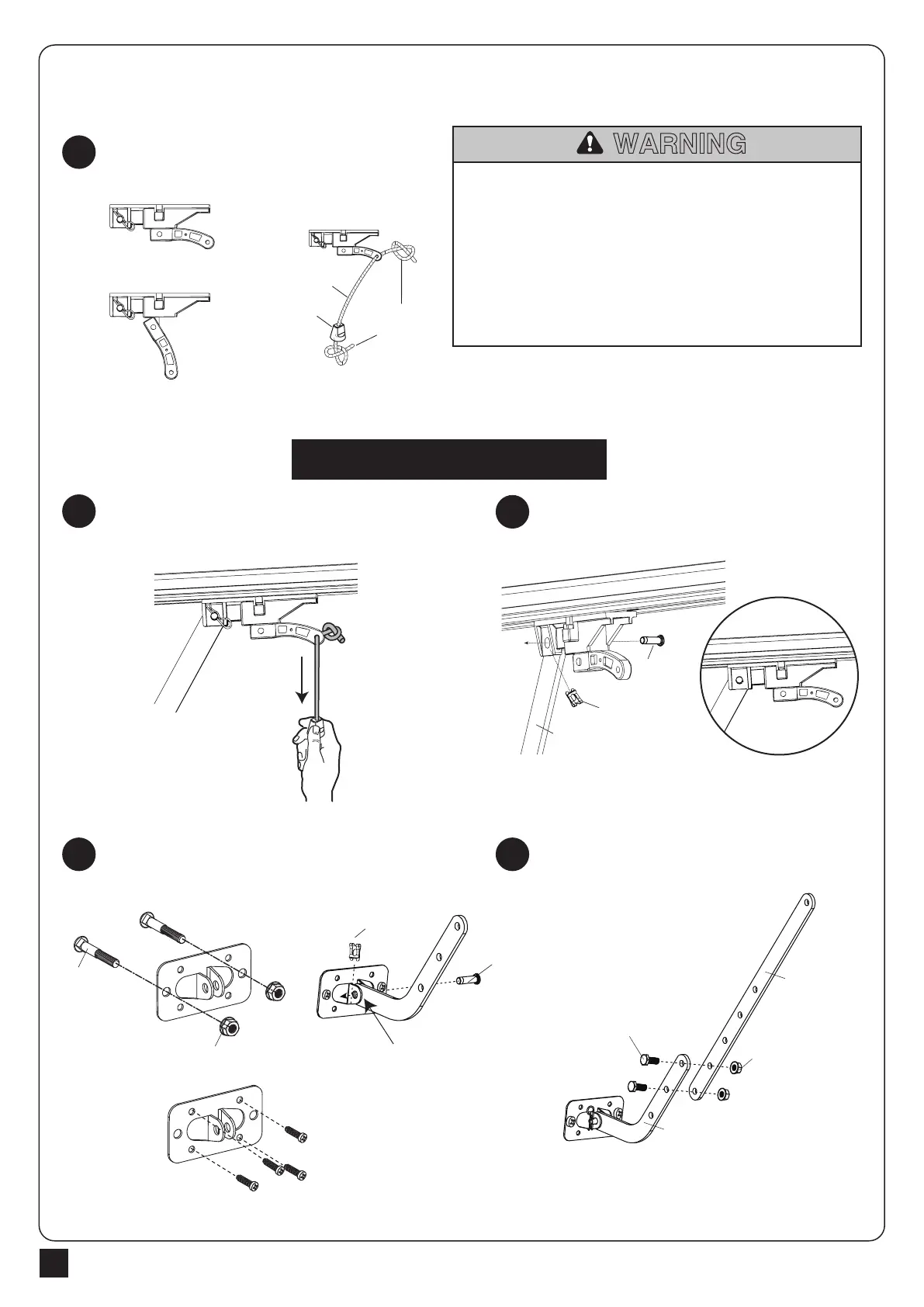

3.5 Connect release section to the garage door
50cm
23
19
21
Nut
Hex Bolt
14
15
Curved
Door Arm
Straight
Door Arm
ENGAGED
Bolt
OR
23
Nut
Secure handle with overhand knot
and heat seal rope.
Pull the (7) Release rope to disengage the
(8) Release trolley
Fasten the (12) Door bracket on the center of the
garage door. Connect (14) Curved door arm to (12)
Door bracket.
Connect (15) Straight door arm to Release trolley
Connect the (7) Release rope on the (8) Release
trolley
Connect (14) Curved door arm and
a straight door arm with bolts and nuts.
RELEASED
3
Pull Down
to Release
Trolley
Overhand
Knot
Rope
7 Emergency
Release Handle
1
NOTE: Handle should hang 6 feet (1.5 m) above floor.
Ensure that the rope and handle clear the tops of all
vehicles to avoid entanglement.
To prevent possible SERIOUS INJURY or DEATH from a falling
garage door:
• If possible, use emergency release handle to disengage trolley ONLY
when garage door is CLOSED. Weak or broken springs or
unbalanced door could result in an open door falling rapidly and/or
unexpectedly.
• NEVER use emergency release handle unless garage doorway is
clear of persons and obstructions.
• NEVER use handle to pull door open or closed. If rope knot
becomes untied, you could fall.
WARNING
4
5
CONNECT DOOR ARM TO TROLLEY
2
15
Straight
Door Arm
22
Clevis Pin
17
R-type pin
17
22
Connect Curved
Door Arm to
Door Bracket
Clevis Pin
R-type pin
