PowerTech PW200 User Manual

INSTRUCTIONS PW150/PW200
13
3.3.6 PH-1 Photocells
1). Decide the installation position of the photocells. See Figure 3.3.6 (1).
2). Unscrew the screws and secure the photocells on the post A, B or C. See Figure 3.3.6 (2) and (3).
5). Connect the four wires of the light and the antenna to the PCB terminals and place the wires into the conduit if
necessary. See Figure 3.3.5 (5).
6). Tighten the four screws back on the light base. Figure 3.3.5 (6)
7). Replacing the bulb set. See Figure 3.3.5 (7)
7.1) Unscrew the flashing light wires from the PCB terminals and make sure the power of the light is off.
7.2) Release the three screws (A)、(B)、(C) of the flashing light cover.
7.3) Separate the flashing light cover and replace the bulb set with a new one.
7.4) Tighten the three screws (A)、(B)、(C) of the flashing light cover.

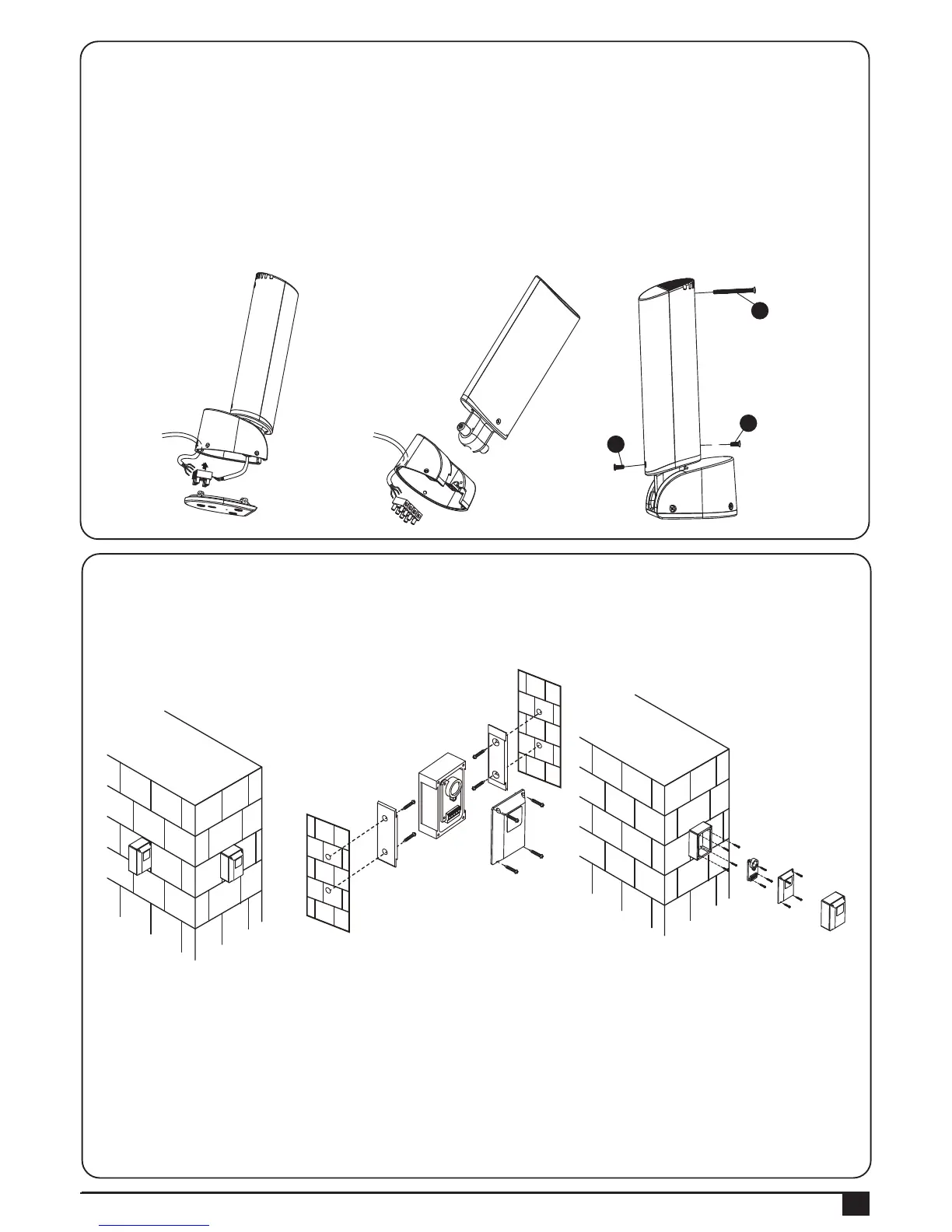

Figure 3.3.5 (5) Figure 3.3.5 (6) Figure 3.3.5 (7)
Figure 3.3.6 (1) Figure 3.3.6 (2) Figure 3.3.6 (3)
A
B
C
A
B
C

PowerTech PW200 Specifications

General

Brand	PowerTech
Model	PW200
Category	Gate Opener
Language	English
