Installation Instructions
5
area.
• Alcohol wipes can be used to remove oil and dirt
from the surface.
• Remove the wax protection paper from the
adhesive foam seal at the base of the antenna.
• Insert the antenna cables and threaded spigot
through the drilled hole.
• Push the antenna down onto the mounting
surface and make sure the antenna is placed
straight and correctly.
• Fit the plastic nut from the inside of the mounting
platform.
• Be careful not to over tighten the nut.
• You may use the 6 x (M4 x 10mm) brass threaded
inserts to further secure the antenna. Please refer
to the drilling template for hole locations. The use
of M4 threaded rod is the preferred fastening
method.
• The 10mm Threaded Spigot should be used
to secure the antenna to a surface structure
of 10mm thickness or less. Likewise, the 50mm
Threaded Spigot should be used to secure the
antenna to a surface structure of 50mm thickness
or less.

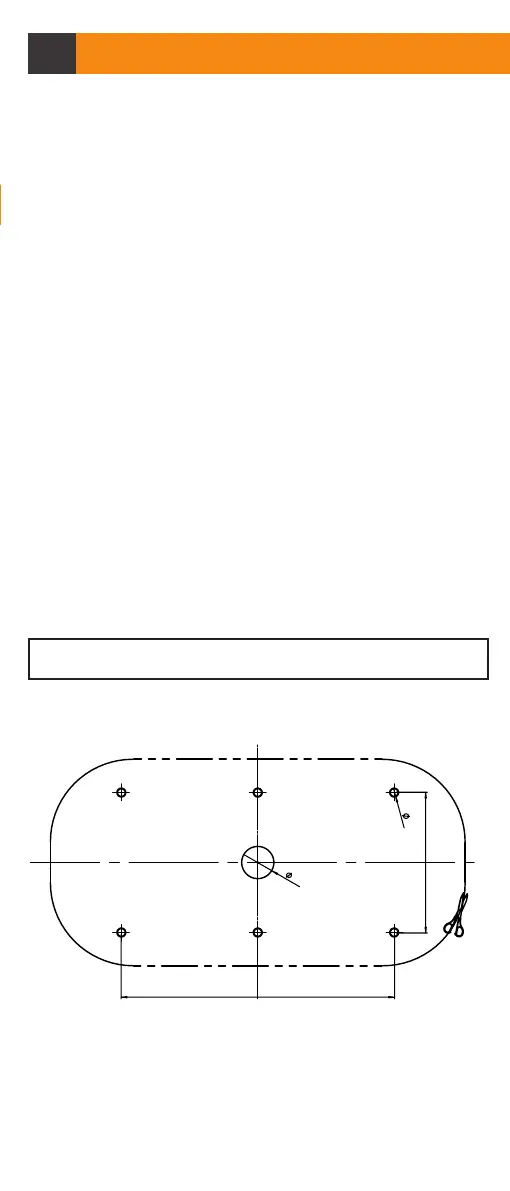

Download the Drilling template as shown in image below
22
5
165
85
C
L
C
L
Scale 1:1
Installation Drill Hole Template
