PPA DZ RIO - Technical Characteristics

6 7

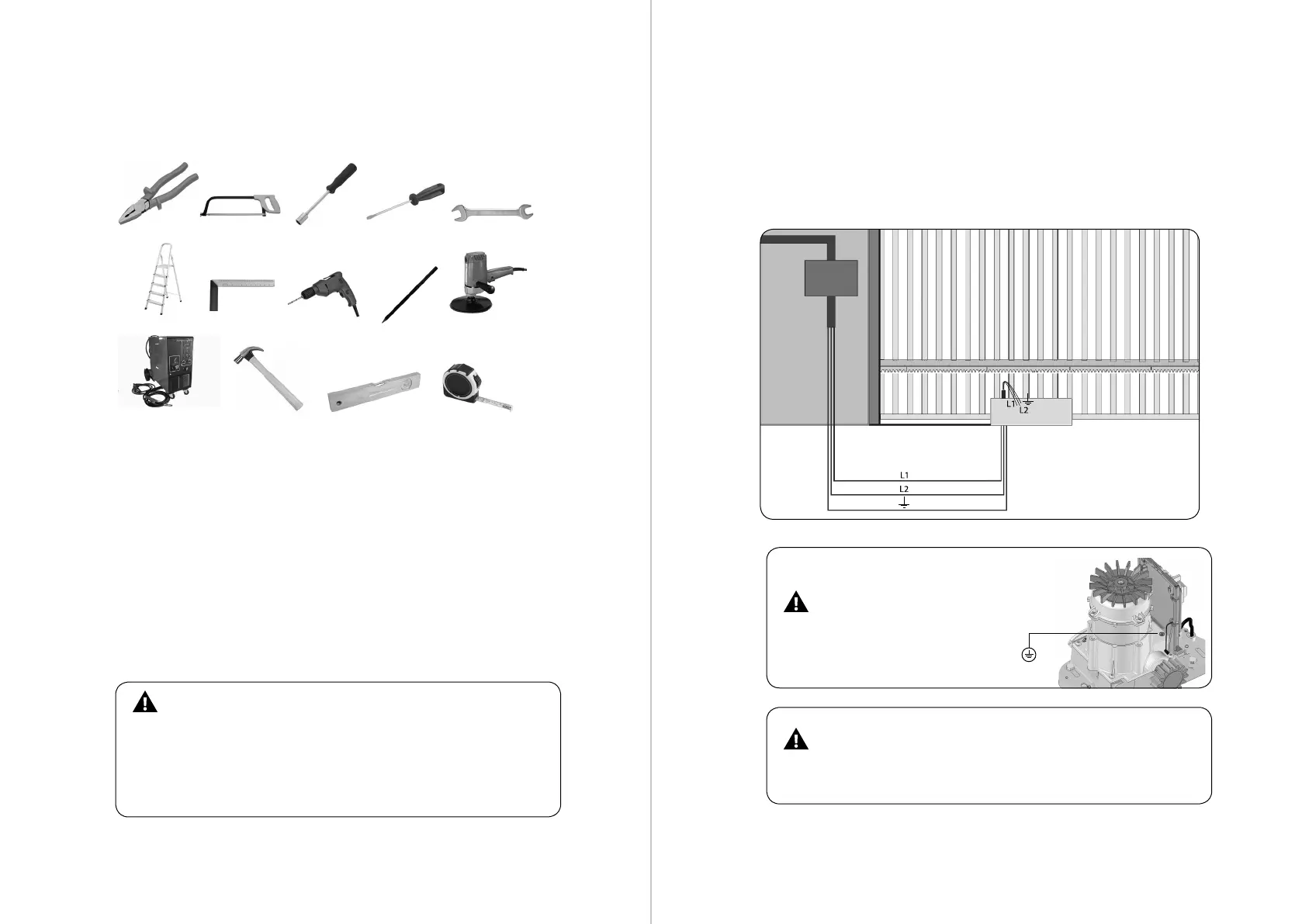

TOOLS REQUIRED FOR INSTALLATION
Below are some tools needed to install the operator:
ELECTRICAL INSTALLATION
For electrical installation, the network must contain the following characteristics:
- Mains 127 V or 220 V;
- Have 5 A circuit breakers in the electrical energy distribution box;
- 3/4” diameter conduits between the electrical power distribution box and the
total shutdown device;
- 3/4” diameter conduits between the total shutdown device and the operator
connection point;
- 1/2” diameter conduits for external and optional push buttons;
- 1/2” diameter conduits for safety photocells (optional).
-The cable for the xed wiring must comply with NBR NM 247-3;
-The power conductor, of a product for internal use, must be a
exible cable 3 x 0.75 mm²; 500 V, according to the NBR standard
NM 247-5;
-The power conductor, of a product for external use, must be a
exible cable 3 x 0.75 mm²; 500 V, as per the standard IEC 60245-
57.
PLIERS SAW ARCH CANNON KEY SCREWDRIVER FIXED KEY
LADDER
SOLDERING MACHINE HAMMER LEVEL TAPE
FRAME DRILLING
MACHINE
PENCIL SANDER
CARE WITH THE ELECTRICAL
INSTALLATION
To avoid damage to the wiring, it is important that all conductors are correctly
attached to the operator. The passage of the wiring must be done through conduits,
passing internally through the base of the oor, ensuring that none of the wiring
conductors is trapped and damaged.
It is mandatory that the
Ground terminal be connected
to the network Ground cable.
IMPORTANT
The instrument must be powered via a residual dierential current
(DR) device with a rated residual operating current exceeding 30
mA.
DISCONNECTION
MEANS
CONDUIT
