ANALOG LIMIT SWITCH INSTALLATION

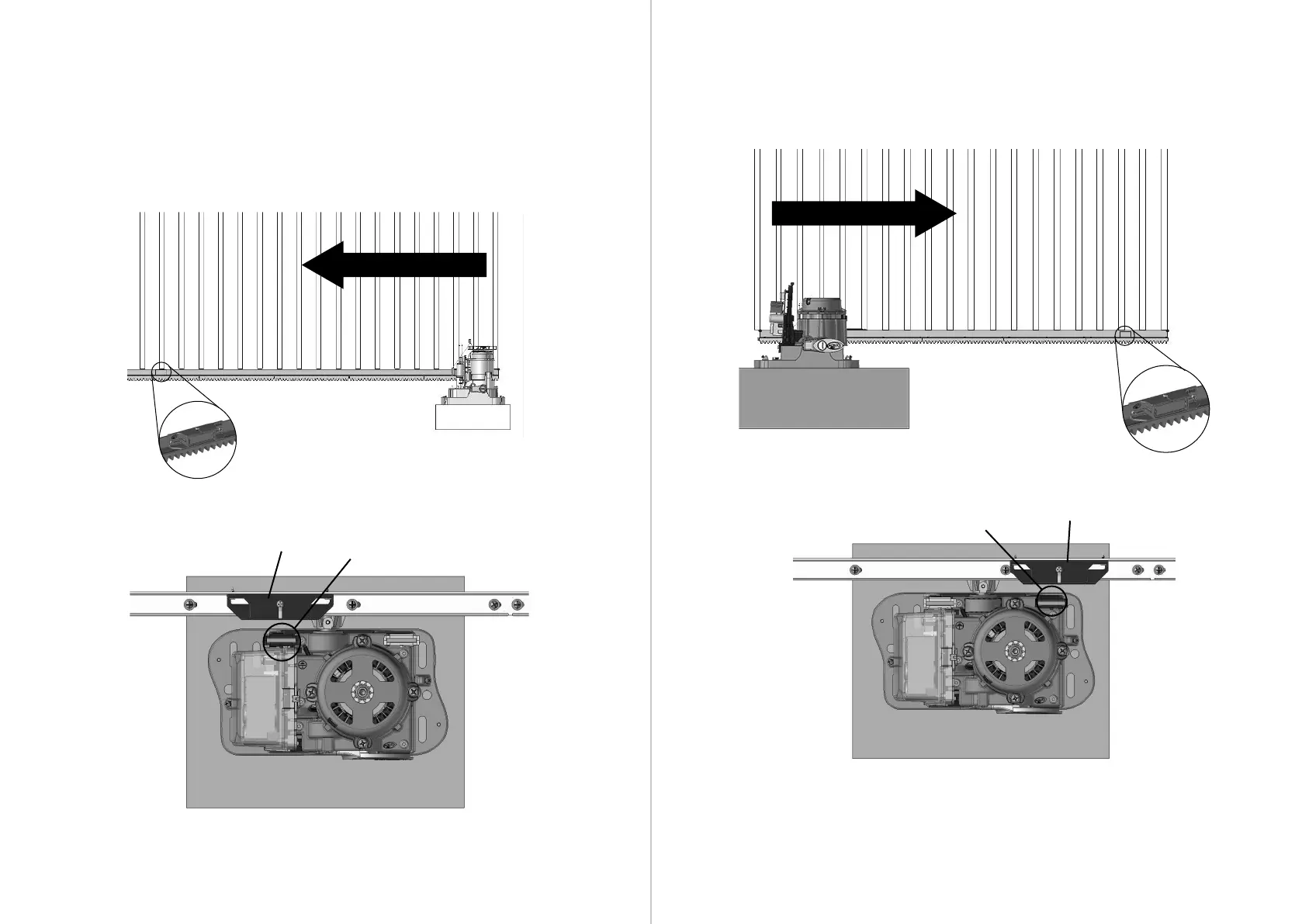

1st Step: With the gate closed, place the magnet support on the rack, positioned
facing the operator’s REED. This magnet will act as a closing limit switch.
MAGNET
SUPPORT
MAGNET SUPPORT
REED SUPPORT
UPPER VIEW
GATE CLOSING
2nd Step: Fully open the gate and place the other magnet support on the rack,
facing the operator’s REED. This magnet will act as the opening limit switch.
GATE OPENING
MAGNET
SUPPORT
MAGNET SUPPORT
REED SUPPORT
UPPER VIEW
