Zenex Plus User Manual

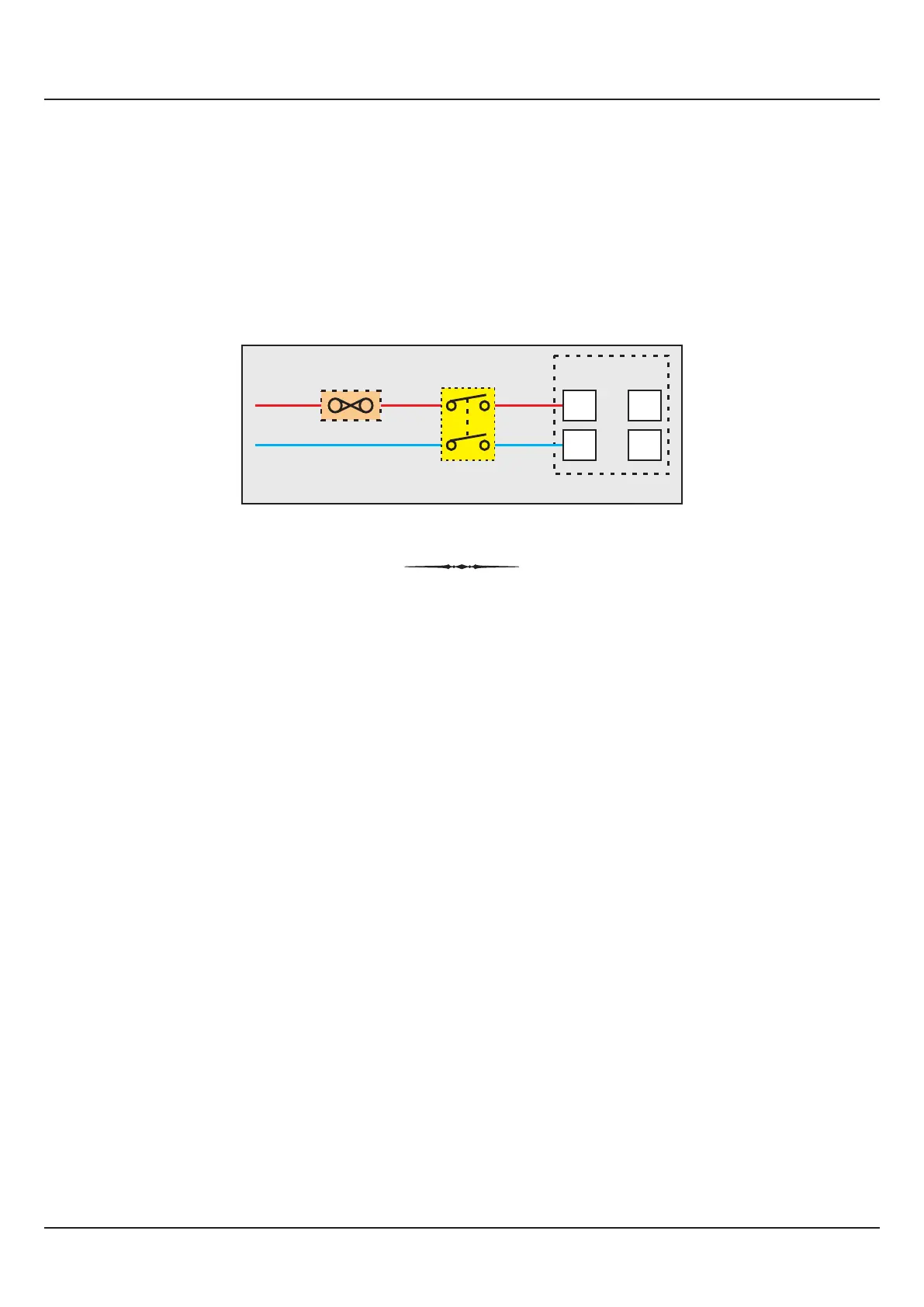

Figure 6.7
POWER SUPPLY
As standard, the is supplied with power connections suited for 8 to 264 VAC line supply. Use well-insulated module 5
copper conductor wire of the size not smaller than 0.5mm² for power supply connections ensuring proper polarity as
shown in Figure 6.7. module The is not provided with fuse and power switch. If necessary, mount them separately. Use a
time lag fuse rated 1A @ 240 VAC.
Line
Neutral
2 Pole
Isolating Switch
Fuse
Power Supply Terminals
21 L
22 N
26
27
New
Version
Old
Version
