PR electronics 5333 - IECEx Installation Drawing (Zone 0, 1, 2, 20, 21, 22, M1); IECEx Certificate and Hazardous Area; IECEx Terminal Parameters

5333QI01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2013-06-03
Version Revision
V1R0
0Page:
1/2

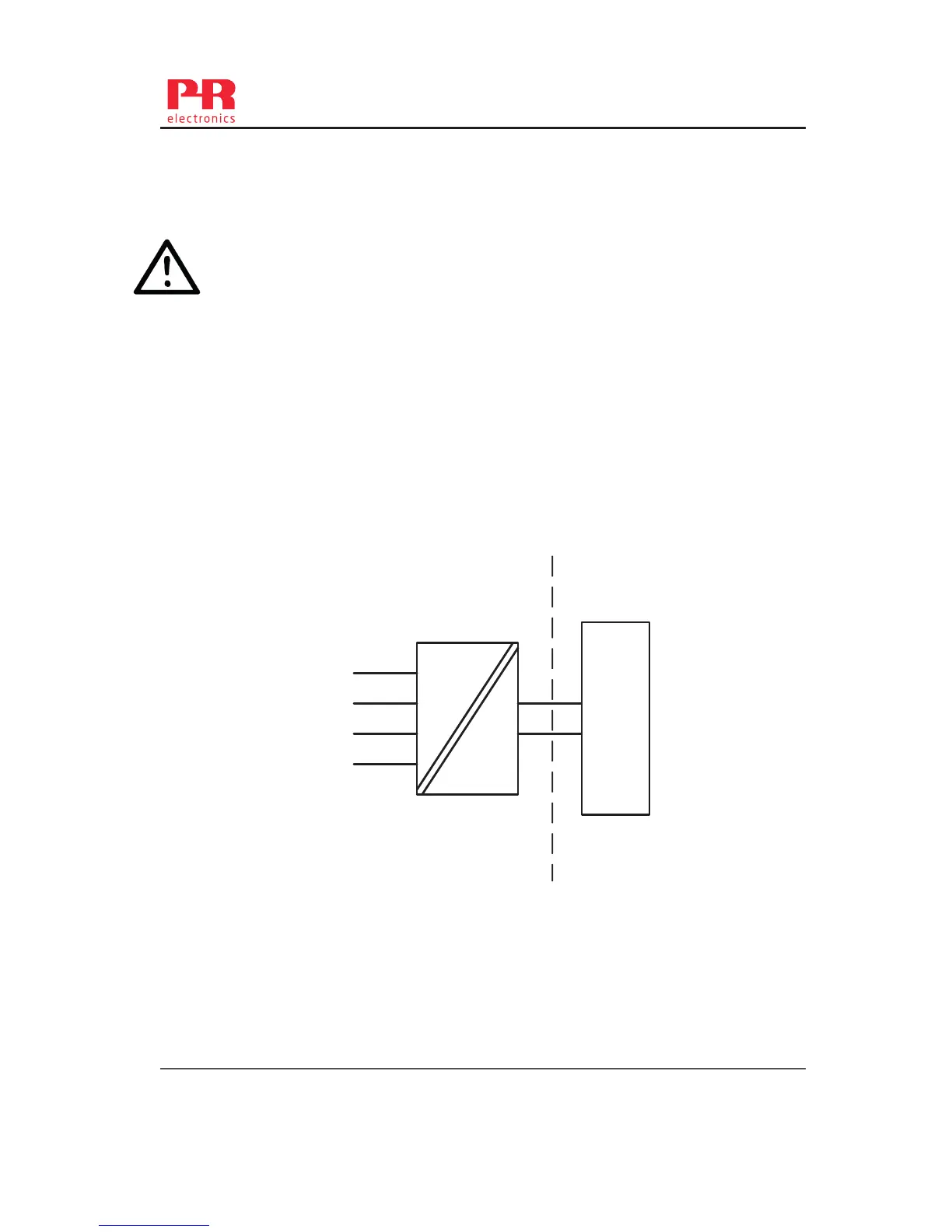

IECEx Installation drawing
For safe installation of 5333D or 5343B the following must be observed. The module shall only be
installed by qualified personnel who are familiar with the national and international laws, directives
and standards that apply to this area.
Year of manufacture can be taken from the first two digits in the serial number.
Certificate IECEx DEK 13.0036X
Marking
Standards IEC 60079-0 : 2011, IEC 60079-11 : 2011, IEC 60079-26:2006
Non Hazardous Area
Hazardous area
Zone 0, 1, 2, 20, 21, 22, M1
Ex ia IIC T4…T6 Ga
Ex ia IIIC Da
Ex ia I Ma
1
2
6
5
4
3
+
-
Barrier
5333D
5343B
Terminal: 1,2
Ui: 30 VDC
Ii: 120 mA
Pi: 0.84 W
Li: 10μH
Ci: 1.0nF
T4: -40 ≤ Ta ≤ 85ºC
T5: -40 ≤ Ta ≤ 60ºC
T6: -40 ≤ Ta ≤ 45ºC
Terminal: 3,4,6
Uo: 30 VDC
Io: 8 mA
Po: 60 mW
Lo: 35 mH
Co: 66 nF
16 5333V111-UK
