PR electronics 5333 - FM Installation Drawing; FM Parameters for Models 5331 C-5343 B; FM Parameters for Models 5335 C-5337 D

5335QE01
LERBAKKEN 10, 8410 RØNDE DENMARK. WWW.PRELECTRONICS.COM
Revision date:
2014-03-31
Version Revision
V4R0
Page:
5/9

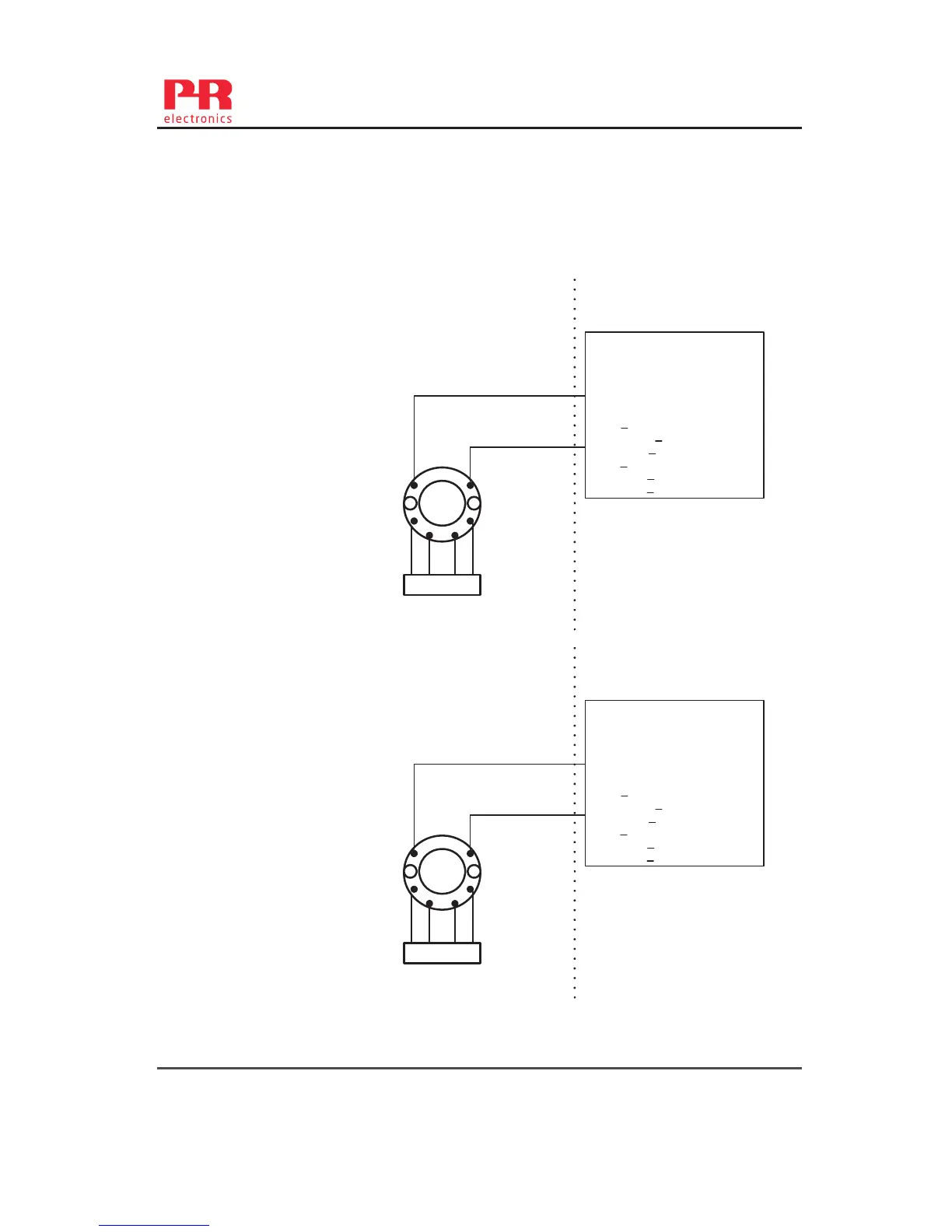

FM Installation Drawing 5300Q502 Rev AH
Model 5331C,5331D, 5333C, 5333D and 5343B
Model 5335C, 5335D, 5336D, 5337D
NonHazardousLocation
Hazardous(Classified)Location
Associated Apparatus
or Barrier
with
entity Parameters:
SENSOR
1
2
3
45
6
UM < 250V
Voc or Uo < Vmax or Ui
Isc or Io < Imax or Ii
Po < Pi
Ca or Co > Ci + Ccable
La or Lo > Li + Lcable
Thisdevicemustnotbeconnected
toanyassociatedapparatuswhich
usesorgeneratesmorethan250
VRMS
+
‐
Terminal 1 , 2
Vmax or Ui: 30 V
Imax or Ii: 120 mA
Pmax or Pi: 0.84 W
Ci: 1 nF
Li:10 uH
Terminal 3,4,5,6
Only passive, or non-energy
storing devices such as RTD's
and Thermocouples may be
connected.
Ambienttemperaturelimits
T4:‐40to+85deg.Celcius
T6:‐40to+60deg.Celcius
Class I,Division1, Groups, A,B,C,D
Class I, Zone 0, IIC
NonHazardousLocation
Hazardous(Classified)Location
Associated Apparatus
or Barrier
with
entity Parameters:
SENSOR
1
2
3
45
6
UM < 250V
Voc or Uo < Vmax or Ui
Isc or Io < Imax or Ii
Po < Pi
Ca or Co > Ci + Ccable
La or Lo > Li + Lcable
Thisdevicemustnotbeconnected
toanyassociatedapparatuswhich
usesorgeneratesmorethan250
VRMS
+
‐
Terminal 1 , 2
Vmax or Ui: 30 V
Imax or Ii: 120 mA
Pmax or Pi: 0.84 W
Ci: 1 nF
Li:10 uH
Terminal 3,4,5,6
Vt or Uo: 9.6 V
It or Io: 28 mA
Pt or Po: 67.2 mW
Ca or Co: 3.5 uF
La or Lo: 35 mH
Ambienttemperaturelimits
T4:‐40to+85deg.Celcius
T6:‐40to+60deg.Celcius
Class I,Division1, Groups, A,B,C,D
Class I, Zone 0, IIC
1/2
18 5333V111-UK
