PR electronics 9202 - Page 34

9202QU01
LERBAKKEN 10, 8410 RØNDE DENMARK
Revision date:
2019-11-26
Version Revision
V1 R0
Prepared by:
PB
Page:
5/5

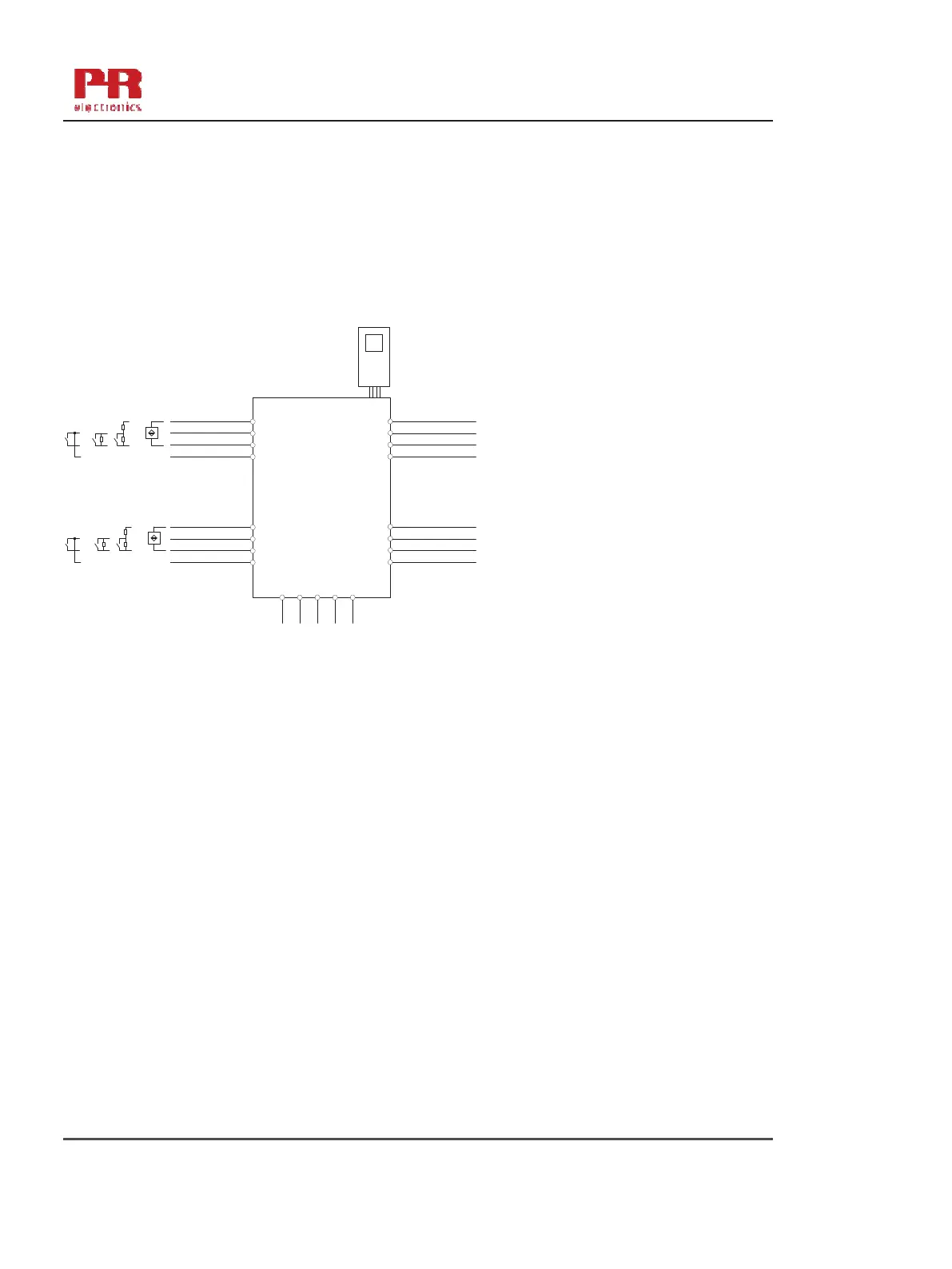

9202Axx and 9202Bxx Installation:
-20 ≤ Ta ≤ 60ºC
44
43
42
41
54
53
52
51
34
33
32
31
14
13
12
11
9202
4501
91 92 93 94 95
Power
Rail
CH1
CH2
+
-
+
-
NAMUR Sensor
Switch Switch w. Shunt Contact Sensor
Non Hazardous area or
Class I, Division 2, Group ABCD T4
or Zone 2 Group IIC T4
Supply
terminal (31,32)
Voltage: 19.2 – 31.2 VDC
Status relay, terminal (33,34)
Class I Division 2 or
Zone 2 installation:
Voltage max: 32 Vac/ 32 Vdc
Current max: 0.5 Aac / 0.3Adc
(terminal 11,12,13,14)
(terminal 31,32,33,34)
(terminal 91,92,93,94,95)
9202x1x
Terminal CH1(11,12) CH2(13,14)
Digital output: NPN output:
Voltage max. 30 VDC
Current max. 80 mA
9202x2x and 9202x3x
Terminal CH1(11,12) CH2(13,14)
Relay output: Class I Division 2
Zone 2 installation
Voltage max. 32 V AC / 30 VDC
Power max. 64 VA / 60 W
Current max. 2 AAC / 2 ADC
34 9202- Product version 9202-003
