Nova manual.doc
4/12

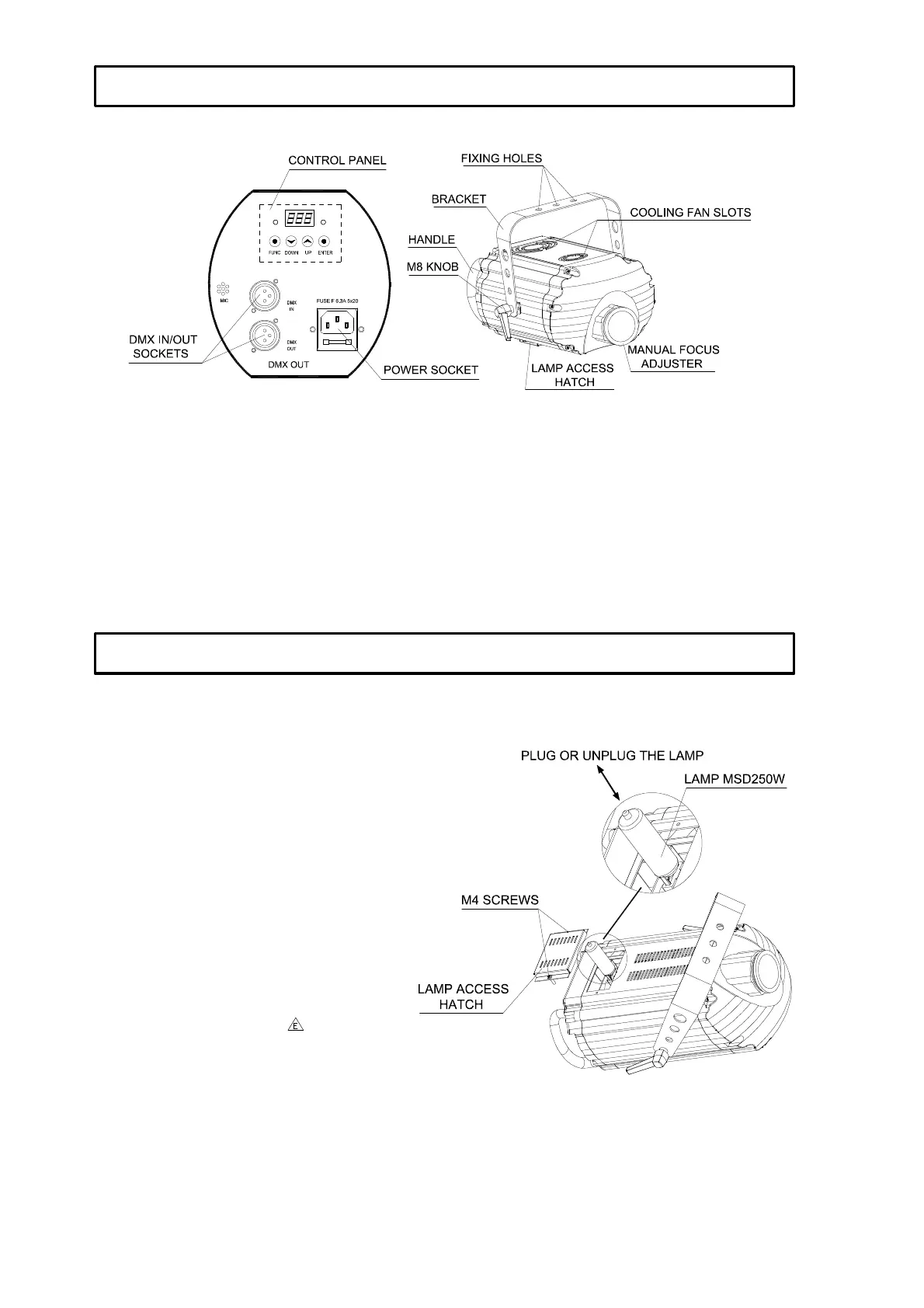

This unit has been designed to be hung. Mount the bracket provided on the body of the projector by 2
M8 knobs provided, then hang the projector via its bracket using a M12 size bolt and a nut. When
you want to adjust the angle of the body of the projector, you only loosen the two M6 knobs carefully
and then adjust the angle of the body. After finishing that, it is recommended that you don’t forget to
retighten the two knobs. Always ensure that the projector is firmly positioned to avoid vibration and
slipping, and always ensure that the structure to which you are attaching the projector is secure and
is able to support a weight of 9.8Kg for each NOVA.
For safety the unit should have a secondary fixing with a safety cable through the two handles on the
back of the unit, and the safety cable should afford 10 times of the unit’s weight.
Remove the lamp access hatch by loosening the 2 M4 screws.
Insert an MSD 250W lamp in the lamp
porcelain holder until the lamp is fully
seated. (Note: One plug on the lamp is
smaller than the other. And you can see
there is a red box marked on one socket of
the lamp-holder. When installing the lamp,
you should let the smaller plug of the lamp
align with the red marked socket of the
lamp-holder.)
Mount the lamp access hatch again.
Retighten the 2 M4 screws.
NOTE: The MSD series are high pressure
lamps with external igniters . Care should
always be taken when handling these
lamps. Always read the manufacturers
"Instructions for use" enclosed with the
lamp.
INSTALLING THE PROJECTOR
FITTING THE LAMP
