Nova manual.doc
6/12

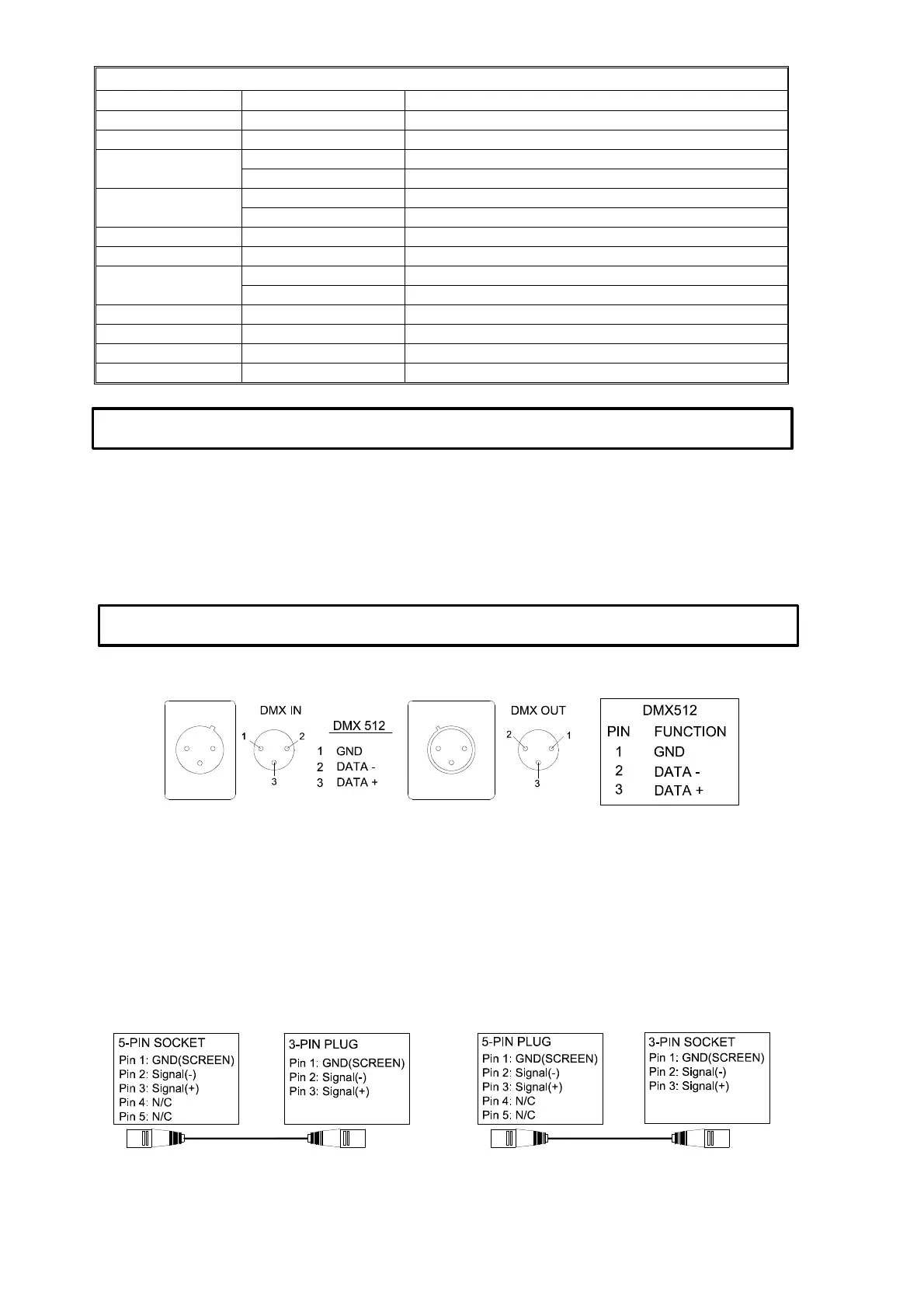

SETUP OPTIONS
CODE CHOICE FUNCTION
1 Not used
2 Not used
Y Sound activation enable
3
N Sound activation disable
Y Automatic programmes enable
4
N Automatic programmes disable
5 Not used
6 Not used
Y Reset enable
7
N Reset disable
8 Not used
9 Not used
A Not used
B Not used
Without connecting the controller and the control cable, with the setup option 3 (sound activation) or 4
(auto programmes) enable, the projector will run in Stand-Alone mode.
If you enable a combination of setup options 3 (sound activation) and 4 (auto programmes), the
projector will run in auto programmes.
You may set the DMX start address at random in Stand-Alone mode.
When sound activating, the red LED will flash according to the rhythm of the music. When auto
programmes running, the red LED is constantly on.
XLR CONNECTORS
Connection between controller and projector and between one projector and another must be made
with 2 core screened cable, with each core having at least a 0.5mm diameter. Connection to and
from the projector is via cannon 3 pin XLR plugs and sockets which are included with the projector.
The XLR's are connected as shown in the table above.
Note, care should be taken to ensure that none of the connections touch the body of the plug or each
other. The body of the plug is not connected in any way. The NOVA accepts digital control signals in
standard DMX512 (1990) format.
5-PIN AND 3-PIN CONVERSION
NOVA uses 3-pin XLR plug / socket. If your controller uses 5-pin XLR plug / socket, you should
convert 5-pin plug / socket into 3-pin socket / plug as shown below.
STAND-ALONE MODE
XLR CONNECTORS AND TERMINATOR
